WR-80SB Series
Manufacturer: JAE Electronics
Beta
⌘K

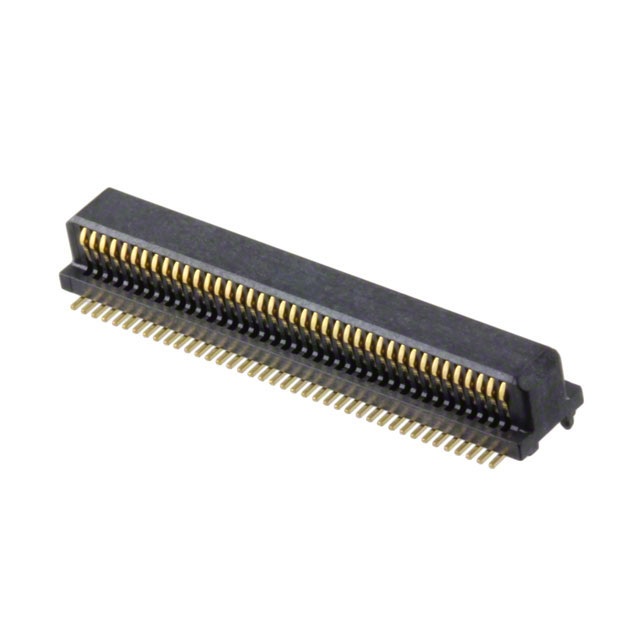

CONN RCPT 80POS SMD GOLD
| Part | Number of Positions | Mated Stacking Heights | Features | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Height Above Board | Height Above Board [z] | Pitch | Pitch | Connector Type | Number of Rows [custom] | Mounting Type | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 80 | 7 mm 8 mm 9 mm | Board Guide | Gold | 0.1 Ám | 4 Áin | 6.25 mm | 0.246 in | 0.02 " | 0.5 mm | Receptacle Center Strip Contacts | 2 | Surface Mount | |
 JAE Electronics | 80 | 4 mm 5 mm 6 mm | Board Guide | Gold | 0.1 Ám | 4 Áin | 3.25 mm | 0.02 " | 0.5 mm | Receptacle Center Strip Contacts | 2 | Surface Mount | 0.128 in | |
JAE Electronics | 80 | 4 mm 5 mm 6 mm | Board Guide | Gold | 0.1 Ám | 4 Áin | 3.25 mm | 0.02 " | 0.5 mm | Receptacle Center Strip Contacts | 2 | Surface Mount | 0.128 in | |
JAE Electronics | 80 | 7 mm 8 mm 9 mm | Board Guide | Gold | 0.1 Ám | 4 Áin | 6.25 mm | 0.246 in | 0.02 " | 0.5 mm | Receptacle Center Strip Contacts | 2 | Surface Mount |
