9S1224 Series

Catalog

FAN AXIAL 120X25MM 24VDC WIRE

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Blade	Material - Frame	RPM	Approval Agency	Static Pressure	Static Pressure	Fan Type	Termination	Voltage - Rated	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Features	Noise	Bearing Type	Width [y]	Air Flow	Air Flow
Sanyo Denki America Inc. 9S1224M4011	60 mA	14 VDC	26.4 VDC	40000 Hrs	Plastic	Plastic	1850 RPM	CSA TUV UL	0.09 in H2O	22.4 Pa	Tubeaxial	3 Wire Leads	24 VDC	1.44 W	70 °C	-10 °C	120 mm	120 mm	0.309 lb	140.16 g	Locked Rotor Protection Speed Sensor (Tach)	24 dB	Ball	25 mm	1.64 m³/min	58.6 CFM
Sanyo Denki America Inc. 9S1224M402	60 mA	14 VDC	26.4 VDC	40000 Hrs	Plastic	Plastic	1850 RPM	CSA TUV UL	0.09 in H2O	22.4 Pa	Tubeaxial	2 Wire Leads	24 VDC	1.44 W	70 °C	-10 °C	120 mm	120 mm	0.309 lb	140.16 g		24 dB	Ball	25 mm	1.64 m³/min	58.6 CFM

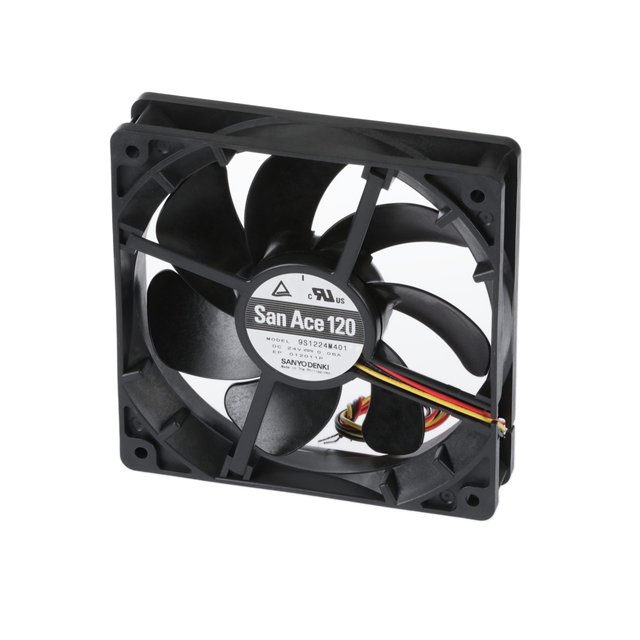

Sanyo Denki America Inc. 9S1224M401	60 mA	14 VDC	26.4 VDC	40000 Hrs	Plastic	Plastic	1850 RPM	CSA TUV UL	0.09 in H2O	22.4 Pa	Tubeaxial	3 Wire Leads	24 VDC	1.44 W	70 °C	-10 °C	120 mm	120 mm	0.309 lb	140.16 g	Locked Rotor Protection Speed Sensor (Tach)	24 dB	Ball	25 mm	1.64 m³/min	58.6 CFM
