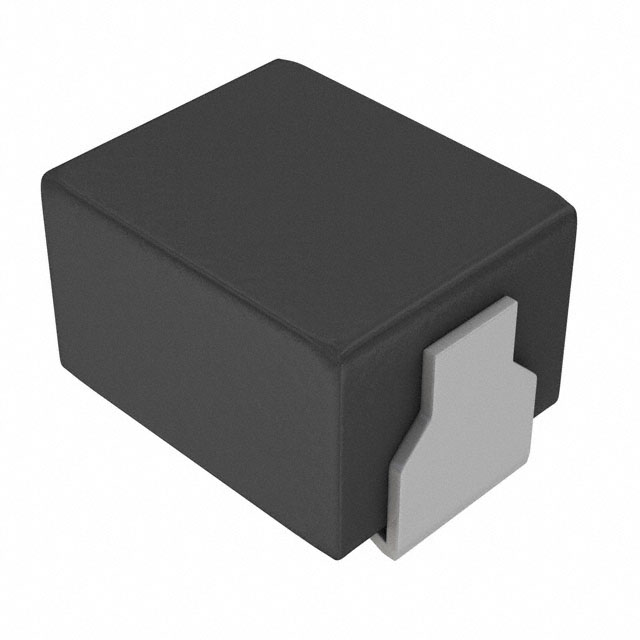

ELJ-NC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 56NH 200MA 630MOHM SMD

Part	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Mounting Type	Material - Core	Frequency - Self Resonant	Package / Case	Type	Supplier Device Package	Supplier Device Package	Tolerance	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Q @ Freq
Panasonic Industrial Automation Sales ELJ-NC56NJF	56 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C	630 mOhm	Surface Mount	Non-Magnetic	670 MHz	1008	Wirewound	2520	1008	5 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	0.2 A
Panasonic Industrial Automation Sales ELJ-NC10NKF	10 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C		Surface Mount	Non-Magnetic	2.5 GHz	1008	Wirewound	2520	1008	10 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	0.28 A	10 100 MHz
Panasonic Industrial Automation Sales ELJ-NC33NJF	33 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C	510 mOhm	Surface Mount	Non-Magnetic	1 GHz	1008	Wirewound	2520	1008	5 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	0.22 A
Panasonic Industrial Automation Sales ELJ-NC47NKF	47 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C	590 mOhm	Surface Mount	Non-Magnetic	770 MHz	1008	Wirewound	2520	1008	10 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	205 mA
Panasonic Industrial Automation Sales ELJ-NC15NKF	15 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C	380 mOhm	Surface Mount	Non-Magnetic	1.8 GHz	1008	Wirewound	2520	1008	10 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	0.255 A	10 100 MHz
Panasonic Industrial Automation Sales ELJ-NC33NKF	33 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C	510 mOhm	Surface Mount	Non-Magnetic	1 GHz	1008	Wirewound	2520	1008	10 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	0.22 A
Panasonic Industrial Automation Sales ELJ-NC22NKF	22 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C	430 mOhm	Surface Mount	Non-Magnetic	1.35 GHz	1008	Wirewound	2520	1008	10 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	0.24 A
Panasonic Industrial Automation Sales ELJ-NC47NJF	47 nH	0.071 "	1.8 mm	100 MHz	85 °C	-20 C	590 mOhm	Surface Mount	Non-Magnetic	770 MHz	1008	Wirewound	2520	1008	5 %	Unshielded	0.098 "	2 mm	2.5 mm	0.079 in	205 mA
