CINT1175 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

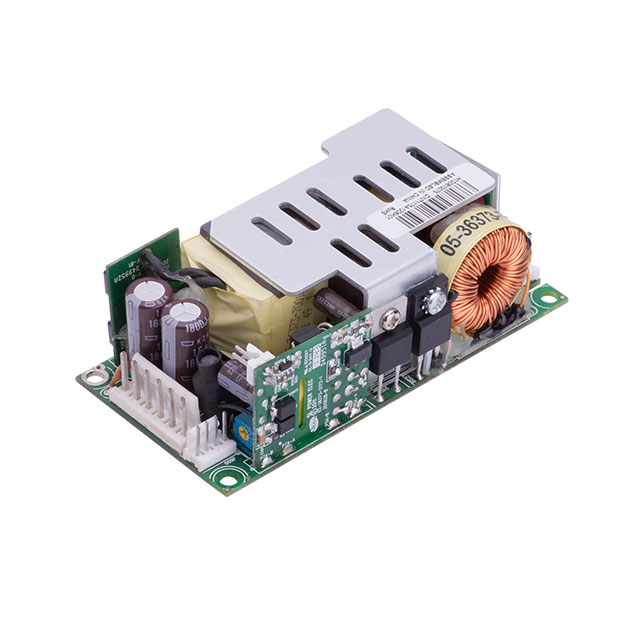

AC/DC CONVERTER 12V 120W

Part	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Power (Watts)	Power (Watts)	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Features	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Type	Approval Agency	Voltage - Output 1
SL POWER / Advanced Energy CINT1175A1206K01	90 %	70 °C	-10 °C	ITE (Commercial)	Chassis Mount	120 W	175 W	10 A	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Adjustable Output DC Input Capable Standby Output Universal Input	100 VAC	240 VAC	1	Open Frame	CE	12 V
SL POWER / Advanced Energy CINT1175A2406K01	90 %	70 °C	-10 °C	ITE (Commercial)	Chassis Mount	120 W	175 W	5 A	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Adjustable Output DC Input Capable Standby Output Universal Input	100 VAC	240 VAC	1	Open Frame	CE	24 V
SL POWER / Advanced Energy CINT1175A4806K01	90 %	70 °C	-10 °C	ITE (Commercial)	Chassis Mount	120 W	175 W	2.5 A	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Adjustable Output DC Input Capable Standby Output Universal Input	100 VAC	240 VAC	1	Open Frame	CE	48 V
SL POWER / Advanced Energy CINT1175A5606K01	90 %	70 °C	-10 °C	ITE (Commercial)	Chassis Mount	120 W	175 W	2.1 A	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Adjustable Output DC Input Capable Standby Output Universal Input	100 VAC	240 VAC	1	Open Frame	CE	56 V

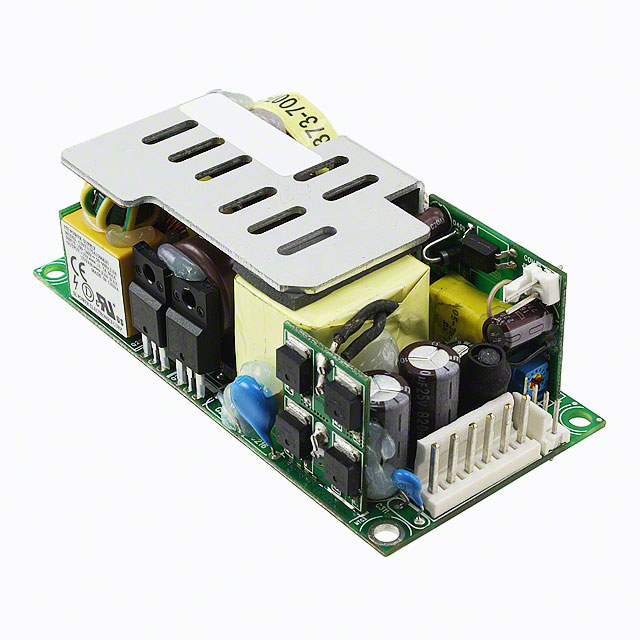

SL POWER / Advanced Energy CINT1175A1506K01	90 %	70 °C	-10 °C	ITE (Commercial)	Chassis Mount	120 W	175 W	8 A	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Adjustable Output DC Input Capable Standby Output Universal Input	100 VAC	240 VAC	1	Open Frame	CE	15 V
