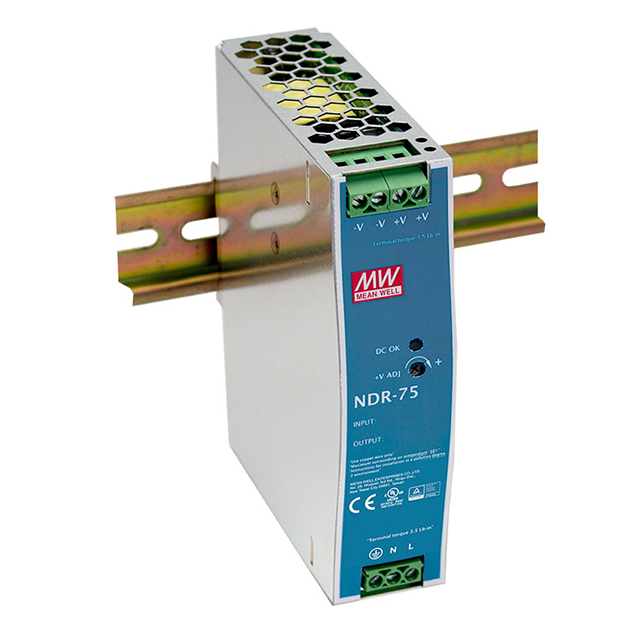

NDR-75 Series

Catalog

AC/DC DIN RAIL SUPPLY 24V 77W

Part	Current - Output (Max) [Max]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Min) [Min]	Approval Agency	Number of Outputs	Features	Voltage - Isolation	DC Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Power (Watts)	Applications	Voltage - Output 2	Standard Number
MEAN WELL USA Inc. NDR-75-24	3.2 A	AC or DC	70 °C	-20 °C	127 V	CB CE cULus TUV	1	Adjustable Output Universal Input	3000 V	370 V	88 %	24 V	90 VAC	264 VAC	77 W	Industrial ITE (Commercial)
MEAN WELL USA Inc. NDR-75-48	1.6 A	AC or DC	70 °C	-20 °C	127 V	CB CE cULus TUV	1	Adjustable Output Universal Input	3000 V	370 V	89 %	48 V	90 VAC	264 VAC	77 W	Industrial ITE (Commercial)
MEAN WELL USA Inc. NDR-75-12	6.3 A	AC or DC	70 °C	-20 °C	127 V	CB CE cULus EAC TUV UKCA	1	Adjustable Output DC Input Capable Universal Input	3000 V	370 V	85.5 %	12 V	90 VAC	264 VAC	76 W	Industrial ITE (Commercial)	12 V	62368-1 UL 508
