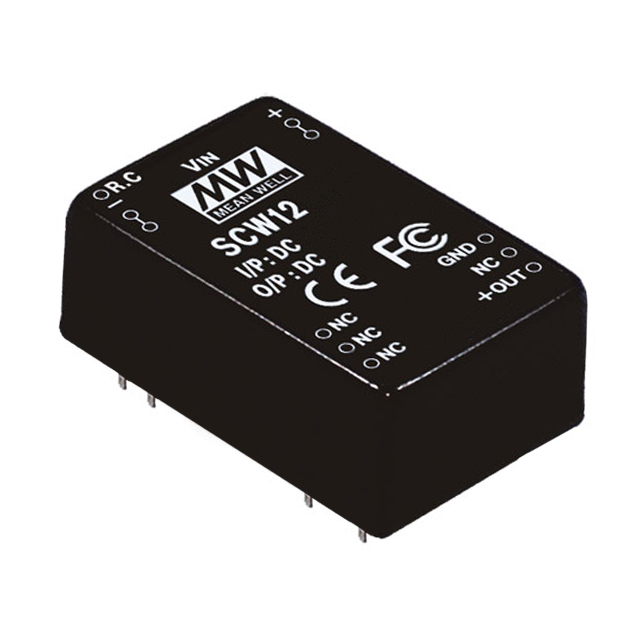

SCW12 Series

Catalog

DC DC CONVERTER 12V 12W

Part	Voltage - Output 1	Applications	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Features	Current - Output (Max) [Max]	Power (Watts)	Voltage - Isolation	Voltage - Input (Max) [Max]	Efficiency	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
MEAN WELL USA Inc. SCW12C-12	12 V	ITE (Commercial)	1	36 V	24-DIP Module 8 Leads	-25 °C	71 °C	Through Hole	Isolated Module	OCP Remote On/Off SCP	1 A	12 W	1.5 kV	72 V	83 %	Active High Enable	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. SCW12B-12	12 V	ITE (Commercial)	1	18 V	24-DIP Module 8 Leads	-25 °C	71 °C	Through Hole	Isolated Module	OCP Remote On/Off SCP	1 A	12 W	1.5 kV	36 V	83 %	Active High Enable	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. SCW12B-05	5 V	ITE (Commercial)	1	18 V	24-DIP Module 9 Leads	-25 °C	71 °C	Through Hole	Isolated Module	OCP Remote On/Off SCP	2.4 A	12 W	1.5 kV	36 V	83 %	Active High Enable	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. SCW12A-12	12 V	ITE (Commercial)	1	9 V	24-DIP Module 8 Leads	-25 °C	71 °C	Through Hole	Isolated Module	OCP Remote On/Off SCP	1 A	12 W	1.5 kV	18 V		Active High Enable	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
