1.14.002 Series

Manufacturer: RAFI USA

Catalog

SWITCH TACTILE SPST-NO 0.1A 35V

Part	Contact Rating @ Voltage	Termination Style	Actuator Height off PCB, Vertical [z]	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Actuator Type	Mounting Type	Actuator Orientation	Switch Function	Outline [y]	Outline [x]	Switch Travel	Circuit	Illumination	Actuator Height off PCB, Vertical	Features

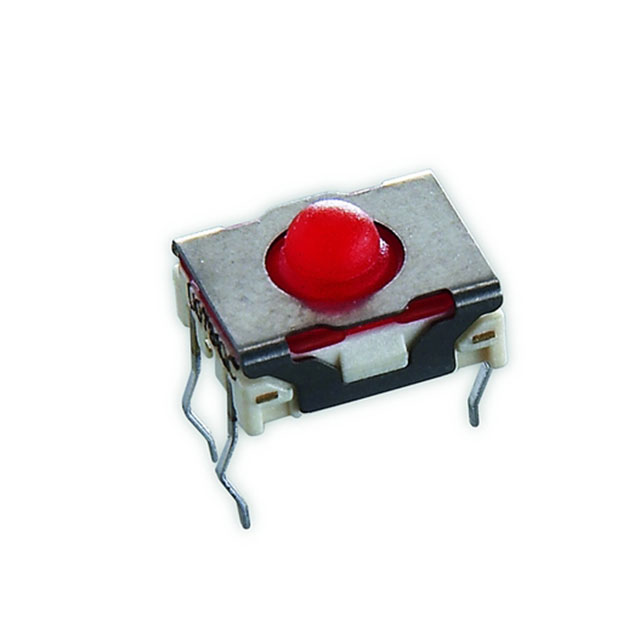

RAFI USA 1.14.002.301/0000	0.1 A 35 VAC/DC	PC Pin	3.85 mm	250000 Cycles	90 °C	-40 C	357 gf	Standard	Through Hole	Top Actuated	Off-Mom	5.1 mm	6.4 mm	0.85 mm	SPST-NO	Non-Illuminated
RAFI USA 1.14.002.106/0000	0.1 A 35 VAC/DC	PC Pin			85 °C	-40 C	300 gf	Standard	Through Hole	Top Actuated	Off-Mom	5.1 mm	6.4 mm		SPST-NO	Non-Illuminated	3.8 mm	Tactile Feedback
RAFI USA 1.14.002.301/0000	0.1 A 35 VAC/DC	PC Pin	3.85 mm		90 °C	-40 C	357 gf	Standard	Through Hole	Top Actuated	Off-Mom	5.1 mm	6.4 mm		SPST-NO	Non-Illuminated

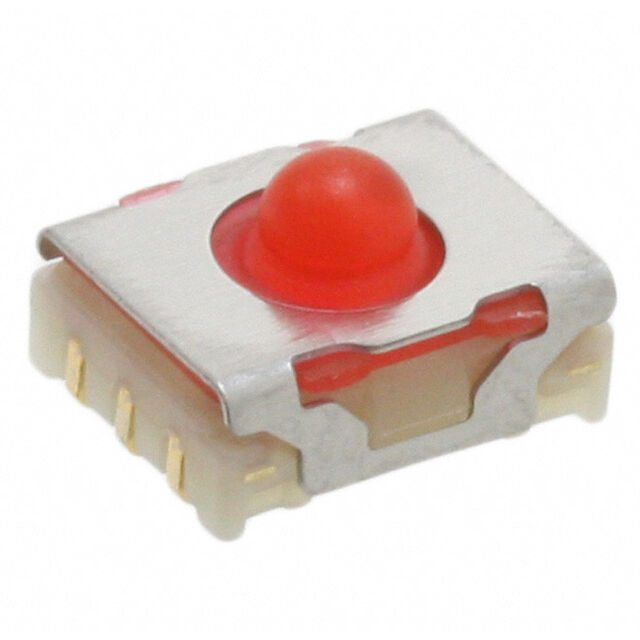

RAFI USA 1.14.002.111/0000	0.1 A 35 VAC/DC	J Lead	3.85 mm		85 °C	-40 C	550 gf	Standard	Surface Mount	Top Actuated	Off-Mom	5.1 mm	6.4 mm		SPST-NO	Non-Illuminated		Tactile Feedback
RAFI USA 1.14.002.201/0000	0.1 A 35 VAC/DC	J Lead	3.85 mm	1000000 Cycles	90 °C	-40 C	153 gf	Standard	Surface Mount	Top Actuated	Off-Mom	5.1 mm	6.4 mm	0.5 mm	SPST-NO	Non-Illuminated
RAFI USA 1.14.002.111/0000	0.1 A 35 VAC/DC	J Lead	3.85 mm	1000000 Cycles	85 °C	-40 C	550 gf	Standard	Surface Mount	Top Actuated	Off-Mom	5.1 mm	6.4 mm	0.9 mm	SPST-NO	Non-Illuminated		Tactile Feedback
RAFI USA 1.14.002.106/0000	0.1 A 35 VAC/DC	PC Pin		1000000 Cycles	85 °C	-40 C	300 gf	Standard	Through Hole	Top Actuated	Off-Mom	5.1 mm	6.4 mm	0.7 mm	SPST-NO	Non-Illuminated	3.8 mm	Tactile Feedback
RAFI USA 1.14.002.201/0000	0.1 A 35 VAC/DC	J Lead	3.85 mm		90 °C	-40 C	153 gf	Standard	Surface Mount	Top Actuated	Off-Mom	5.1 mm	6.4 mm		SPST-NO	Non-Illuminated
