345-038 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

...

Part	Number of Positions	Material - Insulation	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature	Card Type	Number of Positions/Bay/Row [custom]	Number of Rows	Termination Rows	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Color	Read Out	Termination	Features	Contact Material	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-038-541-578	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Wire Wrap	Card Guides	Copper Alloy
EDAC Inc. 345-038-523-878	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Solder	Card Guides	Copper Alloy

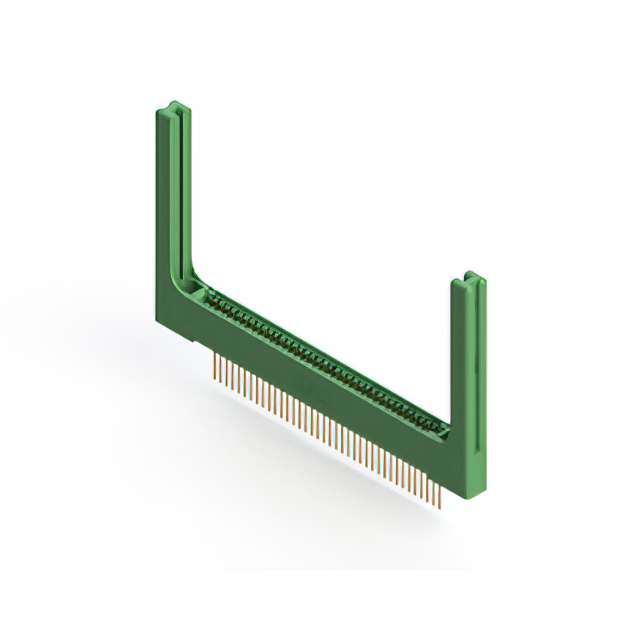

EDAC Inc. 345-038-542-158	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	38	1	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Single	Wire Wrap	Card Guides	Copper Alloy
EDAC Inc. 345-038-541-802	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole		Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Wire Wrap		Copper Alloy	3.25 mm	0.128 in
EDAC Inc. 345-038-542-103	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	Floating Bobbin Flush Mount	Non Specified - Single Edge	38	1	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Single	Wire Wrap		Copper Alloy			0.116 in	2.95 mm

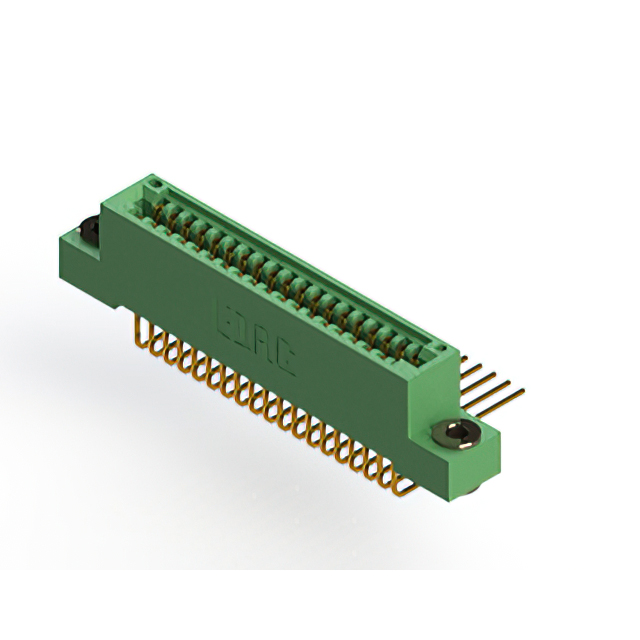

EDAC Inc. 345-038-558-203	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole Right Angle	Floating Bobbin Flush Mount	Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Solder		Copper Alloy			0.116 in	2.95 mm

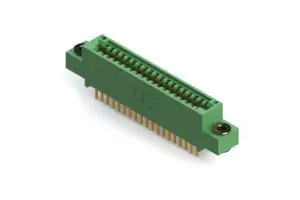

EDAC Inc. 345-038-523-503	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	Floating Bobbin Top Mount Opening	Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Solder		Copper Alloy			0.116 in	2.95 mm

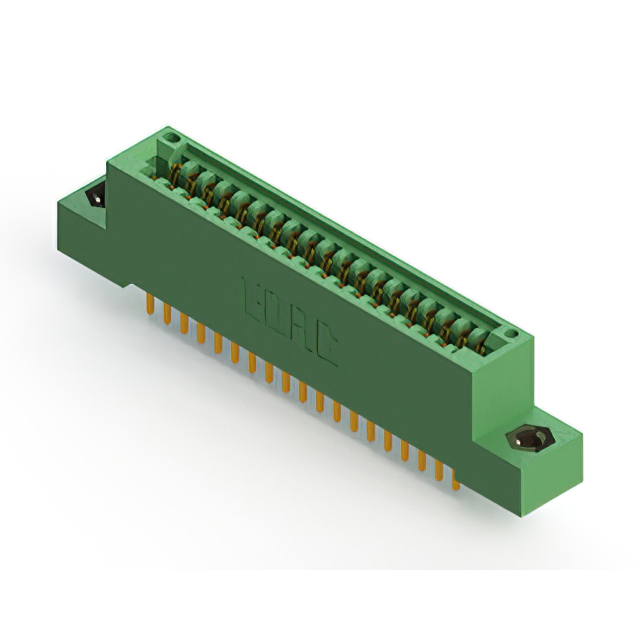

EDAC Inc. 345-038-521-208	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Solder		Copper Alloy

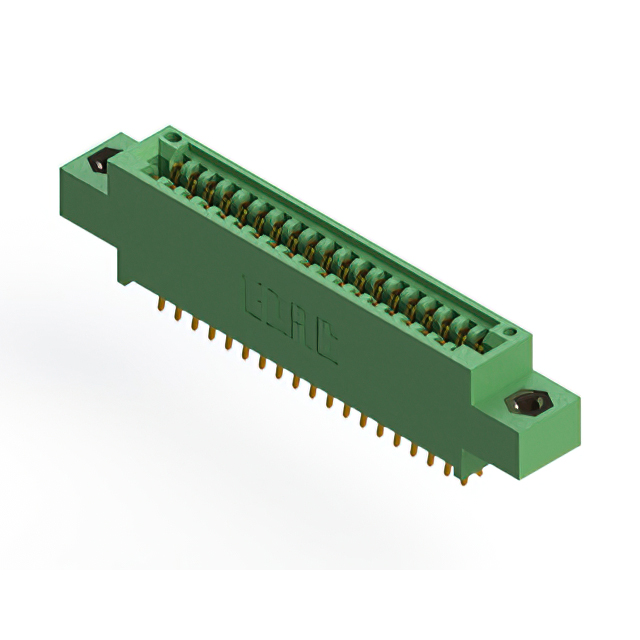

EDAC Inc. 345-038-556-808	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Board Edge Straddle Mount	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Solder	Card Extender	Copper Alloy

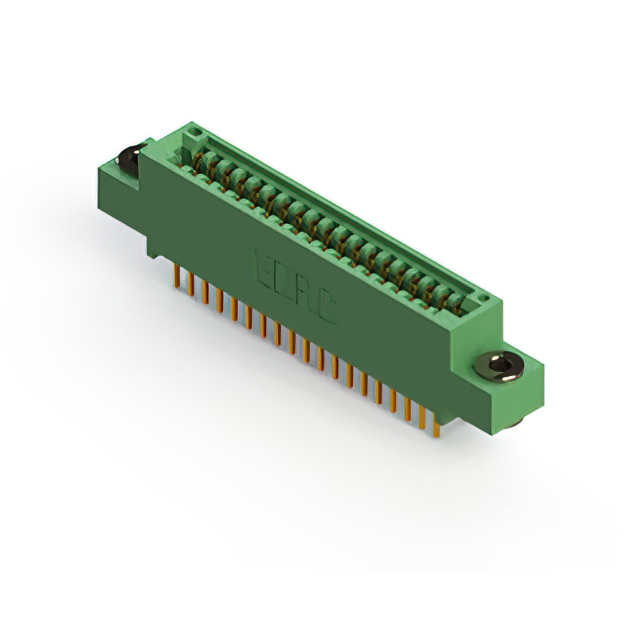

EDAC Inc. 345-038-540-503	38	Polyester Thermoplastic	Gold	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	Floating Bobbin Top Mount Opening	Non Specified - Dual Edge	19	2	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Cantilever	Green	Dual	Wire Wrap		Copper Alloy			0.116 in	2.95 mm
