845-039 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 39POS 0.100

...

Part	Material - Insulation	Termination Rows	Color	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Card Type	Mounting Type	Number of Positions	Pitch	Pitch	Termination	Contact Finish	Contact Material	Number of Rows	Contact Type	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

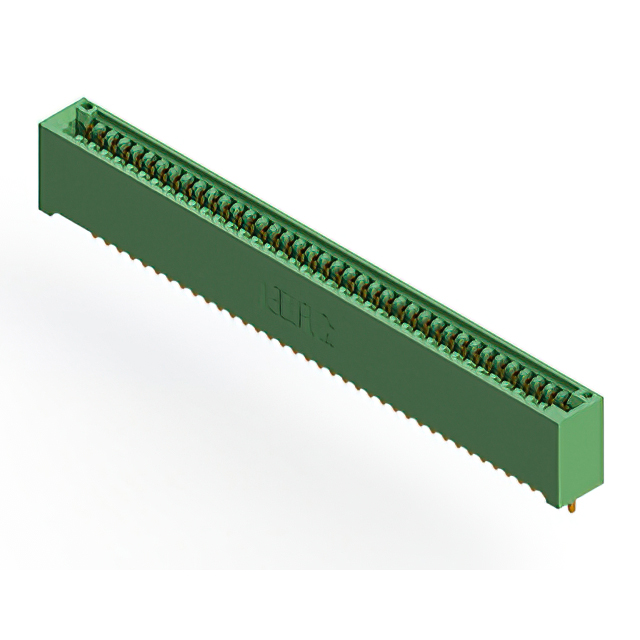

EDAC Inc. 845-039-500-101	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Solder Eyelet(s)	Gold	Copper Alloy	1	Cantilever	39
EDAC Inc. 845-039-523-107	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Solder	Gold	Copper Alloy	1	Cantilever	39	Flush Mount M3 Threaded Insert Top Opening

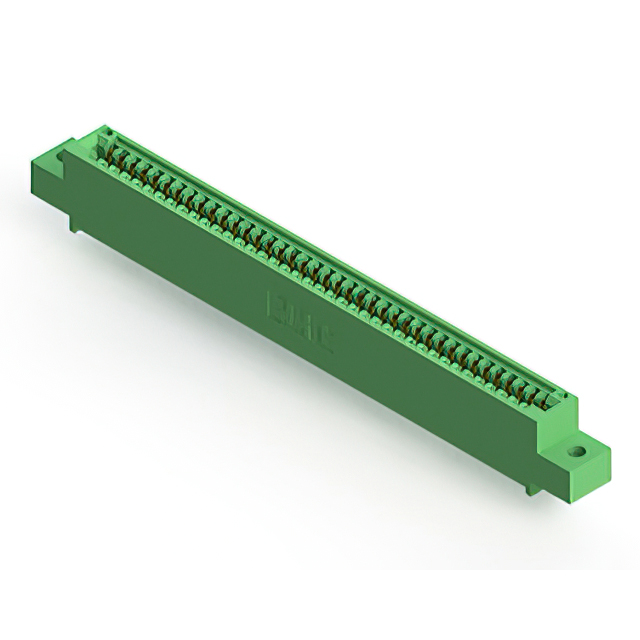

EDAC Inc. 845-039-525-402	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Solder	Gold	Copper Alloy	1	Cantilever	39		3.25 mm	0.128 "
EDAC Inc. 845-039-542-404	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Wire Wrap	Gold	Copper Alloy	1	Cantilever	39		3.96 mm	0.156 "

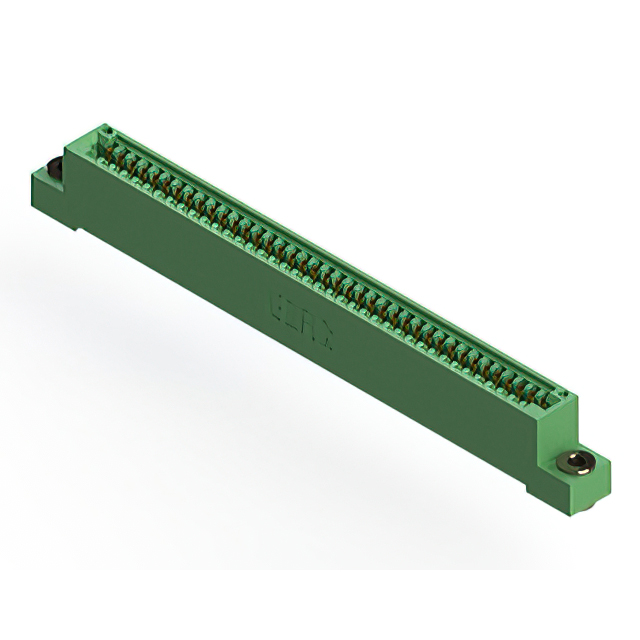

EDAC Inc. 845-039-524-103	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Solder	Gold	Copper Alloy	1	Cantilever	39	Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 845-039-542-107	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Wire Wrap	Gold	Copper Alloy	1	Cantilever	39	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 845-039-523-412	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Solder	Gold	Copper Alloy	1	Cantilever	39	Side Mount Opening Unthreaded	3.25 mm	0.128 "

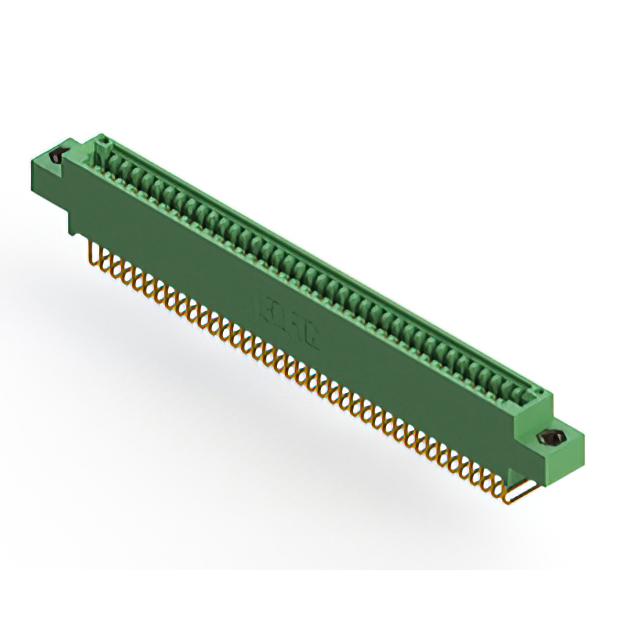

EDAC Inc. 845-039-558-607	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Right Angle Through Hole	39	0.1 "	2.54 mm	Solder	Gold	Copper Alloy	1	Cantilever	39	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-039-500-112	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Solder Eyelet(s)	Gold	Copper Alloy	1	Cantilever	39	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 845-039-500-603	Diallyl Phthalate (DAP)	1	Green	Single	125 °C	-40 C	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	39	0.1 "	2.54 mm	Solder Eyelet(s)	Gold	Copper Alloy	1	Cantilever	39	Floating Bobbin Top Mount Opening	2.95 mm	0.116 "
