WR-40P-V Series

Catalog

CONN PLUG 40POS SMD GOLD

Part	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Number of Positions	Pitch	Pitch	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board
JAE Electronics WR-40P-VF-N1-R1500	Gold	Surface Mount	0.1 Ám	4 Áin	0.118 in	3 mm	2	40	0.02 "	0.5 mm	4 mm 4.5 mm 7 mm	Plug Outer Shroud Contacts
JAE Electronics WR-40P-VF60-N1-R1200	Gold	Surface Mount	0.1 Ám	4 Áin			2	40	0.02 "	0.5 mm	6 mm 6.5 mm 9 mm	Plug Outer Shroud Contacts	5 mm	0.197 in
JAE Electronics WR-40P-VF50-N1-R1300	Gold	Surface Mount	0.1 Ám	4 Áin	0.157 in	4 mm	2	40	0.02 "	0.5 mm	5 mm 5.5 mm 8 mm	Plug Outer Shroud Contacts

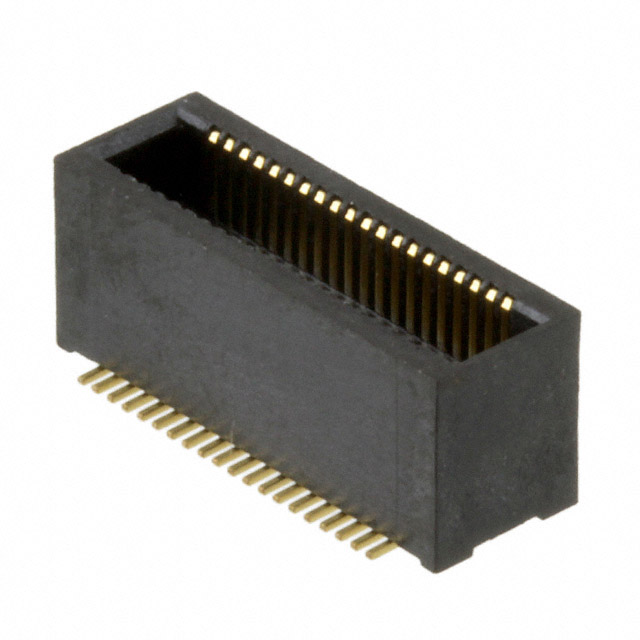

JAE Electronics WR-40P-VF60-N1	Gold	Surface Mount	0.1 Ám	4 Áin			2	40	0.02 "	0.5 mm	6 mm 6.5 mm 9 mm	Plug Outer Shroud Contacts	5 mm	0.197 in
JAE Electronics WR-40P-VF50-N1	Gold	Surface Mount	0.1 Ám	4 Áin	0.157 in	4 mm	2	40	0.02 "	0.5 mm	5 mm 5.5 mm 8 mm	Plug Outer Shroud Contacts
JAE Electronics WR-40P-VF-N1	Gold	Surface Mount	0.1 Ám	4 Áin	0.118 in	3 mm	2	40	0.02 "	0.5 mm	4 mm 4.5 mm 7 mm	Plug Outer Shroud Contacts
