HE-016 Series

Catalog

INSERT FEMALE 16POS SCREW

Part	Material Flammability Rating	Housing Material	Connector Type	Termination Style	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions	Voltage Rating
TE Connectivity AMP Connectors HE-016-F(17-32)	UL94 V-0	Polycarbonate (PC)	Insert	Screw	Female	125 °C	-40 C	16 A	16	500 V

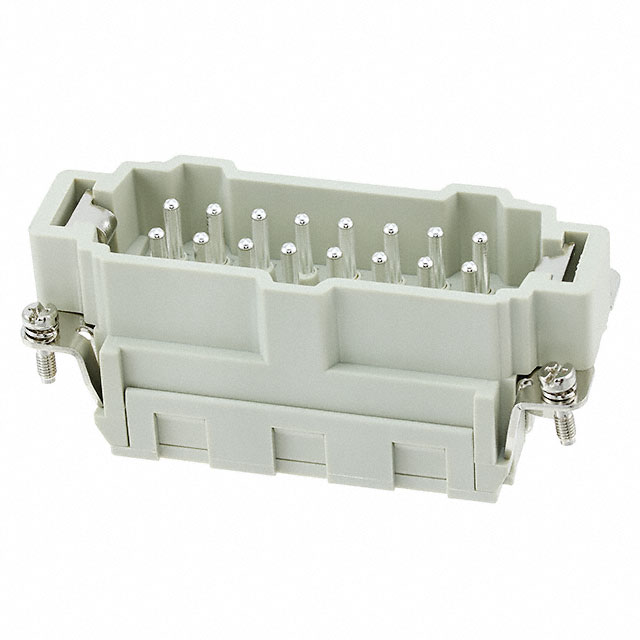

TE Connectivity AMP Connectors HE-016-MS(17-32)	UL94 V-0	Polycarbonate (PC)	Insert	Tension Clamp	Male	125 °C	-40 C	16 A	16	500 V

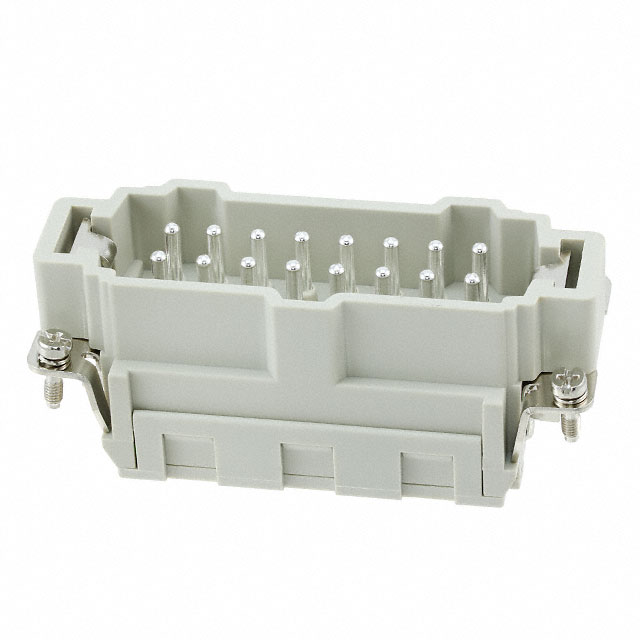

TE Connectivity AMP Connectors HE-016-MS	UL94 V-0	Polycarbonate (PC)	Insert	Tension Clamp	Male	125 °C	-40 C	16 A	16	500 V

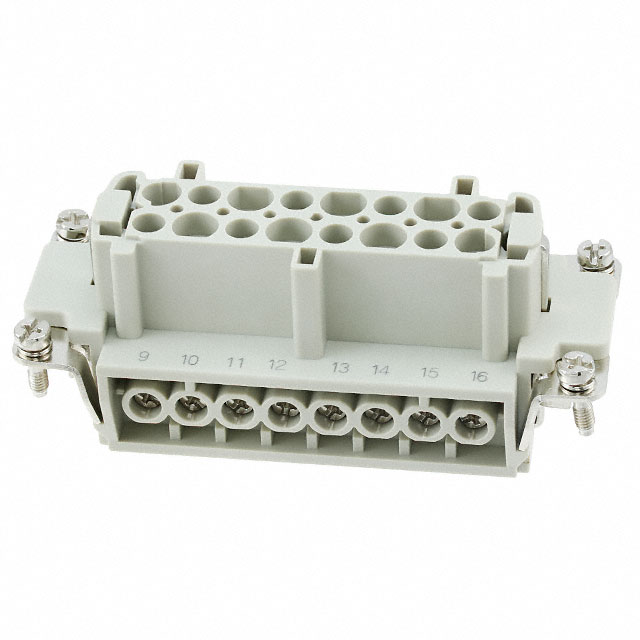

TE Connectivity AMP Connectors HE-016-F	UL94 V-0	Polycarbonate (PC)	Insert	Screw	Female	125 °C	-40 C	16 A	16	500 V
