053 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 5.62"L X 3.25"W

Part	Weight [custom]	Weight [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Container Type	Color	Material	Height [z]	Height [z]	Ratings	Material Flammability Rating	Area (L x W)	Area (L x W)	Design	Thickness	Thickness

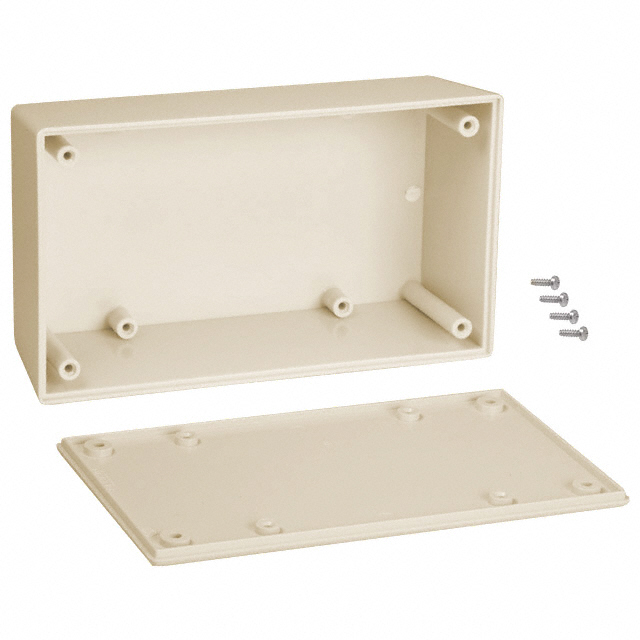

Serpac 053,AL	0.231 lb	104.78 g	5.62 "	142.75 mm	82.55 mm	3.25 "	PCB Supports	Box	Almond	ABS Plastic	1.9 in	48.26 mm	IP40 NEMA 1	UL94 HB	18.3 in²	118 cm²	Cover Included Hand Held	2.54 mm	0.1 in

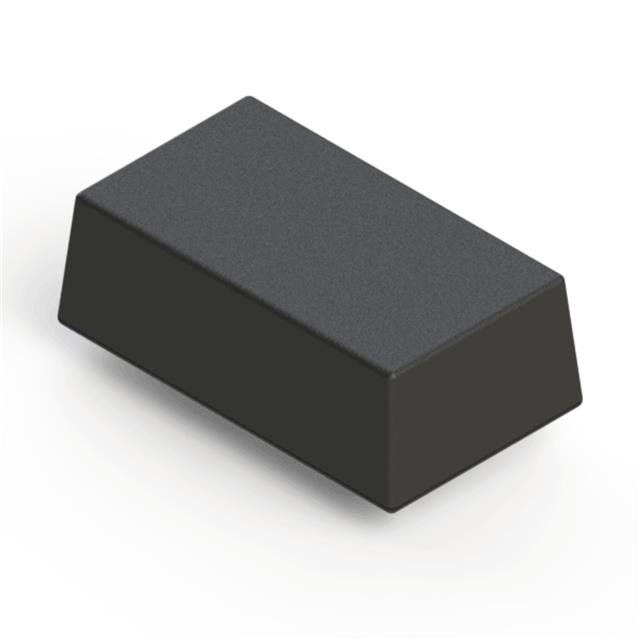

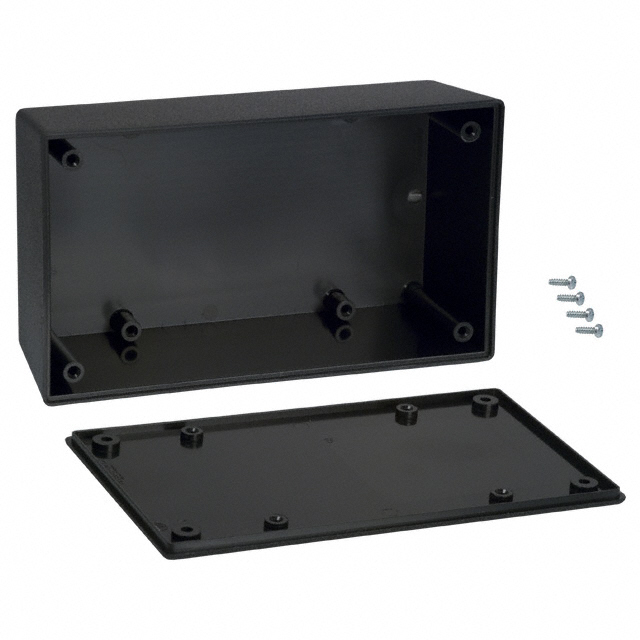

Serpac 053,BK	0.231 lb	104.78 g	5.62 "	142.75 mm	82.55 mm	3.25 "	PCB Supports	Box	Black	ABS Plastic	1.9 in	48.26 mm	IP40 NEMA 1	UL94 HB	18.3 in²	118 cm²	Cover Included Hand Held	2.54 mm	0.1 in

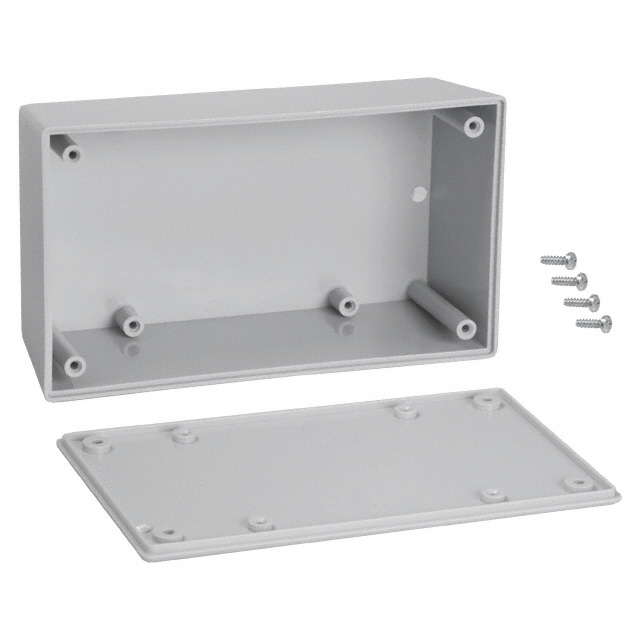

Serpac 053,GY	0.231 lb	104.78 g	5.62 "	142.75 mm	82.55 mm	3.25 "	PCB Supports	Box	Gray	ABS Plastic	1.9 in	48.26 mm	IP40 NEMA 1	UL94 HB	18.3 in²	118 cm²	Cover Included Hand Held	2.54 mm	0.1 in
