NSCSHNN Series

Catalog

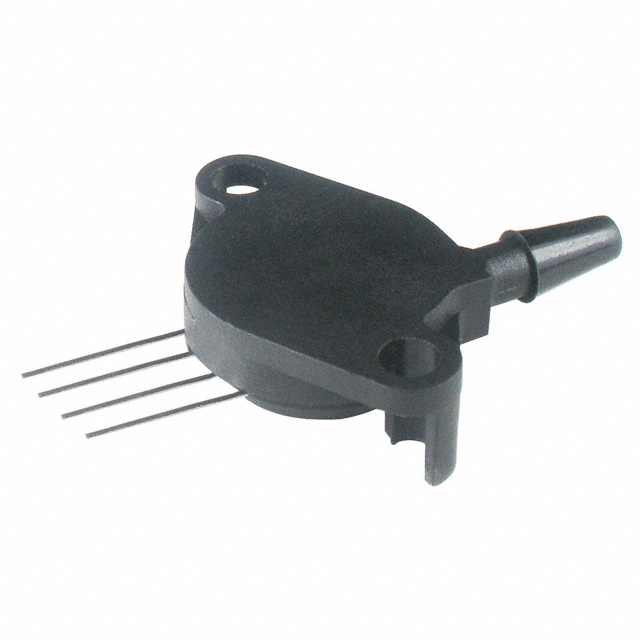

SENSOR 100PSIA 0.19" .063V

Part	Applications	Port Size	Accuracy	Port Style	Termination Style	Output [Min]	Output [Max]	Package / Case	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure	Operating Pressure	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Honeywell Sensing and Productivity Solutions NSCSHNN100PAUNV	Board Mount	4.78 mm 4.826 mm	0.25 %	Barbed	PC Pin	0 mV	63 mV	4-SIP Side Port	Wheatstone Bridge	250 PSI	1723.69 kPa	12 V	1.5 V	689.48 kPa	100 PSI	Through Hole	85 °C	-40 °C
