MN22TX Series

Catalog

SWITCH ROCKER MINI MULT FUNCTION

Part	Mechanical Life	Electrical Life	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Actuator Marking	Termination Style	Circuit	Current Rating (Amps)	Switch Function	Color - Actuator/Cap
NKK Switches MN22TXG15/108	50000 Cycles	50000 Cycles	Through Hole	85 °C	-30 ░C	UL	28 V	Actuator Arm Cap Required	28 V	Varies by Cap	PC Pin	DPDT	0.4 VA	On-On

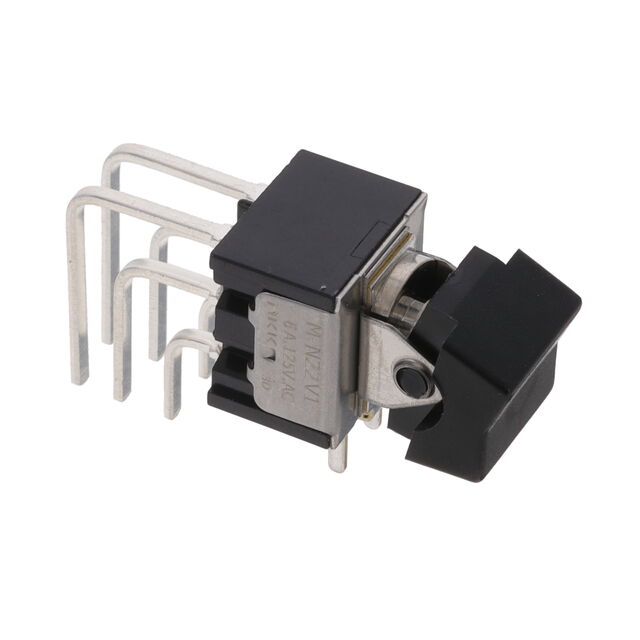

NKK Switches MN22TXW41-FA	50000 Cycles	25000 Steps	Right Angle Through Hole Vertical	85 °C	-30 ░C	UL	30 V	Concave	125 V	No Marking	PC Pin	DPDT	4 A 6 A	On-On	Black
NKK Switches MN22TXG13-DC	50000 Cycles	50000 Cycles	Through Hole	85 °C	-30 ░C	UL	28 V	Concave	28 V	No Marking	PC Pin	DPDT	0.4 VA	On-On	Red
NKK Switches MN22TXW13-FA	50000 Cycles	25000 Steps	Through Hole	85 °C	-30 ░C	UL	30 V	Concave	125 V	No Marking	PC Pin	DPDT	4 A 6 A	On-On	Black
NKK Switches MN22TXW30-EA	50000 Cycles	25000 Steps	Right Angle Through Hole	85 °C	-30 ░C	UL	30 V	Paddle	125 V	No Marking	PC Pin	DPDT	4 A 6 A	On-On	Black
NKK Switches MN22TXG13-EA	50000 Cycles	50000 Cycles	Through Hole	85 °C	-30 ░C	UL	28 V	Paddle	28 V	No Marking	PC Pin	DPDT	0.4 VA	On-On	Black
NKK Switches MN22TXW13-DA	50000 Cycles	25000 Steps	Through Hole	85 °C	-30 ░C	UL	30 V	Concave	125 V	No Marking	PC Pin	DPDT	4 A 6 A	On-On	Black
NKK Switches MN22TXW41	50000 Cycles	25000 Steps	Right Angle Through Hole Vertical	85 °C	-30 ░C	UL	30 V	Actuator Arm Cap Required	125 V	Varies by Cap	PC Pin	DPDT	4 A 6 A	On-On

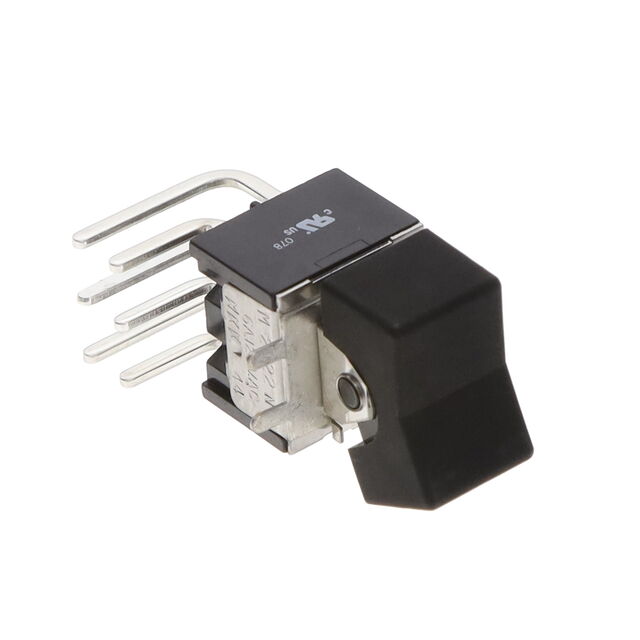

NKK Switches MN22TXW30-DA	50000 Cycles	25000 Steps	Right Angle Through Hole	85 °C	-30 ░C	UL	30 V	Concave	125 V	No Marking	PC Pin	DPDT	4 A 6 A	On-On	Black
NKK Switches MN22TXW41-DC	50000 Cycles	25000 Steps	Right Angle Through Hole Vertical	85 °C	-30 ░C	UL	30 V	Concave	125 V	No Marking	PC Pin	DPDT	4 A 6 A	On-On	Red
