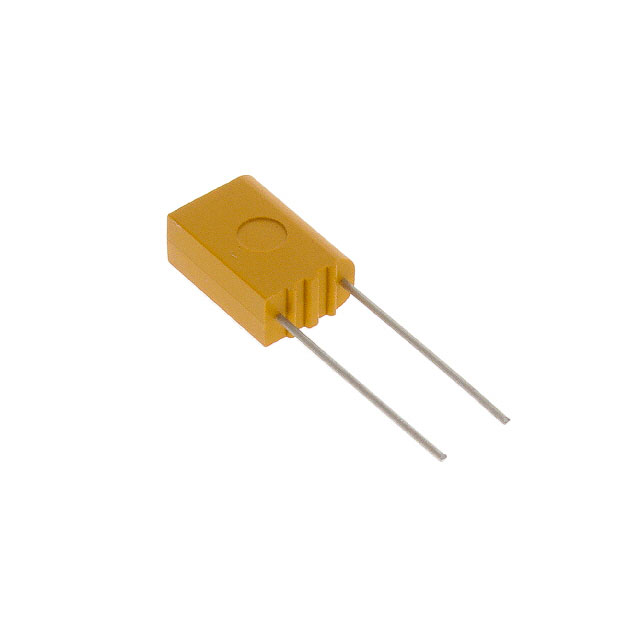

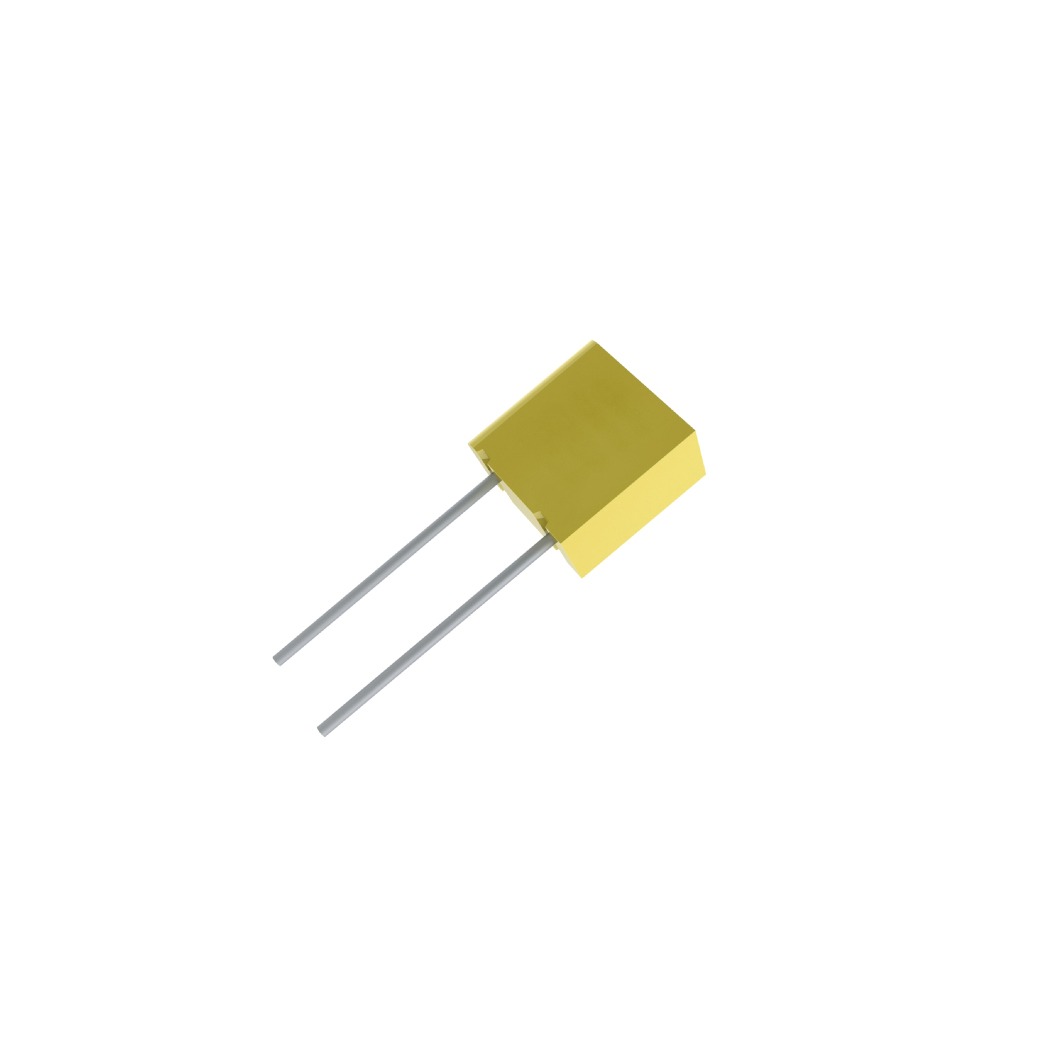

T340C Series

Manufacturer: KEMET

Catalog

CAPACITOR,5.6UF,50VDC,10-% TOL,10+% TOL ROHS COMPLIANT: NO

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Voltage - Rated	Capacitance	Features	ESR (Equivalent Series Resistance)
KEMET T340C565K050AS	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	10 %	50 VDC	5.6 µF	General Purpose
KEMET T340C475K035AS	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	10 %	35 V	4.7 µF	General Purpose	3 Ohm
KEMET T340C226M016AS	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	20 %	16 V	22 µF	General Purpose
KEMET T340C155M050AT	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	20 %	50 VDC	1500 nF	General Purpose	5 Ohm
KEMET T340C335M040AT	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	20 %	40 V	3.3 µF	General Purpose
KEMET T340C226M016AT	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	20 %	16 V	22 µF	General Purpose
KEMET T340C336K015AT	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	10 %	15 V	33 ÁF	General Purpose	1.6 Ohm
KEMET T340C106K025AT	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	10 %	25 VDC	10 µF	General Purpose	2.5 Ohm
KEMET T340C106K035AS	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	10 %	35 V	10 µF	General Purpose	2000 mOhm
KEMET T340C685M035AS	-55 C	125 °C	Through Hole	Radial	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	0.197 "	5 mm	0.413 "	10.5 mm	20 %	35 V	6.8 µF	General Purpose	2.5 Ohm
