MXC7-PW Series

Manufacturer: Lumileds

Catalog

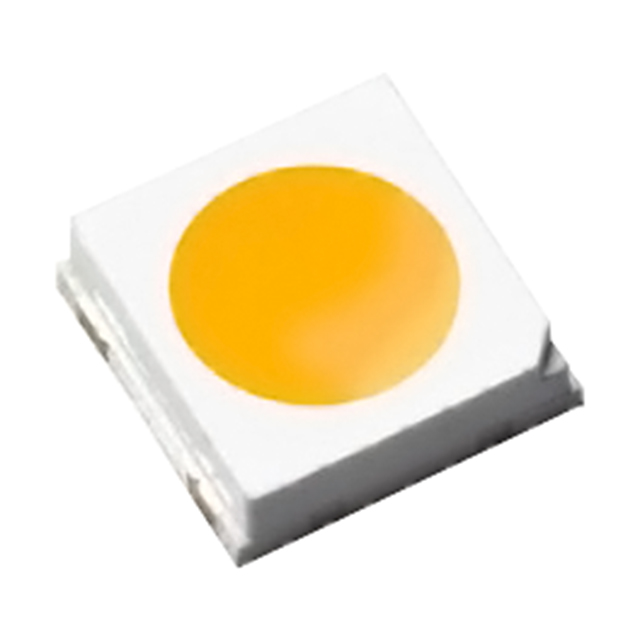

LED LUXEON COOL WHITE 6500K 2SMD

Part	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Flux @ 25°C, Current - Test	Supplier Device Package	Current - Max [Max]	Mounting Type	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Viewing Angle	Current - Test	Lumens/Watt @ Current - Test
Lumileds MXC7-PW65-0000	18 °C/W	6.1 V	70	1414 (3535 Metric)	Cool White	3.4 mm	0.138 in	3.5 mm	0.134 in	77 lm	3535	200 mA	Surface Mount	6500 K	0.035 in	0.9 mm	115 °	100 mA	126 lm/W
Lumileds MXC7-PW57-0000	18 °C/W	6.1 V	70	1414 (3535 Metric)	Cool White	3.4 mm	0.138 in	3.5 mm	0.134 in	77 lm	3535	200 mA	Surface Mount	5700 K	0.035 in	0.9 mm	115 °	100 mA	126 lm/W
Lumileds MXC7-PW50-0000	18 °C/W	6.1 V	70	1414 (3535 Metric)	Cool White	3.4 mm	0.138 in	3.5 mm	0.134 in	77 lm	3535	200 mA	Surface Mount	5000 K	0.035 in	0.9 mm	115 °	100 mA	126 lm/W
