8059 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

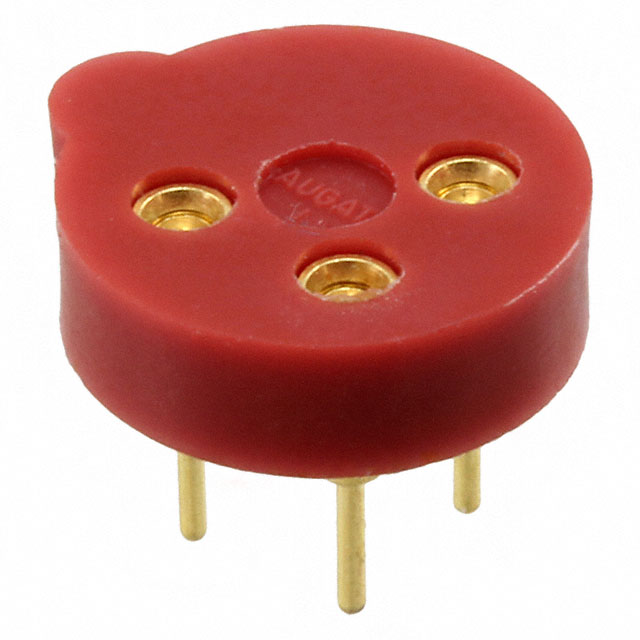

CONN TRANSIST TO-5 3POS GOLD
| Part | Termination Post Length [x] | Termination Post Length [x] | Contact Resistance | Current Rating (Amps) | Contact Finish - Mating | Type | Mounting Type | Contact Material - Post [custom] | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Number of Positions or Pins (Grid) | Termination | Contact Material - Mating | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.115 in | 2.92 mm | 20 mOhm | 3 A | Gold | Transistor TO-5 | Through Hole | Copper Alloy | Polyamide (PA) Nylon | -55 C | 125 °C | Gold | 3 | Solder | Copper Alloy | ||
 TE Connectivity AMP Connectors | 0.115 in | 2.92 mm | 20 mOhm | Gold | Transistor TO-5 | Through Hole | Copper Alloy | Polyamide (PA) Nylon | -55 C | 125 °C | Gold | 8 | Solder | Copper Alloy | UL94 V-0 | Closed Frame |
