76383 Series

Catalog

CONN HEADER R/A 50POS 2.54MM

Part	Number of Rows	Contact Material	Number of Positions Loaded	Insulation Color	Style	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Fastening Type	Contact Finish - Mating
Amphenol ICC (FCI) 76383-425LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall	3 A	50	78.7 µin	2 µm	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock
Amphenol ICC (FCI) 76383-332LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall	3 A	64	30 Áin	0.76 Ám	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock	Gold GXT™
Amphenol ICC (FCI) 76383-322LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall	3 A	44	30 Áin	0.76 Ám	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock	Gold GXT™
Amphenol ICC (FCI) 76383-436LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall		72	78.7 µin	2 µm	0.197 in	5 mm	Header	Square			Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock

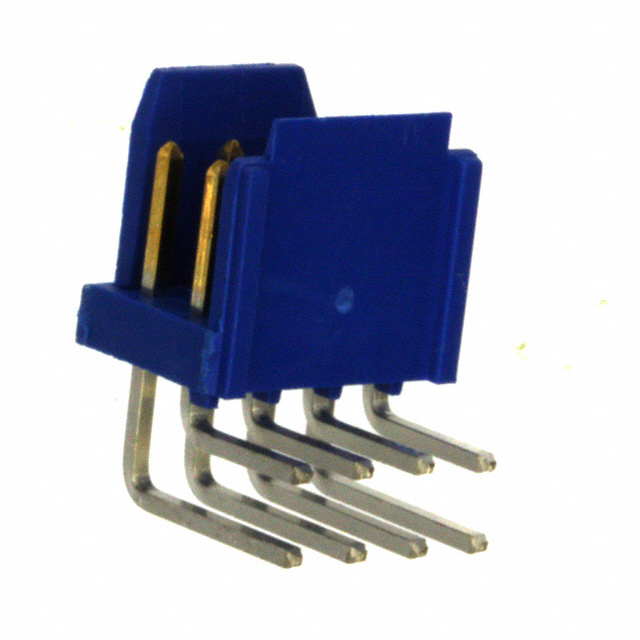

Amphenol ICC (FCI) 76383-304LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall	3 A	8	30 Áin	0.76 Ám	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock	Gold GXT™

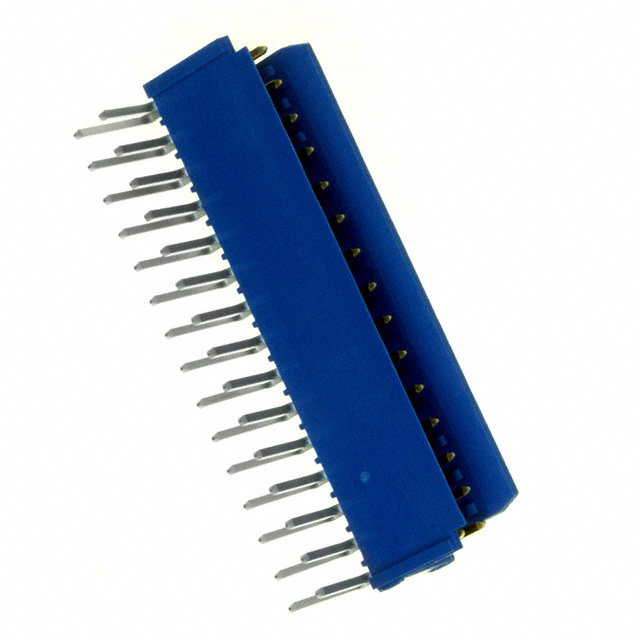

Amphenol ICC (FCI) 76383-315LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall	3 A	30	30 Áin	0.76 Ám	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock	Gold GXT™
Amphenol ICC (FCI) 76383-310	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	3.81 Ám	150 Áin	Shrouded - 2 Wall	3 A	20	30 Áin	0.76 Ám	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin-Lead	Friction Lock	Gold GXT™
Amphenol ICC (FCI) 76383-305	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	3.81 Ám	150 Áin	Shrouded - 2 Wall	3 A	10	30 Áin	0.76 Ám	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin-Lead	Friction Lock	Gold GXT™

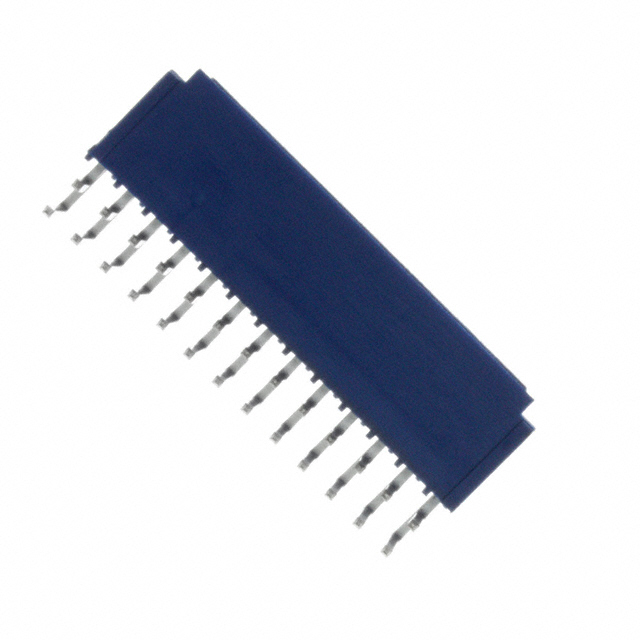

Amphenol ICC (FCI) 76383-413LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall	3 A	26	78.7 µin	2 µm	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock

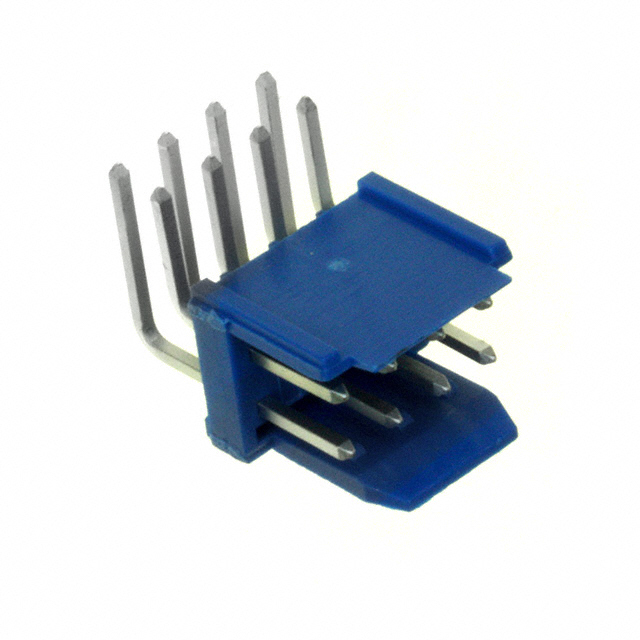

Amphenol ICC (FCI) 76383-404LF	2	Phosphor Bronze	All	Blue	Board to Cable/Wire	Through Hole Right Angle	2 çm	78.7 çin	Shrouded - 2 Wall	3 A	8	78.7 µin	2 µm	0.197 in	5 mm	Header	Square	125 °C	-40 °C	Solder	Polyester Glass Filled	0.1 in	2.54 mm	UL94 V-0	Male Pin	3.91 mm	0.154 in	2.54 mm	0.1 in	Tin	Friction Lock
