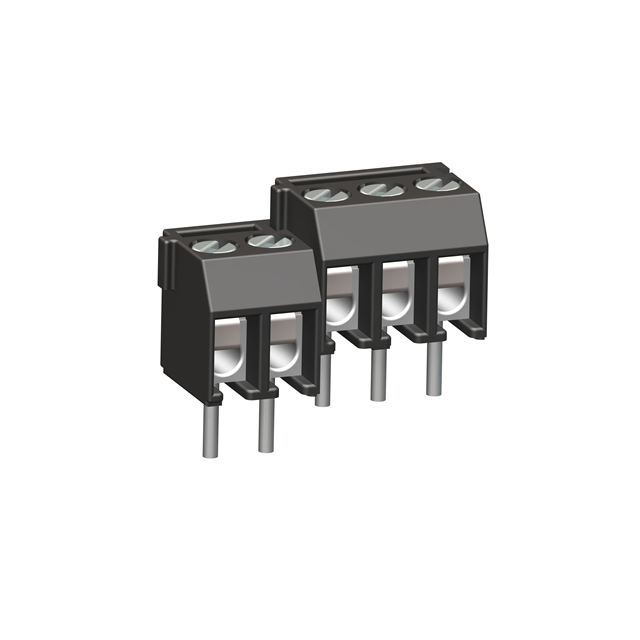

930-T-DS Series
Manufacturer: WECO Electrical Connectors Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
TERMINAL BLOCK CONNECTOR PCB SCR
| Part | Clamp Material - Plating | Plating | Contact Material | Housing Material | Screw Thread | Screw Plating | Screw Material | Torque - Screw | Operating Temperature (Min) | Operating Temperature (Max) | Features | Positions Per Level | Number of Levels | Color | Wire Termination | Current | Pitch | Mounting Type | Voltage | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WECO Electrical Connectors Inc. | Nickel Plated | Tin Plated | Copper Alloy | Nylon PA Polyamide | M2 | Zinc Plated | Steel | 0.23 Nm | -40 °C | 105 °C | Interlocking (Side) | 3 | 1 | Gray | Leaf Spring Screw Wire Guard | 10 A | 0.138 in | Through Hole | 300 V | 26 AWG | 16 AWG | Horizontal with Board |
