0364-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Termination
Mill-Max Manufacturing Corp. 0364-0-15-15-13-14-10-0	-55 C	125 °C	2.54 mm	0.1 in	0.12 in	3.05 mm	Beryllium Copper	No Tail	0.25 Ám	10 Áin	4.57 mm	0.18 in	1.22 mm	0.064 in	0.048 in	1.63 mm	2.24 mm	0.088 "	Gold	0.213 in	5.41 mm	Solder

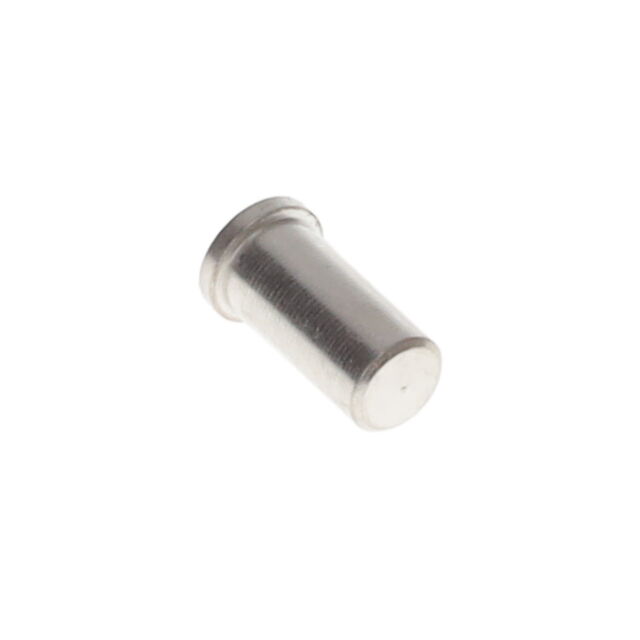

Mill-Max Manufacturing Corp. 0364-0-15-80-13-27-10-0	-55 C	125 °C	2.54 mm	0.1 in	0.12 in	3.05 mm	Beryllium Copper	No Tail	0.76 Ám	30 Áin	4.57 mm	0.18 in	1.22 mm	0.064 in	0.048 in	1.63 mm	2.24 mm	0.088 "	Gold	0.213 in	5.41 mm	Solder

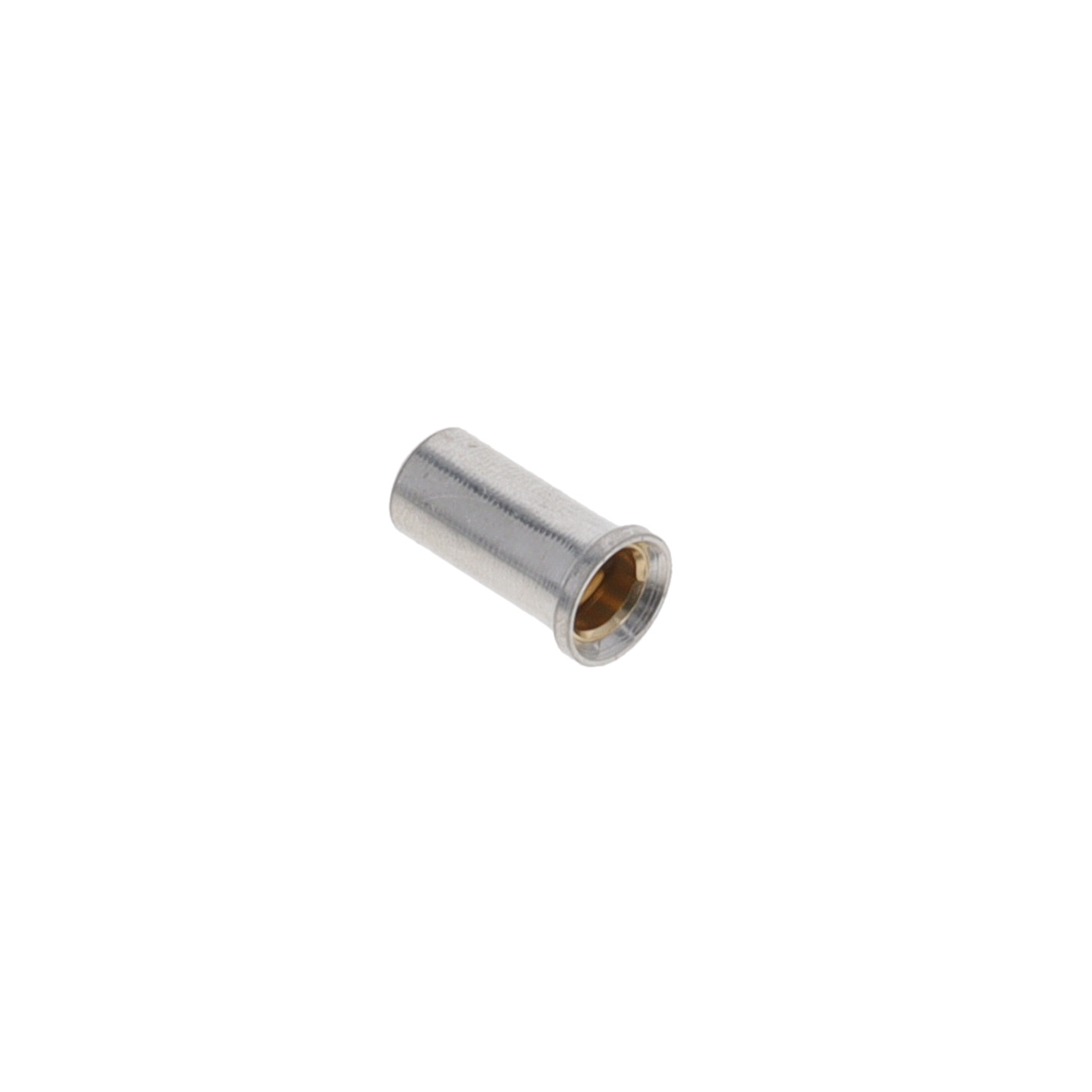

Mill-Max Manufacturing Corp. 0364-0-15-01-13-14-10-0	-55 C	125 °C	2.54 mm	0.1 in	0.12 in	3.05 mm	Beryllium Copper	No Tail	0.25 Ám	10 Áin	4.57 mm	0.18 in	1.22 mm	0.064 in	0.048 in	1.63 mm	2.24 mm	0.088 "	Gold	0.213 in	5.41 mm	Solder

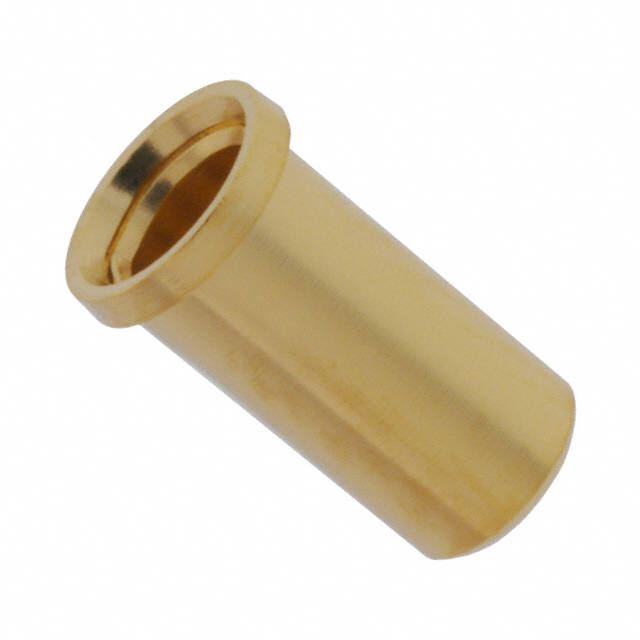

Mill-Max Manufacturing Corp. 0364-0-15-15-13-27-10-0	-55 C	125 °C	2.54 mm	0.1 in	0.12 in	3.05 mm	Beryllium Copper	No Tail	0.76 Ám	30 Áin	4.57 mm	0.18 in	1.22 mm	0.064 in	0.048 in	1.63 mm	2.24 mm	0.088 "	Gold	0.213 in	5.41 mm	Solder
