MPM3690 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
POWER MANAGEMENT MODULES 16V, 50A DC/DC POWER MODULE WITH PMBUS
| Part | Number of Outputs | Supplier Device Package | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Type | Voltage - Input (Max) [Max] | Package / Case | Applications | Features | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Contents | Regulator Topology | Utilized IC / Part | Current - Output | Voltage - Output | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 1 | 144-BGA (16x16) | 180 W | 125 °C | -40 C | 3.6 V | 0.5 V | Non-Isolated PoL Module | 16 V | 144-BBGA Module | ITE (Commercial) | Adjustable Output PMBus™ Remote Sense | 50 A | Surface Mount | 3 V | 0.63 in | 0.21 in | 5.2 mm | 0.63 " | 16 mm | 16 mm | |||||||||||||

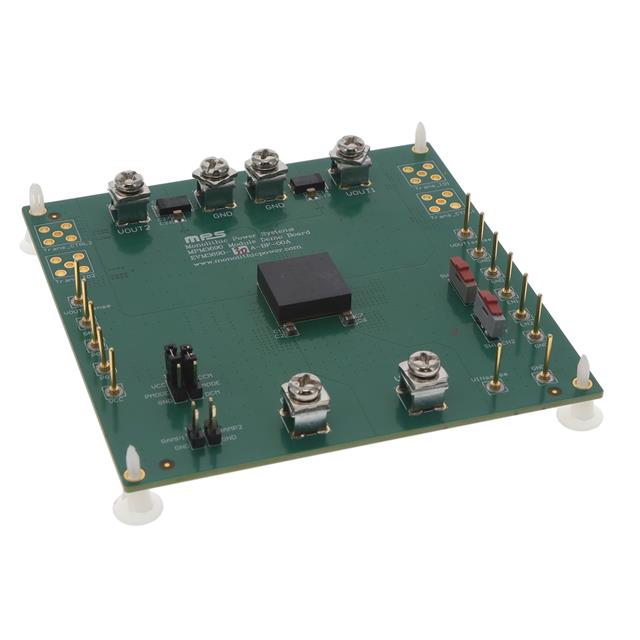

 Monolithic Power Systems Inc. | Board(s) | Fully Populated | 2 | 2 Non-Isolated Outputs Non-Isolated | Board(s) | Buck | MPM3690-30A | 18 A | 1.2 V | DC/DC Step Down | 16 V | 4 V | 500 kHz | |||||||||||||||||||||

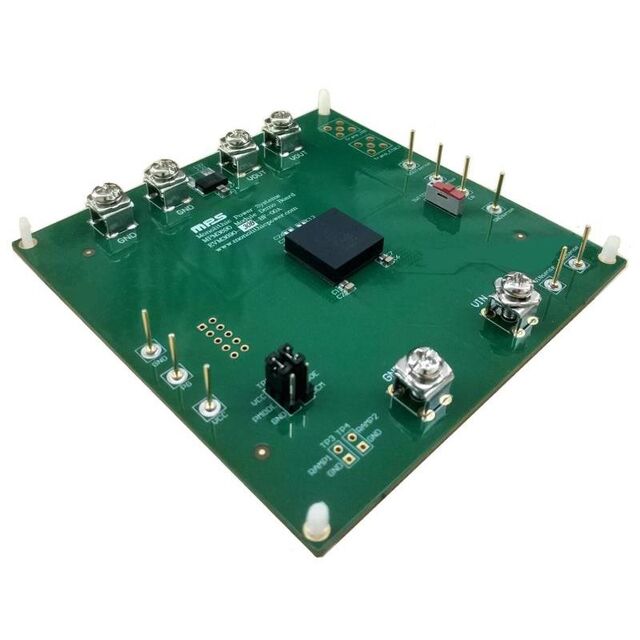

 Monolithic Power Systems Inc. | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Buck | MPM3690-30B | 36 A | 1.2 V | DC/DC Converter | 16 V | 4 V | 800 kHz |
