10084423 Series

Catalog

CONN EDGE DUAL FMALE 30POS 0.031

Part	Material - Insulation	Features	Card Type	Number of Rows [custom]	Mounting Type	Color	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Card Thickness	Card Thickness	Gender	Read Out	Contact Finish	Termination	Contact Material
Amphenol ICC (FCI) 10084423-902LF	Liquid Crystal Polymer (LCP)	Board Guide	Non Specified - Dual Edge	2	Right Angle Surface Mount	Black	15	30 Áin	0.76 Ám	0.8 mm	0.031 in	85 °C	-40 C	30	1 mm	0.039 in	Female	Dual	Gold Gold GXT™	Solder	Copper Alloy
Amphenol ICC (FCI) 10084423-901LF	Liquid Crystal Polymer (LCP)	Board Guide	Non Specified - Dual Edge	2	Right Angle Surface Mount	Black	10	30 Áin	0.76 Ám	0.8 mm	0.031 in	85 °C	-40 C	20	1 mm	0.039 in	Female	Dual	Gold Gold GXT™	Solder	Copper Alloy
Amphenol ICC (FCI) 10084423-201LF	Liquid Crystal Polymer (LCP)	Board Guide	Non Specified - Dual Edge	2	Right Angle Surface Mount	Black	10	15 µin	0.38 µm	0.8 mm	0.031 in	85 °C	-40 C	20	1 mm	0.039 in	Female	Dual	Gold	Solder	Copper Alloy
Amphenol ICC (FCI) 10084423-103LF	Liquid Crystal Polymer (LCP)	Board Guide	Non Specified - Dual Edge	2	Right Angle Surface Mount	Black	35	30 Áin	0.76 Ám	0.8 mm	0.031 in	85 °C	-40 C	70	1 mm	0.039 in	Female	Dual	Gold	Solder	Copper Alloy

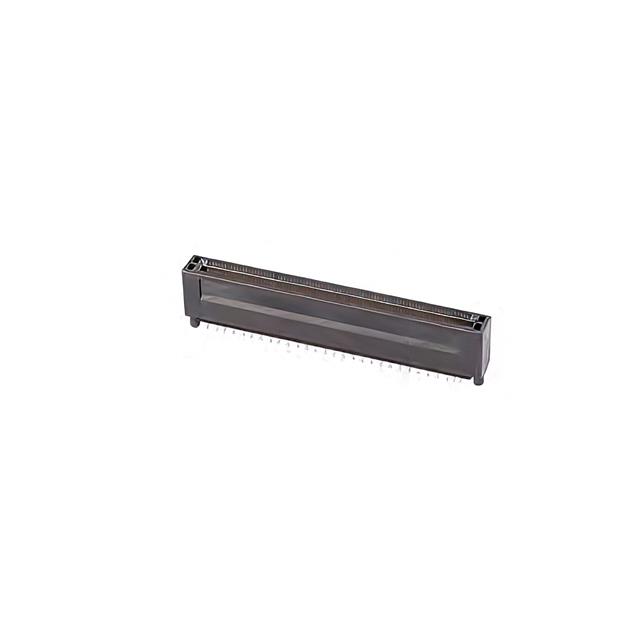

Amphenol ICC (FCI) 10084423-102LF	Liquid Crystal Polymer (LCP)	Board Guide	Non Specified - Dual Edge	2	Right Angle Surface Mount	Black	15	30 Áin	0.76 Ám	0.8 mm	0.031 in	85 °C	-40 C	30	1 mm	0.039 in	Female	Dual	Gold	Solder	Copper Alloy
Amphenol ICC (FCI) 10084423-202LF	Liquid Crystal Polymer (LCP)	Board Guide	Non Specified - Dual Edge	2	Right Angle Surface Mount	Black	15	15 µin	0.38 µm	0.8 mm	0.031 in	85 °C	-40 C	30	1 mm	0.039 in	Female	Dual	Gold	Solder	Copper Alloy
