9502 Series
Manufacturer: Belden Inc.
Beta
⌘K

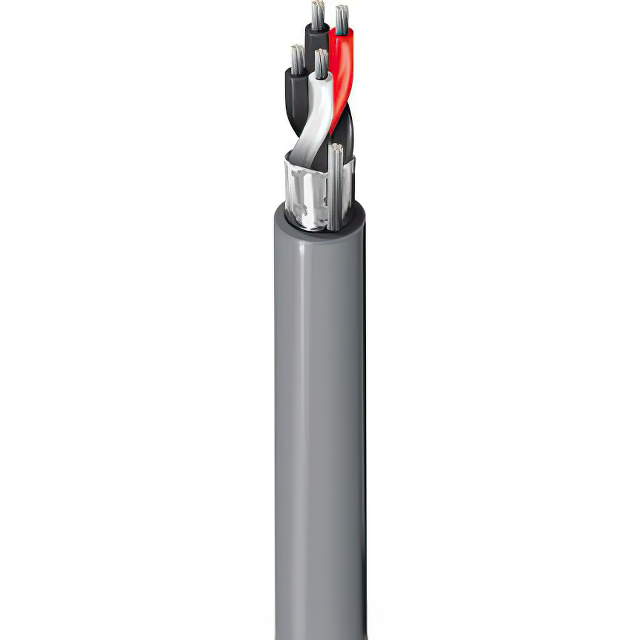

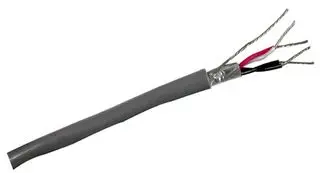

MULTI-PAIR 4COND 24AWG
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Features | Jacket Color | Conductor Insulation | Length | Length | Number of Conductors | Shield Type | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Material | Wire Gauge | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 80 °C | -30 ░C | Drain Wire | Chrome | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 4 | Foil | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.222 in 5.64 mm | UL Style 2464 | 0.813 mm | 0.032 in | 7 | 32 AWG | Computer | Copper Tinned | 24 AWG | Multi-Pair | ||
 Belden Inc. | Aluminum Polyester | 100 % | 80 °C | -30 ░C | Drain Wire | Chrome | Poly-Vinyl Chloride (PVC) | 4 | Foil | Poly-Vinyl Chloride (PVC) | 0.222 in 5.64 mm | 0.813 mm | 0.032 in | 7 | 32 AWG | Computer | Copper Tinned | 24 AWG | Multi-Pair | 100 ft | 30.5 m | ||||
 Belden Inc. | Aluminum | 100 % | 80 °C | -30 ░C | Drain Wire | Chrome | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 4 | Foil | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.222 in 5.64 mm | UL Style 2464 | 0.813 mm | 0.032 in | 7 | 32 AWG | Computer | Copper Tinned | 24 AWG | Multi-Pair | ||
Belden Inc. | Aluminum | 100 % | 80 °C | -30 ░C | Drain Wire | Chrome | Poly-Vinyl Chloride (PVC) | 4 | Foil | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.222 in 5.64 mm | UL Style 2464 | 0.813 mm | 0.032 in | 7 | 32 AWG | Computer | Copper Tinned | 24 AWG | Multi-Pair |
