GEC14D Series

Catalog

CONN HEADER SMD 28POS 2.54MM

Part	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Number of Rows	Fastening Type	Current Rating (Amps)	Number of Positions	Style	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Insulation Material	Shrouding	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Length - Mating

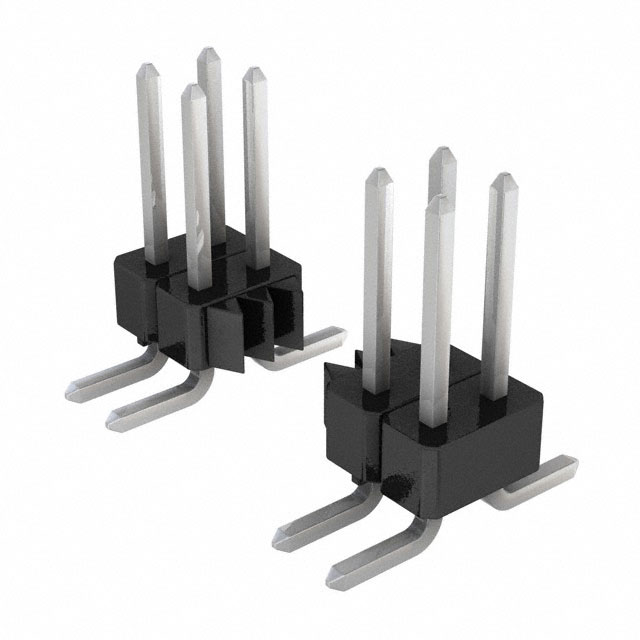

Sullins Connector Solutions GEC14DFBN-M30	UL94 V-0	0.1 in	2.54 mm	All	Surface Mount	2	Push-Pull	3 A	28	Board to Board Cable	0.1 in	2.54 mm	-65 ░C	150 °C	Tin	Male Pin	Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Black	0.318 "	8.08 mm	Square	Nylon 9T Polyamide (PA9T)	Unshrouded	Breakaway Header	2.54 µm	100 µin	Phosphor Bronze
Sullins Connector Solutions GEC14DABN-M30	UL94 V-0	0.1 in	2.54 mm	All	Surface Mount	2	Push-Pull	3 A	28	Board to Board Cable	0.1 in	2.54 mm	-65 ░C	150 °C	Tin	Male Pin	Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Black	0.23 in		Square	Nylon 9T Polyamide (PA9T)	Unshrouded	Breakaway Header	2.54 µm	100 µin	Phosphor Bronze	5.84 mm
