AWG28-26 Series

Catalog

CBL RIBN 26COND 0.039 GRAY FOOT

Part	Insulation Resistance	Spool Size [x]	Spool Size [x]	First Conductor Mark	Length	Conductor Material	Pitch	Pitch	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Wire Gauge	Ribbon Width [custom]	Ribbon Width [custom]	Cable Type	Number of Conductors	Length	Length	Length [x]	Length [x]	Operating Temperature

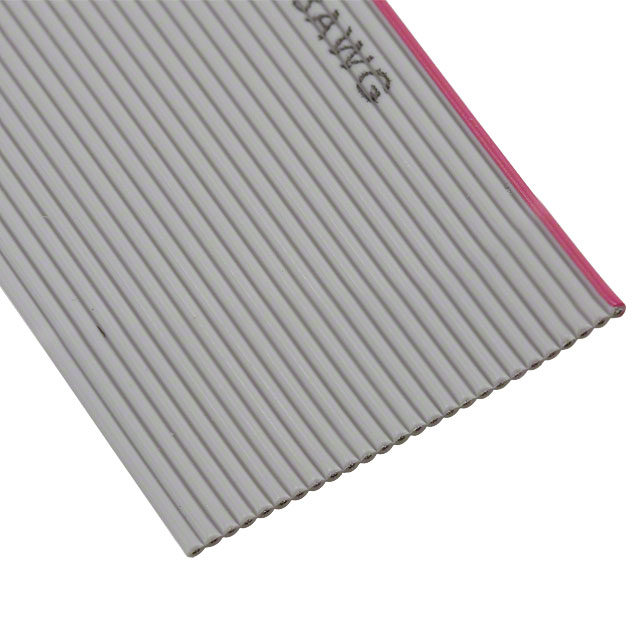

Assmann WSW Components AWG28-26/G-1/300	100 MOhms	300 ft	91.44 m	Red	Enter Number of Feet in Order Quantity	Copper Tinned	1 mm	0.039 in	36 AWG	7 Strands	300 VDC	UL Style 2651	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	Unshielded	-10 °C	105 ░C	Gray	28 AWG	26.01 mm	1.024 in	Flat Cable	26	91440 mm	3600 in

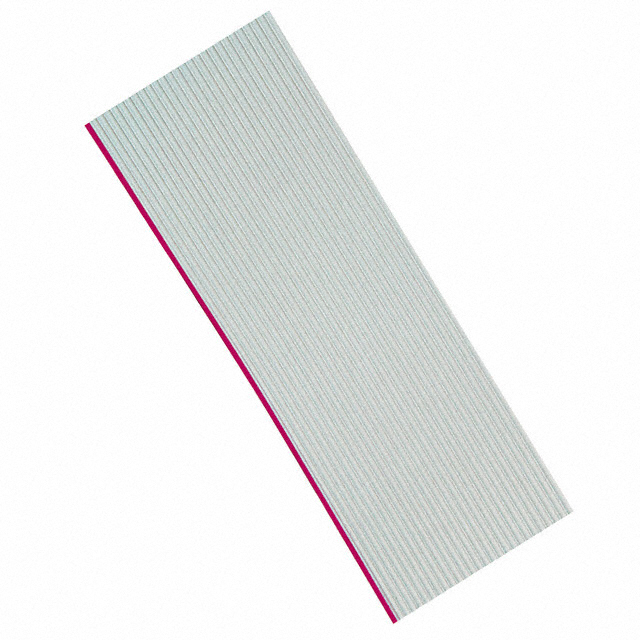

Assmann WSW Components AWG28-26/G/300	100 MOhms	300 ft	91.44 m	Red	Enter Number of Feet in Order Quantity	Copper Tinned	1.27 mm	0.05 in	36 AWG	7 Strands	300 VDC	UL Style 2651	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	Unshielded	-10 °C	105 ░C	Gray	28 AWG	33.02 mm	1.3 in	Flat Cable	26	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	50 ft	15.24 m

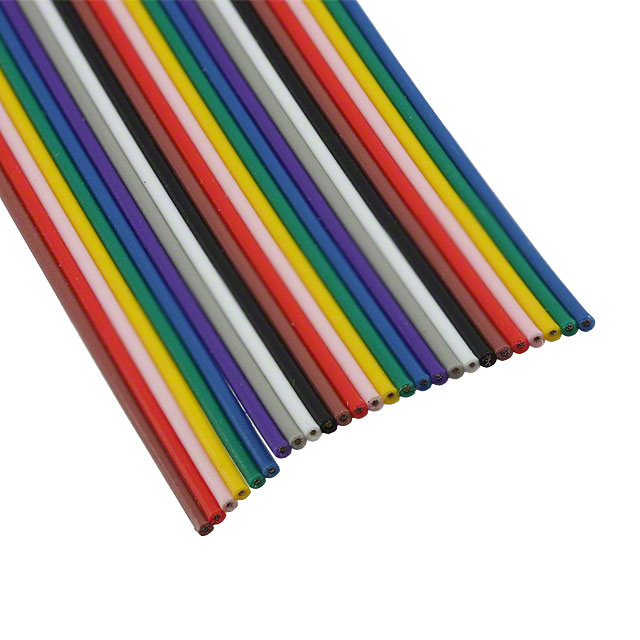

Assmann WSW Components AWG28-26/F-1/300	100 MOhms	300 ft	91.44 m		Enter Number of Feet in Order Quantity	Copper Tinned	1 mm	0.039 in	36 AWG	7 Strands	300 VDC	UL Style 2651	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	Unshielded	-10 °C	105 ░C	Multiple	28 AWG	26.01 mm	1.024 in	Flat Cable	26	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	50 ft	15.24 m

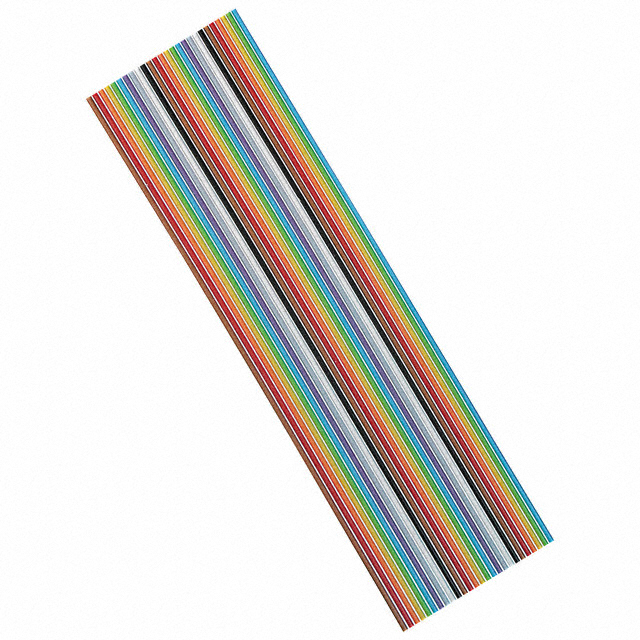

Assmann WSW Components AWG28-26/F/300	100 MOhms			Red	Enter Number of Feet in Order Quantity	Copper Tinned	1.27 mm	0.05 in	36 AWG	7 Strands	300 VDC	UL Style 2651	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	Unshielded			Multiple	28 AWG	33.02 mm	1.3 in	Flat Cable	26	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	50 ft	15.24 m	105 C
