1776242 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

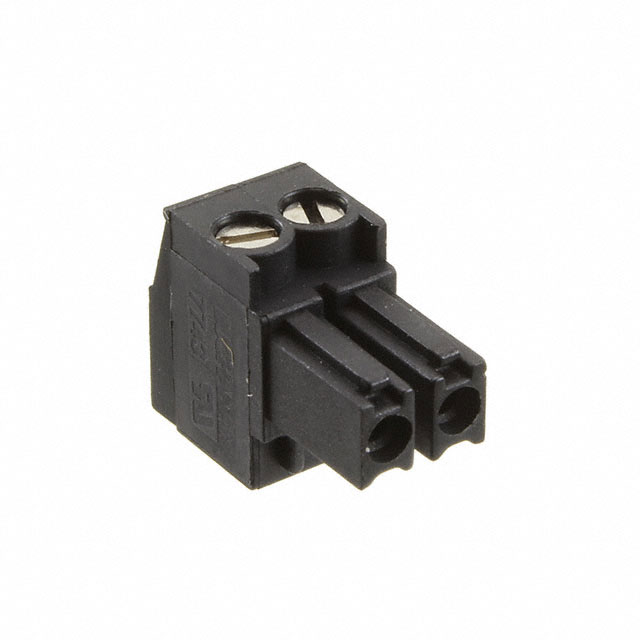

TERM BLOCK PLUG 2POS STR 3.5MM
| Part | Number of Levels | Type | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Mounting Type | Termination Style | Material Flammability Rating | Contact Mating Finish | Color | Number of Positions | Screw Size | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Pitch [x] | Pitch [x] | Insulation Height | Insulation Height | Contact Material | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Plug Female Sockets | 0.05 mm² | 2 mm² | Free Hanging (In-Line) | Screw - Rising Cage Clamp | UL94 V-0 | Tin | Black | 2 | M2 | 14 AWG | 30 AWG | 3.5 mm | 0.138 in | 0.437 in | 11.1 mm | Phosphor Bronze | 2 |
