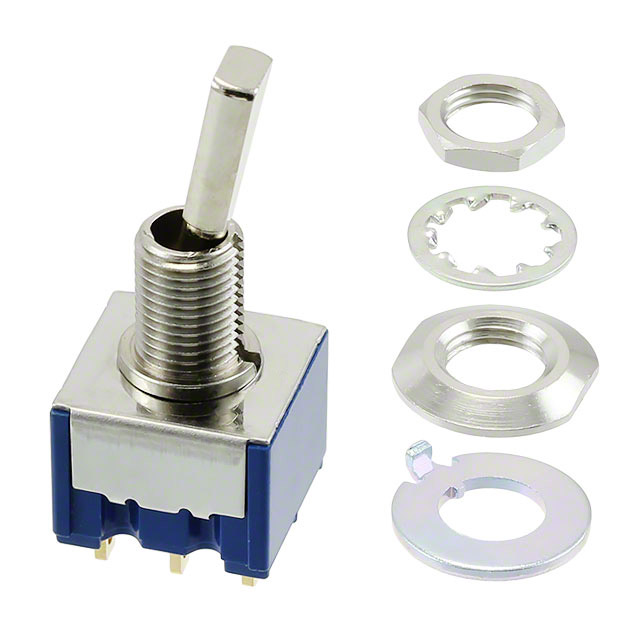

8C2011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE DPDT 25MA 20V
| Part | Electrical Life | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Illumination | Bushing Thread | Actuator Type | Mounting Type | Circuit | Termination Style | Actuator Length [x] | Switch Function | Current Rating (Amps) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | Sealed - Flux Protection | 85 °C | -20 ░C | 20 V | 6.5 mm | Non-Illuminated | 1/4-40 | Flat Anti-Rotation | Panel Mount | DPDT | Solder Lug | 11.4 mm | On-On | 25 mA | |
 Nidec Components Corporation | 50000 Cycles | Sealed - Flux Protection | 85 °C | -30 ░C | 30 V | 6.5 mm | Non-Illuminated | 1/4-40 | Flat Anti-Rotation | Panel Mount | DPDT | Solder Lug | 11.4 mm | On-On | 4 A 6 A | 125 V |
