9S Type Series

Catalog

AC FANS AXIAL FAN, 120X120X25MM, 100VAC, SENSOR VOLTAGE 4.5VDC-5.5VDC (FOR 5VDC), ALARM

Part	Air Flow	Air Flow	Material - Blade	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Approval Agency	Static Pressure	Static Pressure	Fan Type	Features	Termination	Width [y]	Voltage - Rated	Noise	Lifetime @ Temp.	Size / Dimension	Size / Dimension [y]	Weight [custom]	Weight [custom]	Weight	Weight	Termination	Material	Fan Accessory Type	Fits Fan Size
Sanyo Denki America Inc. 109S486-20	44.2 CFM	1.24 mł/min	Plastic	Aluminum	Varies Based on Temperature	90 VAC	110 VAC	120 mA	1600 RPM	-10 °C	60 °C	10 W	120 mm	120 mm	Ball	CE CSA PSE TUV UR	18.6 Pa	0.075 in H2O	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	25 mm	100 VAC	27 dB(A)
Sanyo Denki America Inc. 109S425UL-30	95.4 CFM	2.67 m³/min	Plastic	Aluminum				70 mA	3100 RPM	-10 °C	60 °C	12 W		119 mm	Ball	CE PSE TUV UL	65.7 Pa	0.264 in H2O	Tubeaxial	Alarm	3 Wire Leads	38 mm	230 VAC	43 dB	25000 Hrs	Square	119 mm	1.3 lbs	589.7 g

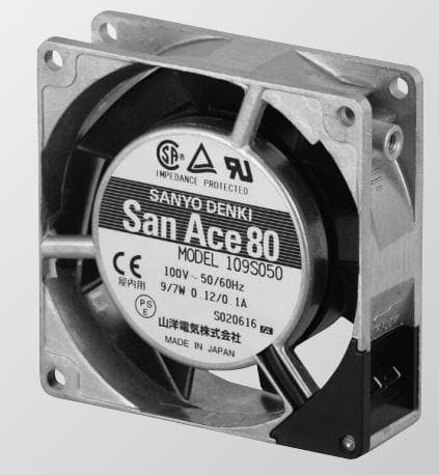

Sanyo Denki America Inc. 109S050	26.9 CFM	0.753 m³/min							3100 RPM	-30 ░C	60 °C	7 W	80 mm	80 mm	Ball	CE CSA PSE TUV UL	38.4 Pa	0.154 in H2O	Tubeaxial			25 mm	100 VAC	33 dB(A)						269.89 g	0.595 lb	2
Sanyo Denki America Inc. 109S492-30	38.9 CFM	1.09 m³/min							3100 RPM	-10 °C	60 °C	10 W		92 mm	Ball	CE CSA PSE TUV UR	49 Pa	0.197 in H2O	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	25 mm	200 VAC	38 dB(A)			92 mm
Sanyo Denki America Inc. 109S487-30	81.3 CFM	2.28 m³/min	Plastic	Aluminum				60 mA	2900 RPM	-10 °C	60 °C	12 W		119 mm	Ball	CE PSE TUV UL	53.9 Pa	0.216 in H2O	Tubeaxial	Alarm	3 Wire Leads	25 mm	230 VAC	41 dB	25000 Hrs	Square	119 mm			390.09 g	0.86 lb
Sanyo Denki America Inc. 109S091	38.9 CFM	1.09 m³/min	Plastic	Aluminum				0.09 A	3100 RPM	-30 ░C	60 °C	7 W		92 mm	Ball	CE CSA PSE TUV UL	49 Pa	0.197 in H2O	Tubeaxial			25 mm	100 VAC	38 dB(A)	25000 Hrs		92 mm			289.85 g	0.639 lb	2
Sanyo Denki America Inc. 109S425UL-20	95.4 CFM	2.67 m³/min							3100 RPM	-10 °C	60 °C	12 W		119 mm	Ball	CE PSE TUV UL	65.7 Pa	0.264 in H2O	Tubeaxial	Alarm	3 Wire Leads	38 mm	230 VAC	43 dB		Square	119 mm	1.3 lbs	589.7 g
Sanyo Denki America Inc. 109S478UL-30	102.4 CFM	2.87 m³/min	Plastic	Aluminum	Varies Based on Temperature			100 mA	3100 RPM	-10 °C	60 °C	16 W	120 mm	120 mm	Ball	CE CSA PSE TUV UR	68.7 Pa	0.276 in H2O	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	38 mm	200 VAC	45 dB(A)
Sanyo Denki America Inc. 109S424UL-30	95.4 CFM	2.67 m³/min	Plastic	Aluminum	Varies Based on Temperature	103.5 VAC	126.5 VAC	140 mA	3100 RPM	-10 °C	60 °C	12 W	120 mm	120 mm	Ball	CE CSA PSE TUV UR	65.7 Pa	0.264 in H2O	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	38 mm	115 VAC	43 dB
Sanyo Denki America Inc. 109-018																																	Stainless Steel	Filter Guard Assembly	120 mm
