083-886 Series
Manufacturer: Amphenol RF
Beta
⌘K

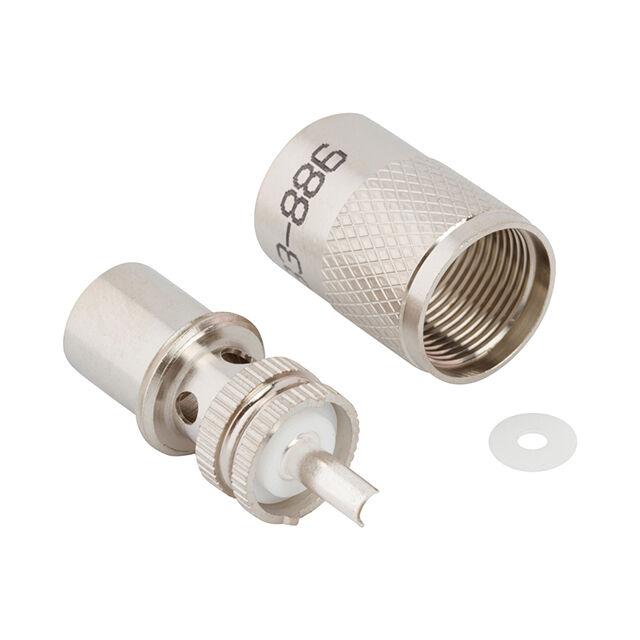

CONN UHF PLUG STR SOLDER
| Part | Mounting Type | Mating Cycles | Shield Termination | Number of Ports | Cable Group | Housing Color | Connector Type | Body Finish | Contact Termination | Frequency - Max [Max] | Dielectric Material | Connector Style | Center Contact Plating | Voltage Rating | Center Contact Material | Body Material | Impedance | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | Free Hanging (In-Line) | 500 | Solder | 1 | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | Silver | Male Pin Plug | Nickel | Solder | 300 MHz | Polytetrafluoroethylene (PTFE) | UHF | Silver | 500 V | Brass | Brass | Non-Constant | ||
Amphenol RF | Free Hanging (In-Line) | 500 | Solder | 1 | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | Silver | Male Pin Plug | Silver | Solder | 300 MHz | Polytetrafluoroethylene (PTFE) | UHF | Silver | 500 V | Brass | Brass | Non-Constant | -65 ░C | 165 °C |
