MCV Series

Pluggable Terminal Blocks MCV 0,5/ 4-G-2,54 SMD R24

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks MCV 0,5/ 4-G-2,54 SMD R24

Catalog

Pluggable Terminal Blocks MCV 0,5/ 4-G-2,54 SMD R24

Part	Material Flammability Rating	Insulation Height	Insulation Height	Housing Material	Contact Tail Length	Contact Tail Length	Color	Features	Positions Per Level	Voltage - UL	Header Orientation	Voltage - IEC	Mounting Type	Type	Number of Levels	Current - IEC	Pitch	Pitch	Termination Style	Current - UL	Contact Mating Finish	Number of Positions	Contact Tail Length [x]	Contact Tail Length [x]	Insulation Height [z]	Insulation Height [z]

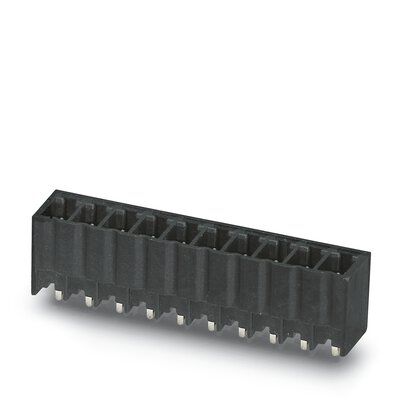

Phoenix Contact 1712872	UL94 V-0	0.362 in	9.2 mm	Liquid Crystal Polymer (LCP)	0.102 in	2.6 mm	Black	Pick and Place Cap	4	300 V	Vertical	250 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	8 A	3.81 mm	0.15 in	Solder	8 A	Tin	4

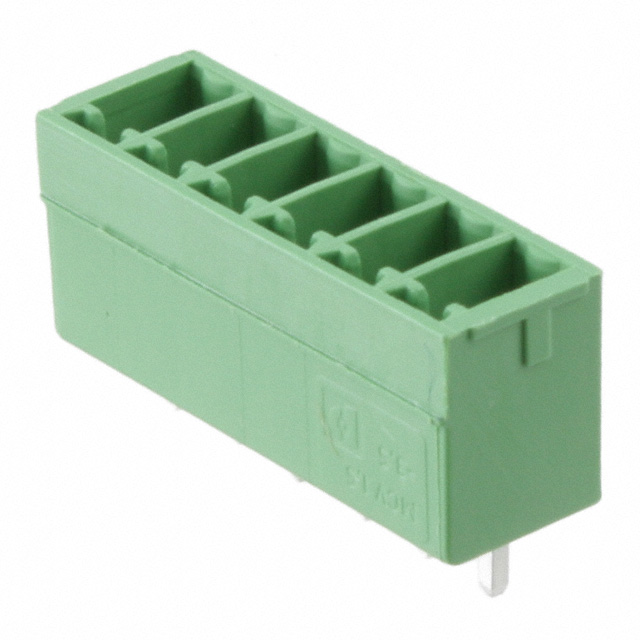

Phoenix Contact 1843648	UL94 V-0	0.362 in	9.2 mm	Polybutylene Terephthalate (PBT)			Green		6	300 V	Vertical	250 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	8 A	3.5 mm	0.138 "	Solder	8 A	Tin	6	3.4 mm	0.134 in
Phoenix Contact 1706081							Black	Solder Retention	12	150 V	Vertical	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	1	6 A	2.54 mm	0.1 "	Solder	6 A	Gold	12
Phoenix Contact 1707528	UL94 V-0	0.362 in	9.2 mm	Liquid Crystal Polymer (LCP)	0.102 in	2.6 mm	Black		12	300 V	Vertical	250 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	8 A	3.81 mm	0.15 in	Solder	8 A	Tin	12
Phoenix Contact 1780105	UL94 V-0	0.362 in	9.2 mm	Liquid Crystal Polymer (LCP)	0.055 in	1.4 mm	Black	Mating and Mounting Flange	10	300 V	Vertical	250 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	8 A	3.5 mm	0.138 "	Solder	8 A	Tin	10
Phoenix Contact 1803439	UL94 V-0	0.362 in	9.2 mm	Polybutylene Terephthalate (PBT)			Green		3	300 V	Vertical	250 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	8 A	3.81 mm	0.15 in	Solder	8 A	Tin		3.4 mm	0.134 in

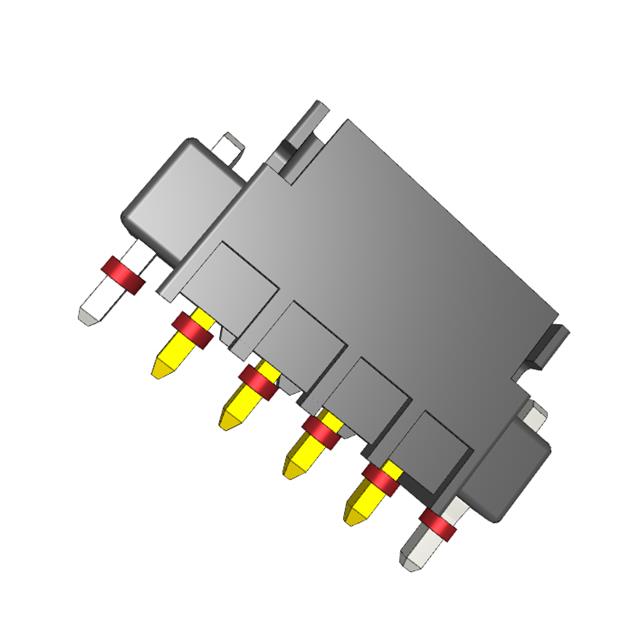

Phoenix Contact 1706166	UL94 V-0	0.28 in	7.1 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Black	Solder Retention	4	150 V	Vertical	160 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	6 A	2.54 mm	0.1 "	Solder	6 A	Gold	4
Phoenix Contact 1881655	UL94 V-0			Polyamide (PA) Nylon	0.138 in	3.5 mm	Green		12	125 V	Vertical	320 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	4 A	2.5 mm	0.098 in	Solder	4 A	Tin	12			0.398 "	10.11 mm
Phoenix Contact 1780406	UL94 V-0	0.362 in	9.2 mm	Liquid Crystal Polymer (LCP)	0.055 in	1.4 mm	Black		12	300 V	Vertical	250 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	8 A	3.5 mm	0.138 "	Solder	8 A	Tin	12

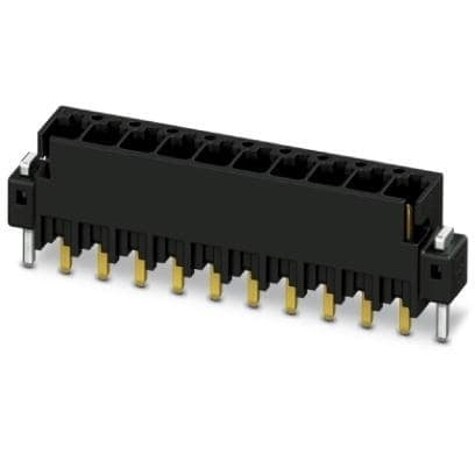

Phoenix Contact 1821533							Black	Solder Retention	16	150 V	Vertical	160 V	Through Hole	Header Male Pins Shrouded (4 Side)	1	6 A	2.54 mm	0.1 "	Solder	6 A	Gold	16
