W21MC7-P Series
Manufacturer: ODU
Beta
⌘K

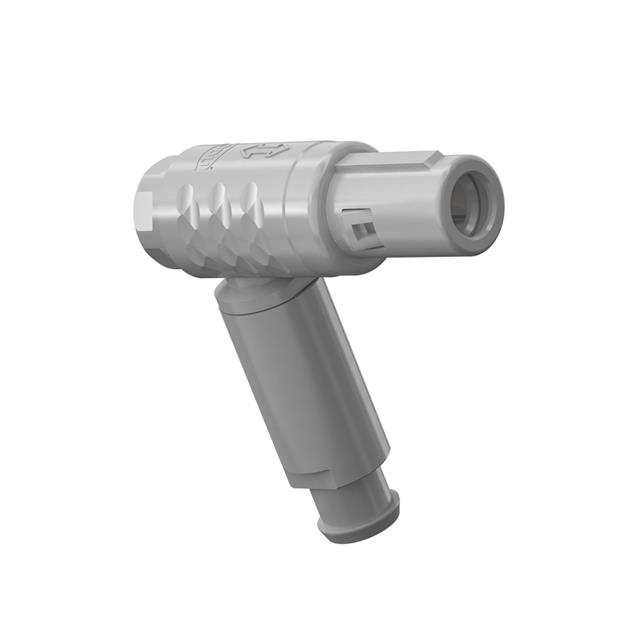

ODU MEDI-SNAP PLUG, R/A, STY 2,
| Part | Shell Material | Orientation | Shielding | Backshell Material, Plating | Fastening Type | Contact Finish - Mating | Features | Voltage Rating | Mounting Type | Connector Type | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Ingress Protection | Material Flammability Rating | Primary Material | Applications | Insert Material | Shell Size - Insert | Number of Positions | Color | Current Rating (Amps) | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polysulfone (PSU) | C | Unshielded | Polysulfone (PSU) | Push-Pull | Gold | Backshell Strain Relief | 10 V | Free Hanging (In-Line) Right Angle | Plug Male Pins | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | IP50 - Dust Protected | UL94 V-0 | Plastic | Industrial Medical Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 1 | 8 | Gray | 7.5 A | Brass | 120 °C | -50 °C |
