6448 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

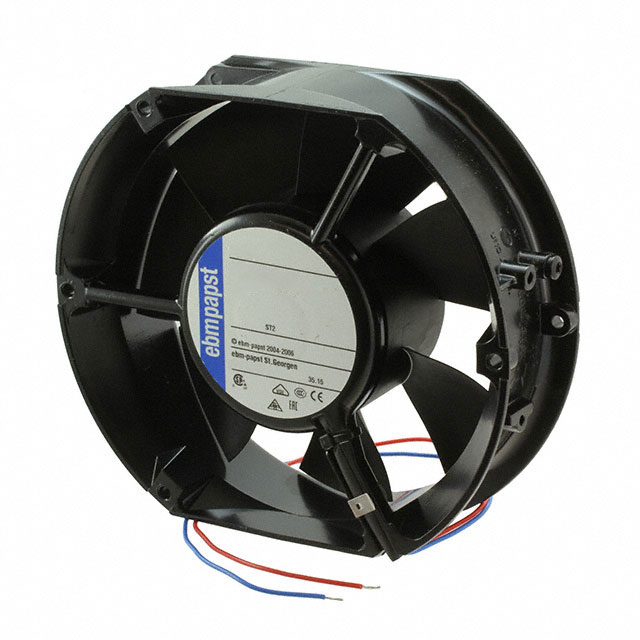

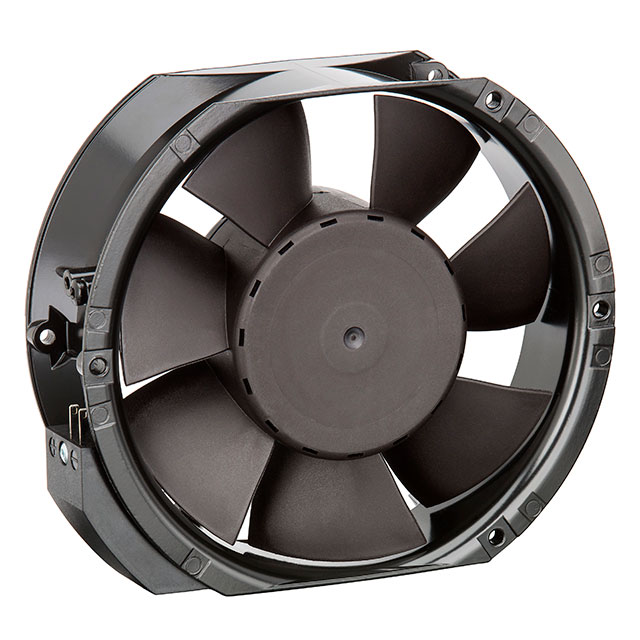

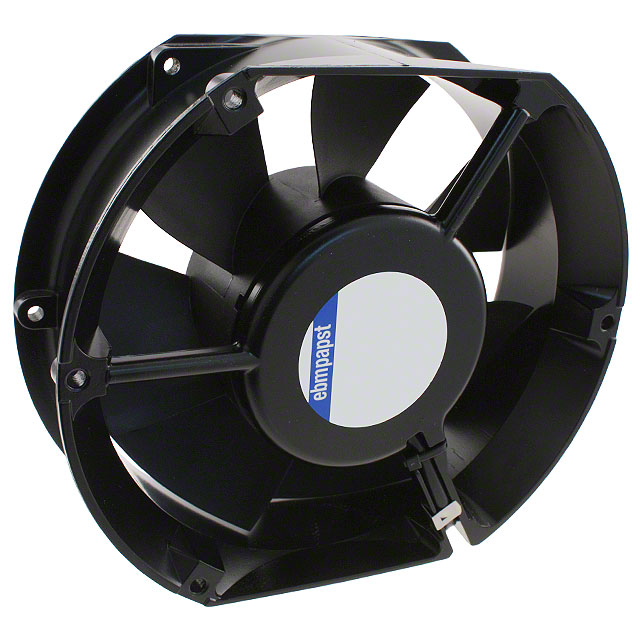

DC FAN AXIAL BALL BEARING 48V 28V TO 60V 241.3CFM 57DB 171.5 X 150 X 50.8MM
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Material - Frame | Approval Agency | RPM | Weight | Weight | Power (Watts) | Air Flow | Air Flow | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Width [y] | Termination | Fan Type | Noise | Bearing Type | Lifetime @ Temp. | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 28 V | 60 V | Polyamide (PA) Nylon Fiberglass Reinforced | Aluminum | UL | 3400 RPM | 861.8 g | 1.9 lbs | 17 W | 6.76 m³/min | 241.3 CFM | Rectangular/Rounded | 150.4 mm | 171.5 mm | 48 VDC | 152.6 °F | -20 ░C | -4 °F | 67 °C | IP68 - Dust Tight Waterproof | 50.8 mm | 2 Wire Leads | Tubeaxial | 57 dB | Ball | ||
 ebm-papst Inc. | 28 V | 60 V | Polyamide (PA) Nylon Fiberglass Reinforced | Aluminum | 4000 RPM | 771.1 g | 1.7 lbs | 26 W | 7.91 mł/min | 282.5 CFM | Rectangular/Rounded | 150 mm | 172 mm | 48 VDC | 55 °C | -20 ░C | -4 °F | 55 °C | 50.8 mm | 2 Wire Leads | Tubeaxial | 63 dB | Ball | 70000 Hrs | |||
 ebm-papst Inc. | 28 V | 60 V | Polyamide (PA) Nylon Fiberglass Reinforced | Aluminum | 3400 RPM | 17 W | 6.75 mł/min | 241 CFM | Rectangular/Rounded | 150 mm | 171.5 mm | 48 VDC | 50.8 mm | Tubeaxial | 57 dB | Ball | Alarm Sensor |
