0852-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

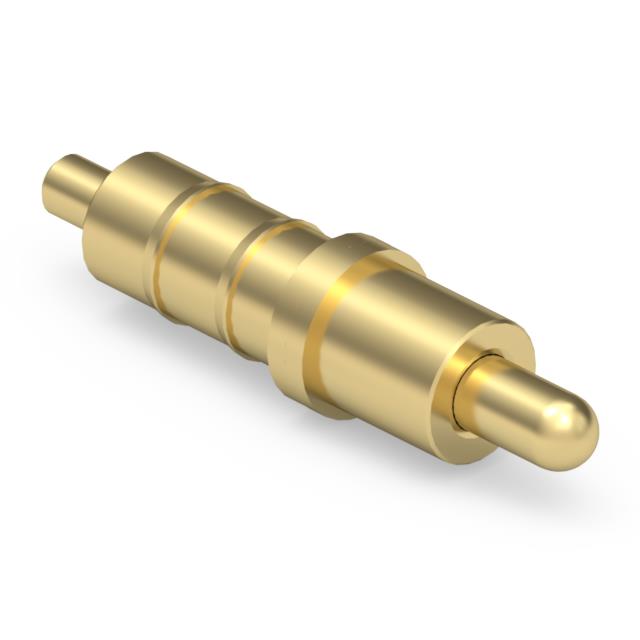

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Operating Force - Mid Compression | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Recommended Working Height | Recommended Working Height | Contact Type | Current Rating (Amps) | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Contact Finish | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial | Minimum Working Height | Minimum Working Height | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Brass Alloy | 120 gf | 2.82 mm | 0.111 in | 8.86 mm | 0.349 in | Sleeve & Plunger (Pogo Pins) | 8.8 A | 0.22 in | 5.58 mm | Through Hole | Gold | 1000000 | 20 µin | 0.51 µm | 30 gf | 0.304 in | 7.72 mm | 1.27 mm | 0.05 in |
