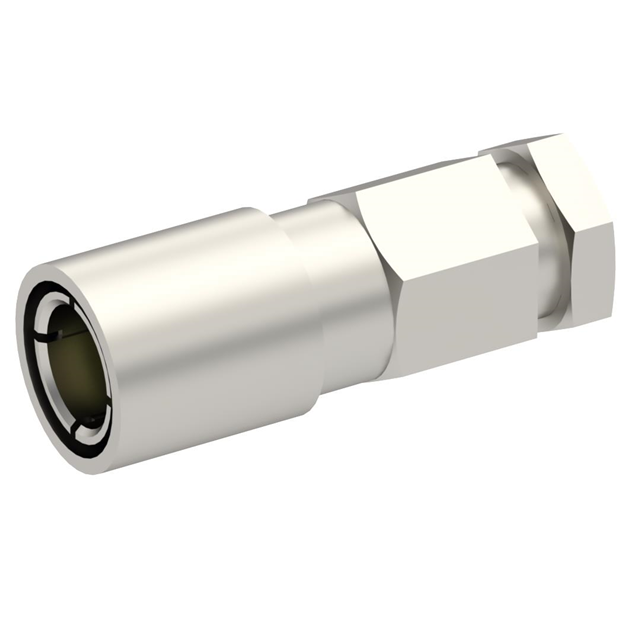

3002-7541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SLB / STRAIGHT PLUG FEMALE SOLDE
| Part | Mating Cycles | Insertion Loss | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Body Finish | Fastening Type | Mounting Type | Number of Ports | Shield Termination | Frequency - Max [Max] | Housing Color | Contact Termination | Center Contact Material | Connector Style | Connector Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 0.3 dB | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Brass | Nickel | Snap-On | Free Hanging (In-Line) | 1 | Clamp | 4 GHz | Silver | Solder | Beryllium Copper | SLB | Female Socket Plug | 50 Ohms |
