BZ-RW8 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Operating Force	Switch Function	Differential Travel	Differential Travel	Overtravel	Overtravel	Voltage Rating - AC	Operating Position	Operating Position	Mechanical Life	Current Rating (Amps)	Mounting Type	Pretravel	Pretravel	Release Force

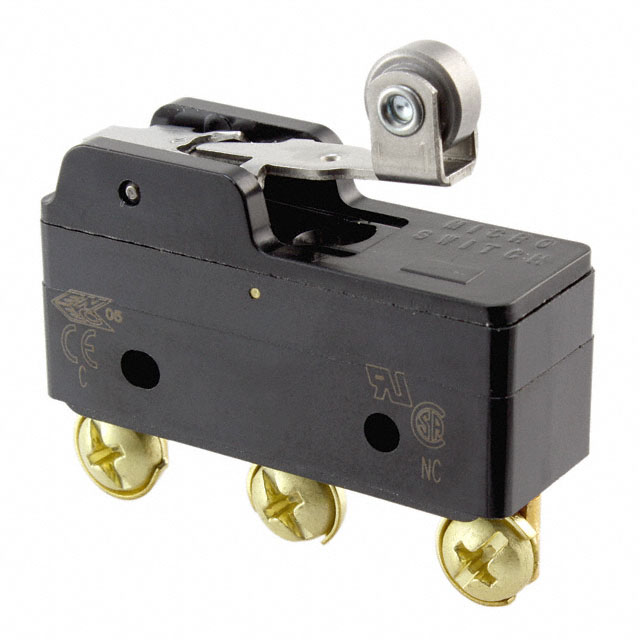

Honeywell Sensing and Productivity Solutions BZ-RW842214-P4	Lever Roller	85 °C	-55 °C	Screw Terminal	SPDT	56 gf	On-Mom	0.15 mm	0.006 in	0.094 in	2.4 mm	125 V	30.2 mm	1.188 in	20000000 Cycles	15 A	Chassis Mount

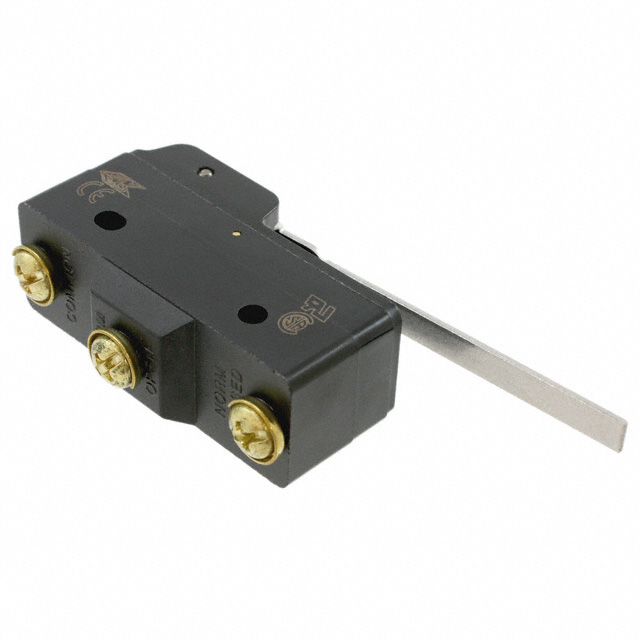

Honeywell Sensing and Productivity Solutions BZ-RW84-A2	Lever Straight	85 °C	-55 °C	Screw Terminal	SPDT	21 gf	On-Mom	0.38 mm	0.015 in	0.219 in	5.6 mm	125 V	19.1 mm	0.75 "	20000000 Cycles	15 A	Chassis Mount	0.266 in	6.75 mm	3.5 gf

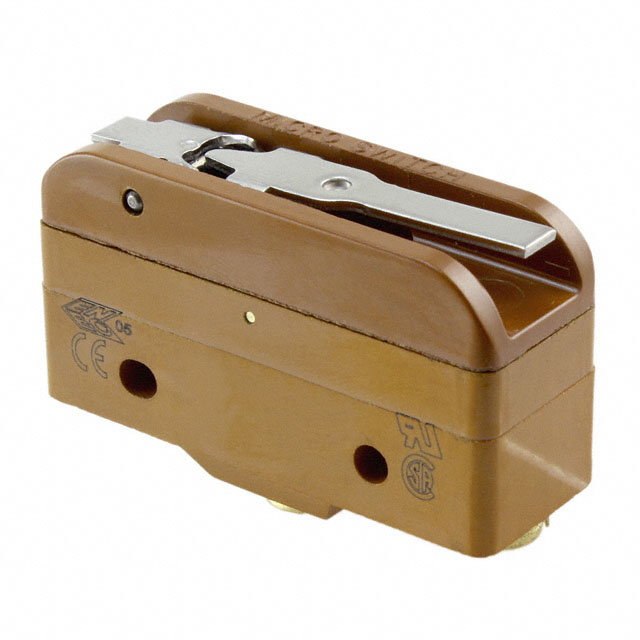

Honeywell Sensing and Productivity Solutions BZ-RW84414-A2	Lever Straight	85 °C	-55 °C	Screw Terminal	SPDT	283 gf	On-Mom	0.23 mm	0.009 in	0.125 in	3.2 mm	125 V	19.1 mm	0.75 "	20000000 Cycles	15 A	Chassis Mount	0.157 in	4 mm
Honeywell Sensing and Productivity Solutions BZ-RW8435161-A2	Lever Straight	85 °C	-55 °C	Screw Terminal	SPDT	7 gf	On-Mom	0.3 mm	0.012 "	0.203 in	5.15 mm	125 V	19.1 mm	0.75 "	20000000 Cycles	10 A	Chassis Mount	0.25 in	6.35 mm

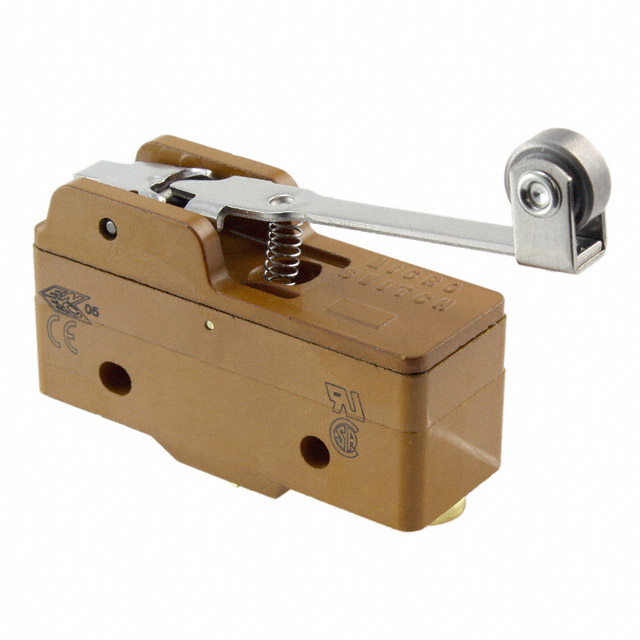

Honeywell Sensing and Productivity Solutions BZ-RW82051-A2	Lever Roller	85 °C	-55 °C	Screw Terminal	SPDT	85 gf	On-Mom	0.38 mm	0.015 in	0.156 in	3.96 mm	125 V	30.2 mm	1.188 in	20000000 Cycles	15 A	Chassis Mount			21 gf
