746-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

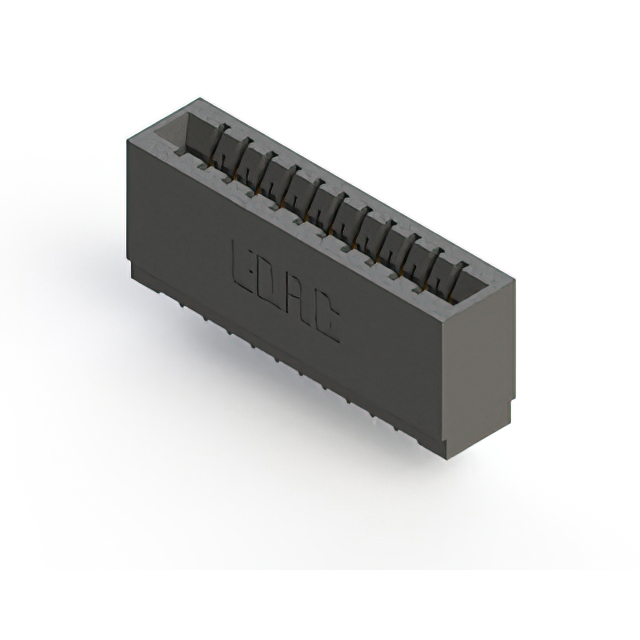

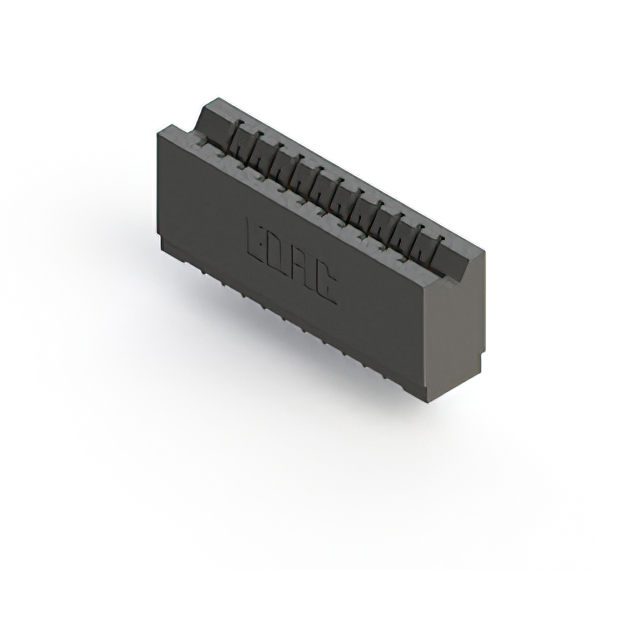

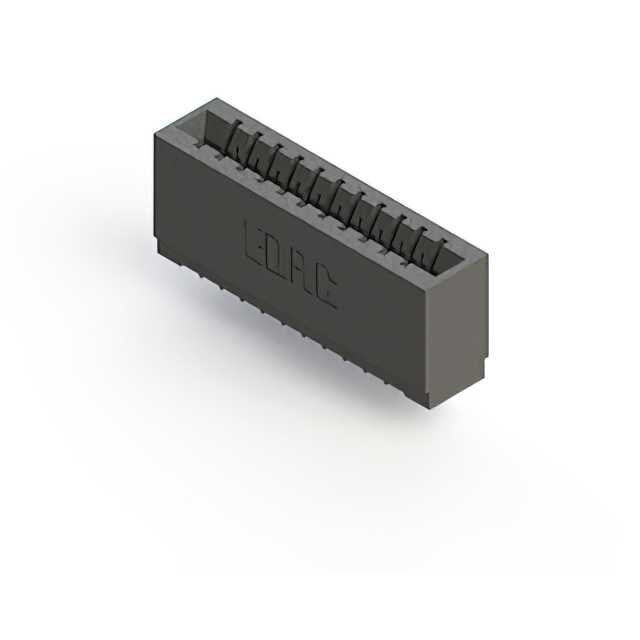

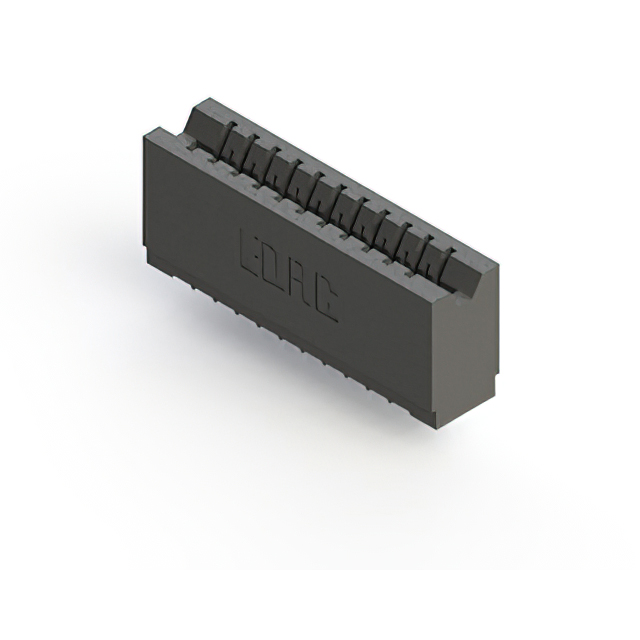

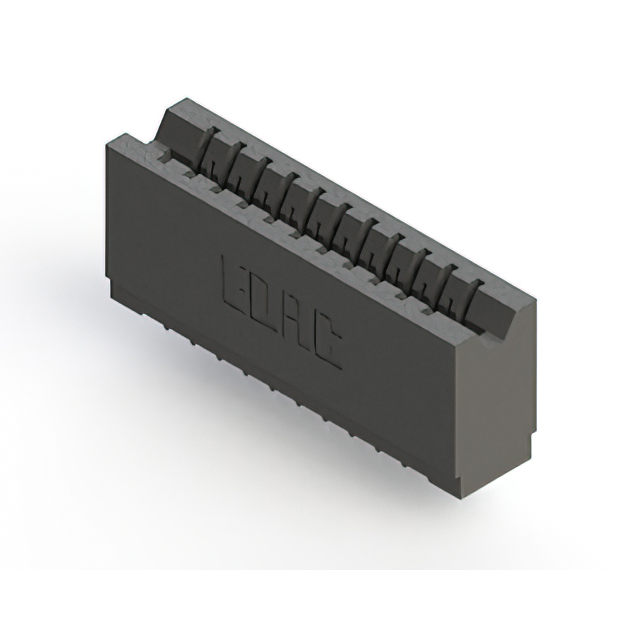

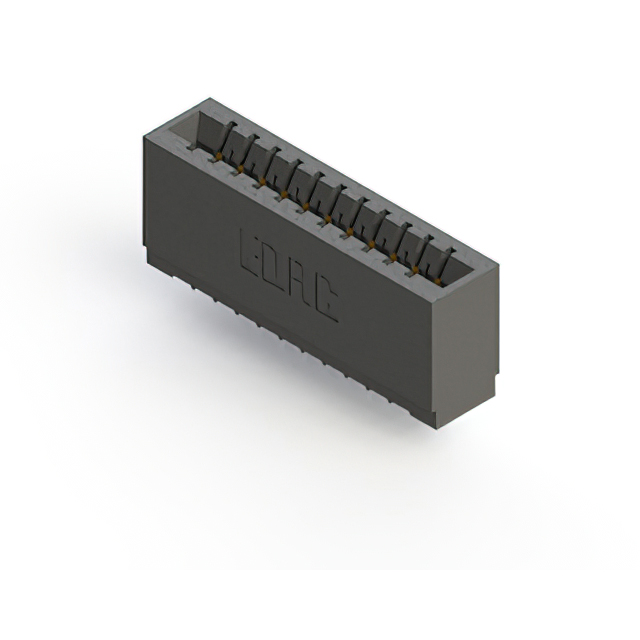

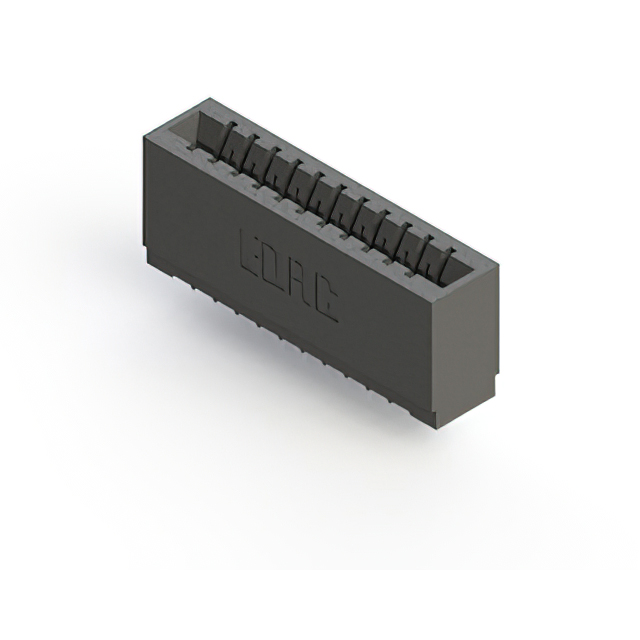

CONN EDGE SGL FMALE 11POS 0.125
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Number of Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Contact Finish | Number of Positions | Card Type | Read Out | Color | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Through Hole | -40 C | 105 ░C | Copper Alloy | Press-Fit | 30 Áin | 0.76 Ám | 11 | Gold | 11 | Non Specified - Single Edge | Single | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
