6394 Series

Catalog

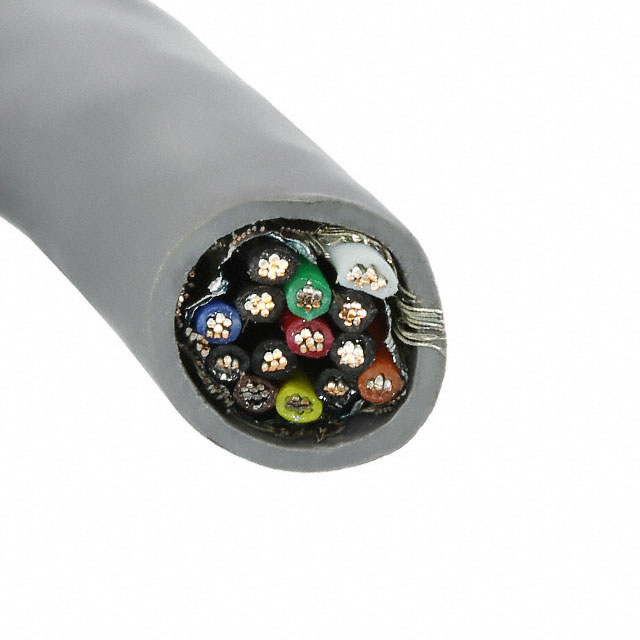

MULTI-PAIR 14COND 28AWG 100'

Part	Shield Coverage	Shield Material	Cable Type	Number of Conductors	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Length [x]	Length [x]	Shield Type	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Voltage	Length	Length
ALPHA WIRE 6394 SL005	90 % 100 %	Aluminum Copper Tinned	Multi-Pair	14	Drain Wire	0.035 in	0.889 mm	28 AWG	100 ft	30.5 m	Braid Foil	Slate	Poly-Vinyl Chloride (PVC)	6.83 mm	0.269 "	Polyethylene (PE)	UL Style 2960	7	36 AWG	Copper Tinned	300 VDC
ALPHA WIRE 6394 SL001	90 % 100 %	Aluminum Copper Tinned	Multi-Pair	14	Drain Wire	0.035 in	0.889 mm	28 AWG			Braid Foil	Slate	Poly-Vinyl Chloride (PVC)	6.83 mm	0.269 "	Polyethylene (PE)	UL Style 2960	7	36 AWG	Copper Tinned	300 VDC	304.8 m	1000 ft
ALPHA WIRE 6394 SL002	90 % 100 %	Aluminum Copper Tinned	Multi-Pair	14	Drain Wire	0.035 in	0.889 mm	28 AWG			Braid Foil	Slate	Poly-Vinyl Chloride (PVC)	6.83 mm	0.269 "	Polyethylene (PE)	UL Style 2960	7	36 AWG	Copper Tinned	300 VDC	152.4 m	500 ft
