104130 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 26 CONTACTS, THROUGH HOLE RIGHT ANGLE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Mounting Type	Number of Rows [custom]	Contact Shape	Insulation Color	Insulation Material	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Positions	Contact Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Shrouding	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Material	Connector Type	Number of Positions [custom]
TE Connectivity AMP Connectors 104130-5	2.54 µm	100 µin	0.1 in	2.54 mm	Keying Slot	Right Angle Through Hole	2	Square	Black	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	Solder	0.76 Ám	30 Áin	Latch Lock/Eject Hooks	0.135 in	3.43 mm	26	Male Pin	5.08 mm	0.2 in	0.1 "	2.54 mm	1 A	Tin-Lead	250 VAC	105 ░C	-65 ░C	Board to Cable/Wire	Shrouded - 4 Wall	9.14 mm	0.36 in	All	Brass	Header
TE Connectivity AMP Connectors 104130-6	2.54 µm	100 µin	0.1 in	2.54 mm	Keying Slot	Right Angle Through Hole	2	Square	Black	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	Solder	0.76 Ám	30 Áin	Latch Lock/Eject Hooks	0.135 in	3.43 mm		Male Pin	5.08 mm	0.2 in	0.1 "	2.54 mm	1 A	Tin-Lead	250 VAC	105 ░C	-65 ░C	Board to Cable/Wire	Shrouded - 4 Wall	9.14 mm	0.36 in	All	Brass	Header	34

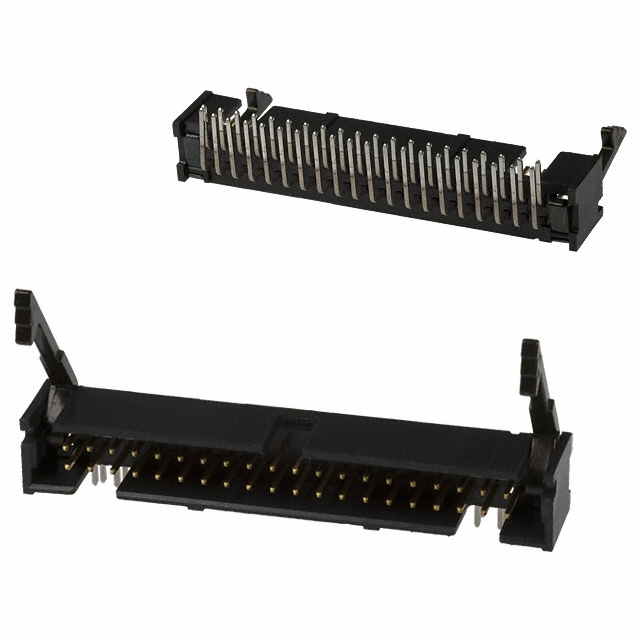

TE Connectivity AMP Connectors 104130-7	2.54 µm	100 µin	0.1 in	2.54 mm	Keying Slot	Right Angle Through Hole	2	Square	Black	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	Solder	0.76 Ám	30 Áin	Latch Lock/Eject Hooks	0.135 in	3.43 mm	40	Male Pin	5.08 mm	0.2 in	0.1 "	2.54 mm	1 A	Tin-Lead	250 VAC	105 ░C	-65 ░C	Board to Cable/Wire	Shrouded - 4 Wall	9.14 mm	0.36 in	All	Brass	Header
TE Connectivity AMP Connectors 104130-2	2.54 µm	100 µin	0.1 in	2.54 mm	Keying Slot	Right Angle Through Hole	2	Square	Black	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	Solder	0.76 Ám	30 Áin	Latch Lock/Eject Hooks	0.135 in	3.43 mm	14	Male Pin	5.08 mm	0.2 in	0.1 "	2.54 mm	1 A	Tin-Lead	250 VAC	105 ░C	-65 ░C	Board to Cable/Wire	Shrouded - 4 Wall	9.14 mm	0.36 in	All	Brass	Header

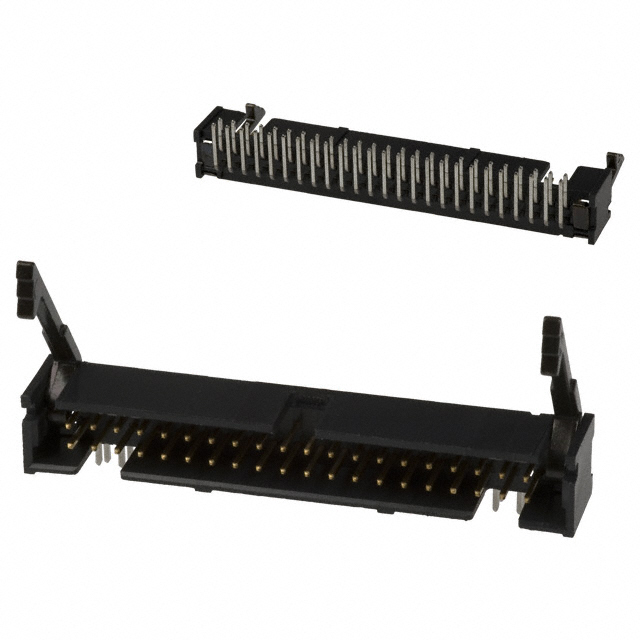

TE Connectivity AMP Connectors 104130-9	2.54 µm	100 µin	0.1 in	2.54 mm	Keying Slot	Right Angle Through Hole	2	Square	Black	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	Solder	0.76 Ám	30 Áin	Latch Lock/Eject Hooks	0.135 in	3.43 mm	50	Male Pin	5.08 mm	0.2 in	0.1 "	2.54 mm	1 A	Tin-Lead	250 VAC	105 ░C	-65 ░C	Board to Cable/Wire	Shrouded - 4 Wall	9.14 mm	0.36 in	All	Brass	Header
