TRF371109 Series

0.3 - 1.7 GHz Wide Bandwidth Integrated Direct Downconversion Receiver

Catalog

0.3 - 1.7 GHz Wide Bandwidth Integrated Direct Downconversion Receiver

Part	Frequency [Max]	Frequency [Min]	Supplied Contents	For Use With/Related Products	Mounting Type	Noise Figure	Function	Gain	LO Frequency [Max]	LO Frequency [Min]	Package / Case	RF Frequency [Min]	RF Frequency [Max]	Supplier Device Package	Current - Supply	P1dB	Voltage - Supply [Min]	Voltage - Supply [Max]

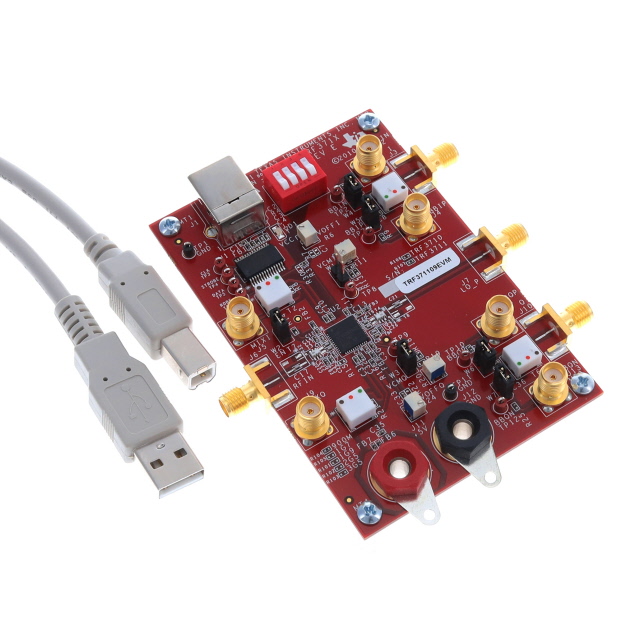

Texas Instruments TRF371109EVM	1.7 GHz	300 MHz	Board(s)	TRF371109
Texas Instruments TRF371109IRGZR					Surface Mount	17.5 dB	Downconverter	24 dB	1.7 GHz	300 MHz	48-VFQFN Exposed Pad	300 MHz	1.7 GHz	48-VQFN (7x7)	360 mA	3 dBV	4.5 V	5.5 V

Catalog

0.3 - 1.7 GHz Wide Bandwidth Integrated Direct Downconversion Receiver

Key Features

• Frequency Range: 300 MHz to 1700 MHzIntegrated Baseband Programmable Gain AmplifierOn-Chip Programmable Baseband FilterHigh Cascaded IP3: 27 dBm at 900 MHzHigh IP2: 68 dBm at 900 MHzHardware and Software Power DownThree-Wire Serial InterfaceSingle Supply: 4.5-V to 5.5-V OperationSilicon Germanium TechnologyAPPLICATIONSMulticarrier Wireless InfrastructureWiMAXHigh-Linearity Direct-Downconversion ReceiverLTE (Long Term Evolution)All other trademarks are the property of their respective owners.Frequency Range: 300 MHz to 1700 MHzIntegrated Baseband Programmable Gain AmplifierOn-Chip Programmable Baseband FilterHigh Cascaded IP3: 27 dBm at 900 MHzHigh IP2: 68 dBm at 900 MHzHardware and Software Power DownThree-Wire Serial InterfaceSingle Supply: 4.5-V to 5.5-V OperationSilicon Germanium TechnologyAPPLICATIONSMulticarrier Wireless InfrastructureWiMAXHigh-Linearity Direct-Downconversion ReceiverLTE (Long Term Evolution)All other trademarks are the property of their respective owners.

Description

The TRF371109 is a highly linear direct-conversion quadrature receiver. The TRF371109 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable gain amplifiers allow adjustment of the output signal level without the need for external variable gain (attenuator) devices. The TRF371109 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm VQFN package, the TRF371109 provides the smallest and most integrated receiver solution available for high-performance equipment. The TRF371109 is a highly linear direct-conversion quadrature receiver. The TRF371109 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable gain amplifiers allow adjustment of the output signal level without the need for external variable gain (attenuator) devices. The TRF371109 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm VQFN package, the TRF371109 provides the smallest and most integrated receiver solution available for high-performance equipment.
