NR Series

Catalog

NR-3.5 2*3P BLACK WITHOUT FLANG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Color	Contact Material	Housing Material	Insulation Height	Insulation Height	Type	Current - UL	Contact Mating Finish	Mounting Type	Positions Per Level	Number of Positions	Header Orientation	Pitch [x]	Pitch [x]	Termination Style	Contact Tail Length	Contact Tail Length	Number of Levels	Material Flammability Rating
Amphenol Anytek NR0611000000G	-45 °C	65 °C	300 V	Black	Copper	Liquid Crystal Polymer (LCP)	10 mm	0.394 "	Header Male Pins Shrouded (4 Side)	5.5 A	Tin	Through Hole	3	6	Vertical	3.5 mm	0.138 in	Solder	0.079 in	2 mm	2	UL94 V-0

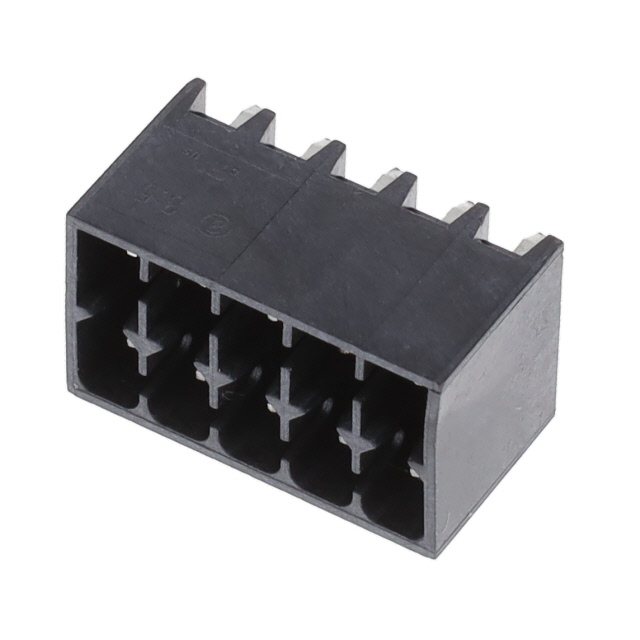

Amphenol Anytek NR10110000G0G	-45 °C	65 °C	300 V	Black	Copper	Liquid Crystal Polymer (LCP)	10 mm	0.394 "	Header Male Pins Shrouded (4 Side)	5.5 A	Tin	Through Hole	5	10	Vertical	3.5 mm	0.138 in	Solder	0.079 in	2 mm	2	UL94 V-0
