146500 Series

Catalog

BOARD STACKING CONNECTOR, 10 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, BLACK INSULATOR

Part	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Row Spacing [x]	Row Spacing	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Color	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Length - Overall Pin	Length - Overall Pin	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Termination
TE Connectivity Raychem Cable Protection 5-146500-5	0.1 "	2.54 mm	Gold	0.1 in	2.54 mm	Through Hole	0.7 in	17.78 mm	10	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	1.13 in	28.7 mm	0.38 Ám	15 Áin	Solder
TE Connectivity Raychem Cable Protection 6-146500-3	0.1 "	2.54 mm	Gold	0.1 in	2.54 mm	Through Hole	0.7 in	17.78 mm	26	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	1.13 in	28.7 mm	0.38 Ám	15 Áin	Solder
TE Connectivity Raychem Cable Protection 6-146500-6	0.1 "	2.54 mm	Gold	0.1 in	2.54 mm	Through Hole	0.7 in	17.78 mm		Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	1.13 in	28.7 mm	0.38 Ám	15 Áin	Solder

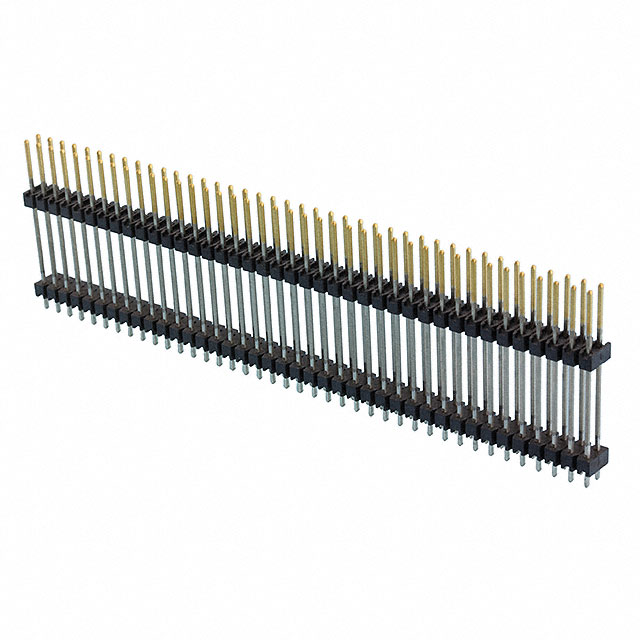

TE Connectivity Raychem Cable Protection 9-146500-0	0.1 "	2.54 mm	Gold	0.1 in	2.54 mm	Through Hole	0.7 in	17.78 mm	80	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	1.13 in	28.7 mm	0.38 Ám	15 Áin	Solder

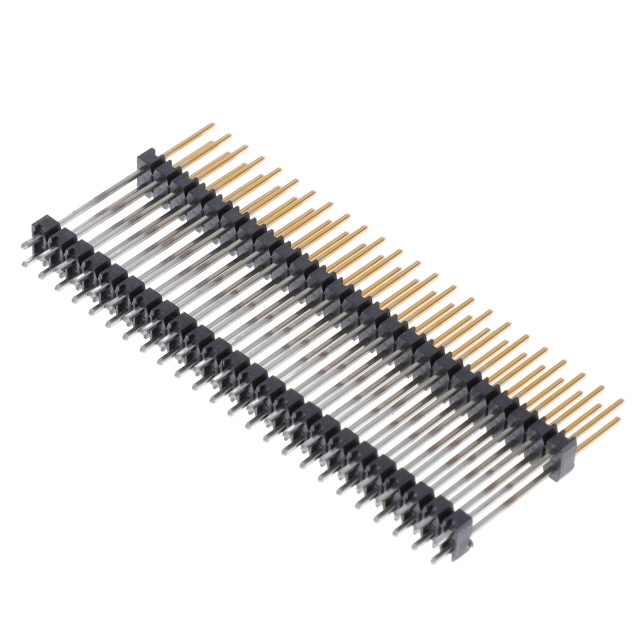

TE Connectivity Raychem Cable Protection 7-146500-4	0.1 "	2.54 mm	Gold	0.1 in	2.54 mm	Through Hole	0.7 in	17.78 mm	48	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	1.13 in	28.7 mm	0.38 Ám	15 Áin	Solder
