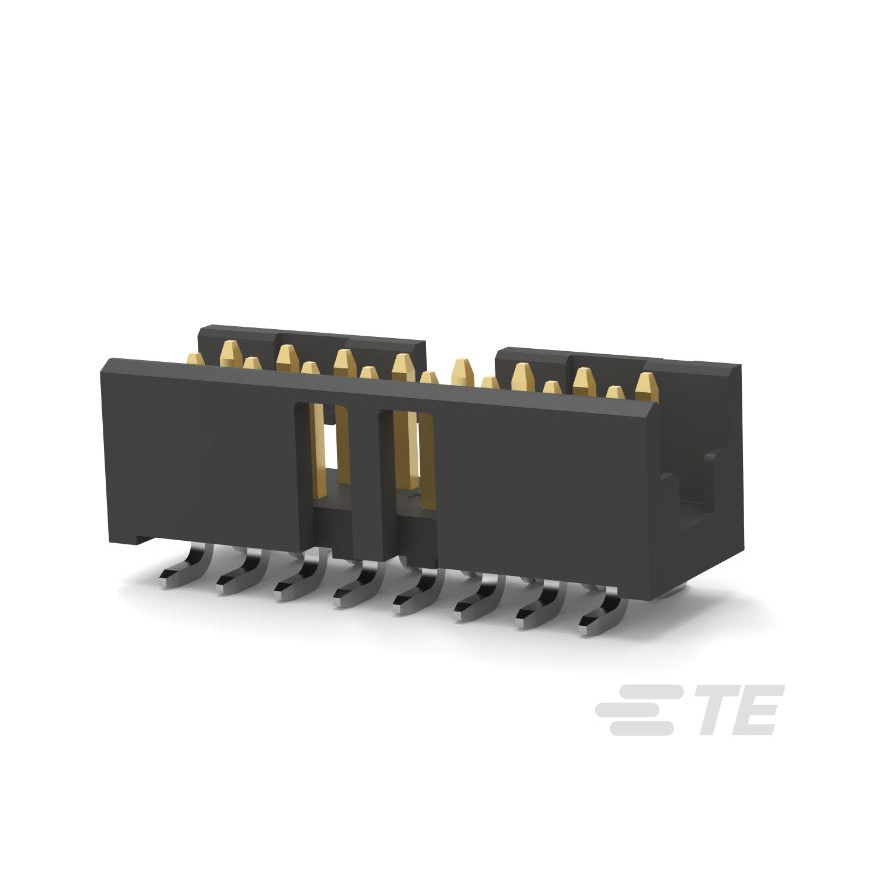

2823368 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

14P,2MM,SHRD HDR,DRVT,SMD,0.1AU,

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Insulation Material	Shrouding	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Termination	Voltage Rating	Current Rating (Amps)	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Features	Insulation Color	Contact Material	Mounting Type	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions

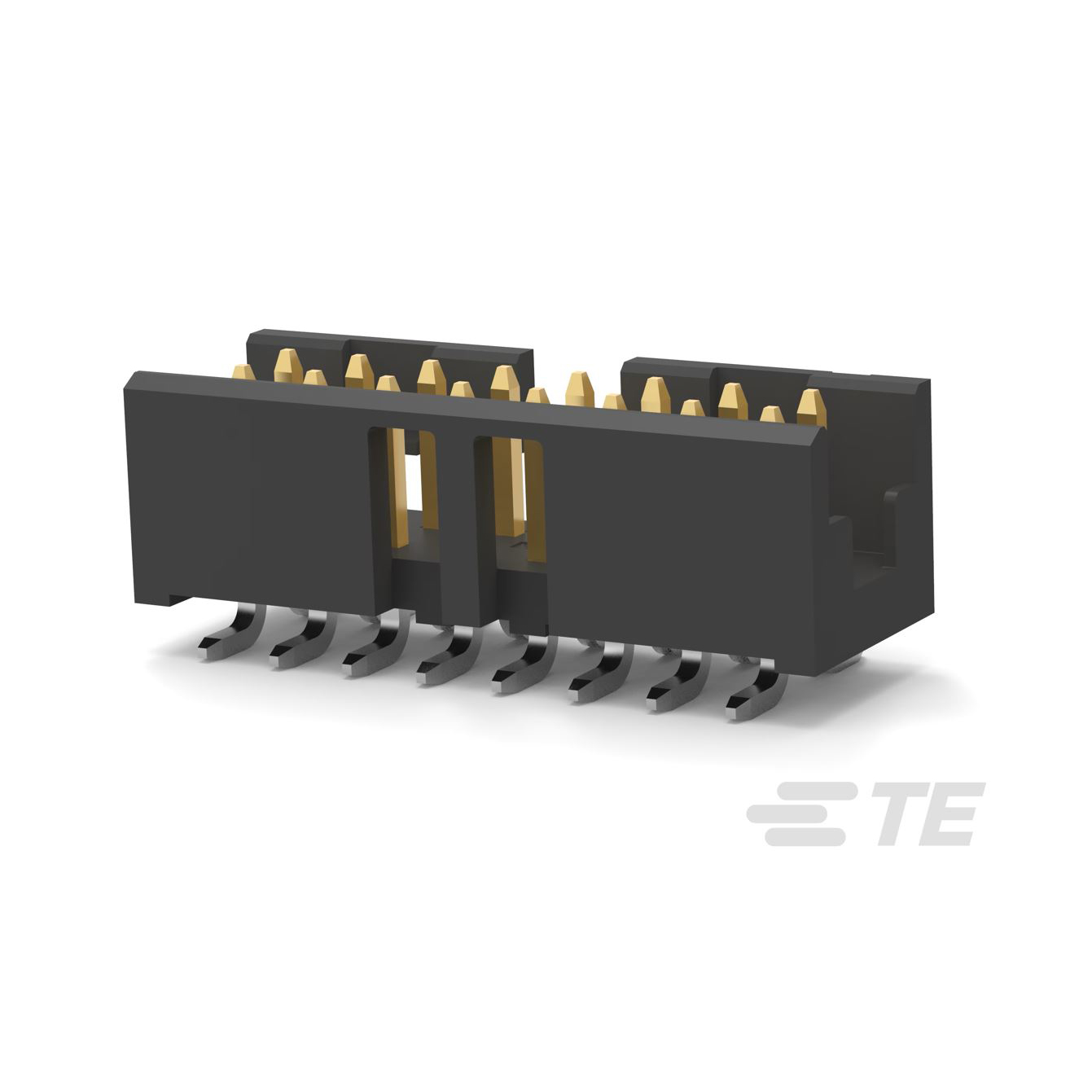

TE Connectivity Raychem Cable Protection 1-2823368-4	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	14	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm

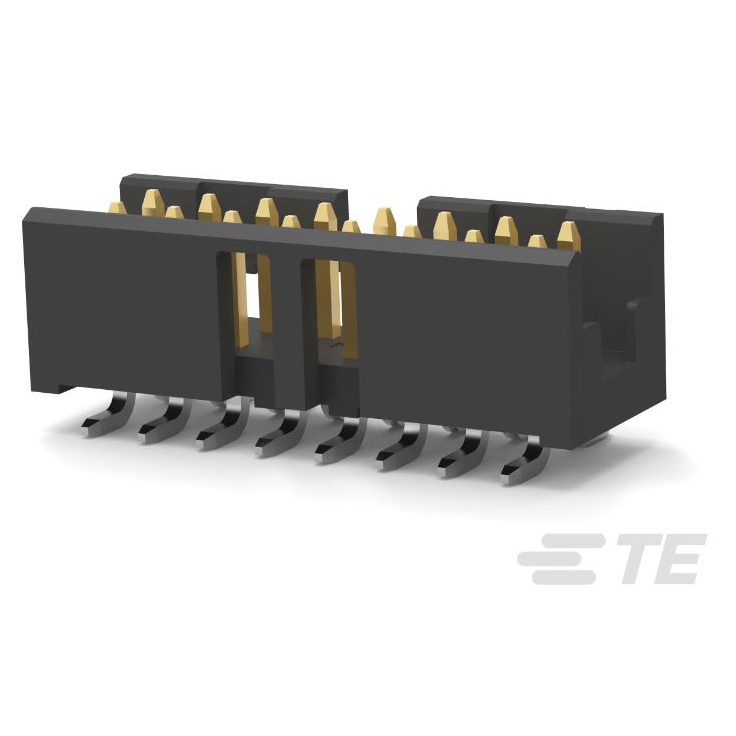

TE Connectivity Raychem Cable Protection 1-2823368-8	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	18	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm

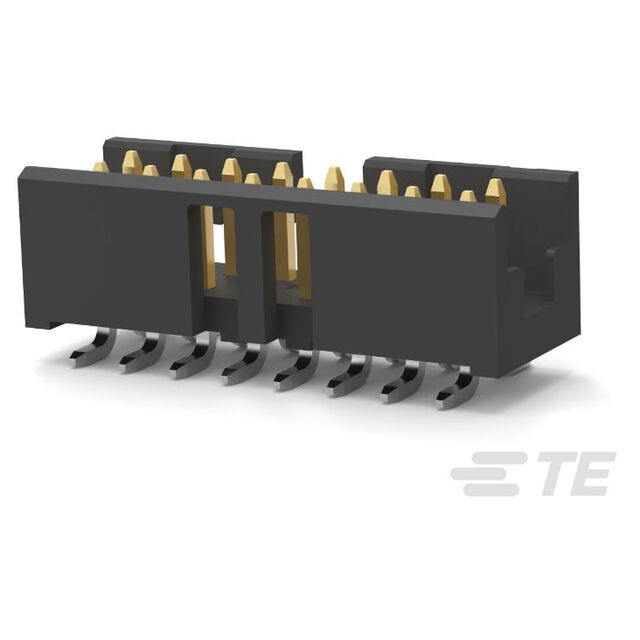

TE Connectivity Raychem Cable Protection 2-2823368-4	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	24	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-2823368-0	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	10	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm

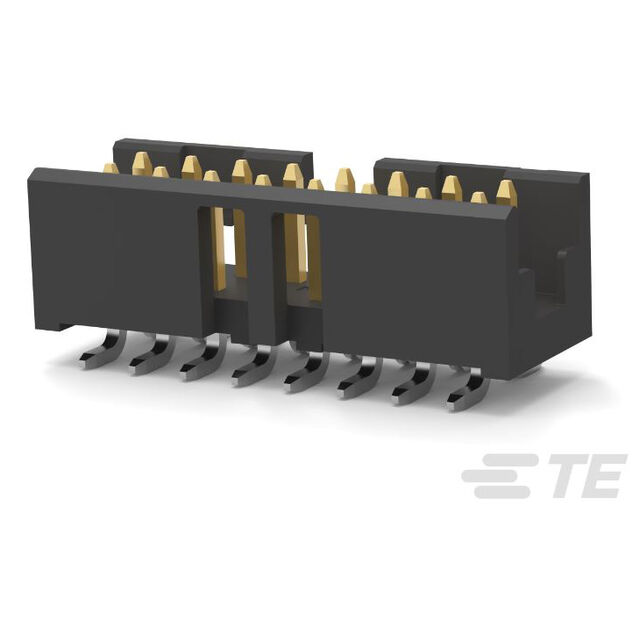

TE Connectivity Raychem Cable Protection 2-2823368-0	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	20	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm

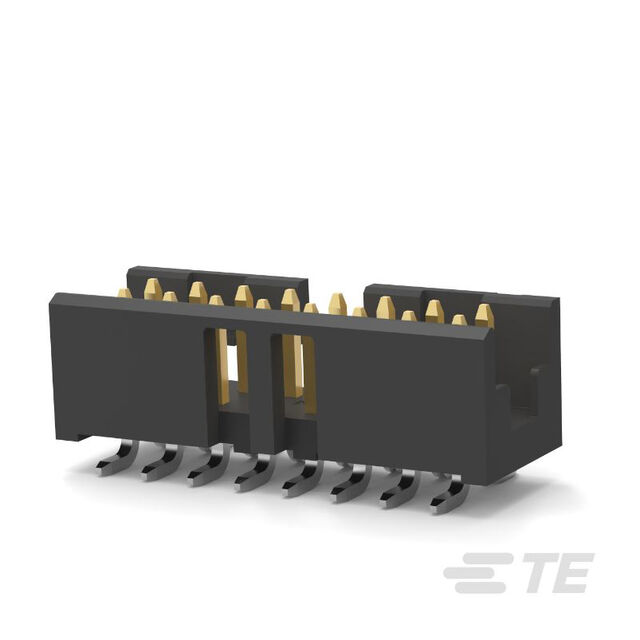

TE Connectivity Raychem Cable Protection 4-2823368-0	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	40	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm

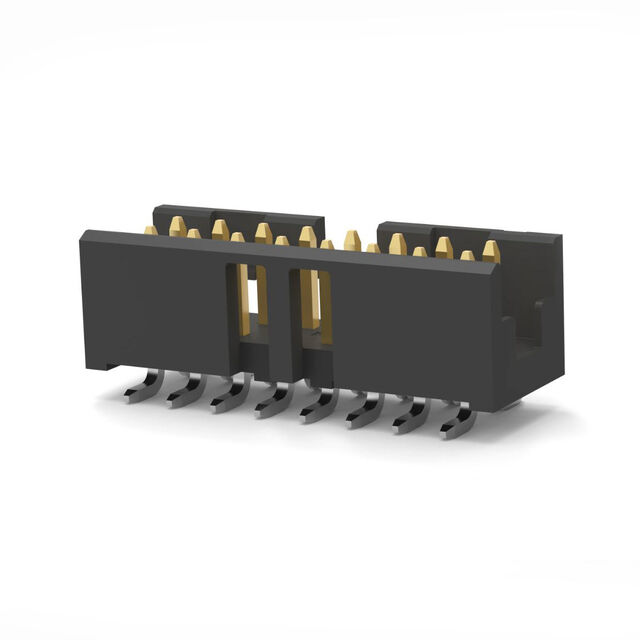

TE Connectivity Raychem Cable Protection 1-2823368-6	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in		UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm	16

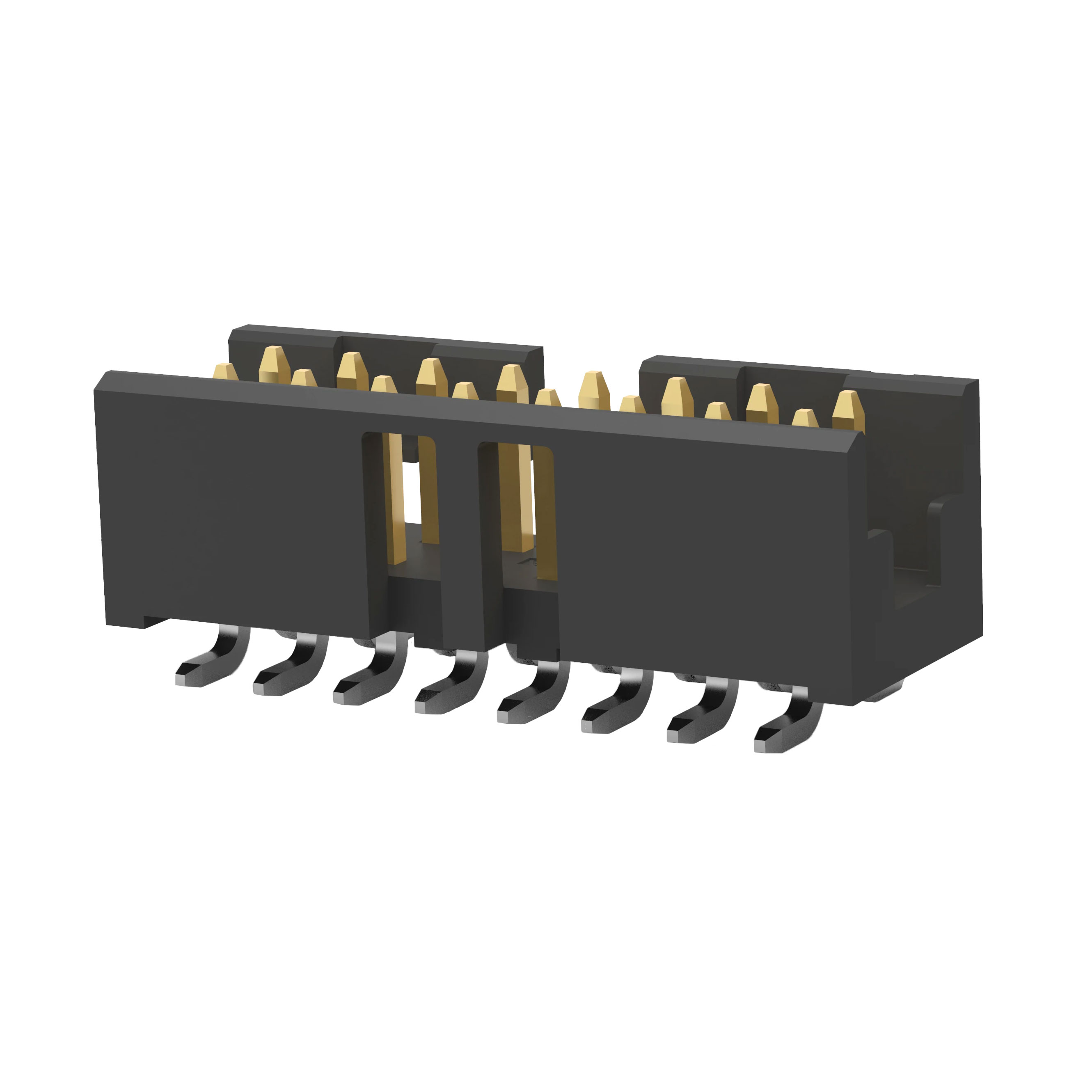

TE Connectivity Raychem Cable Protection 2823368-8	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	8	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2823368-6	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	6	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm

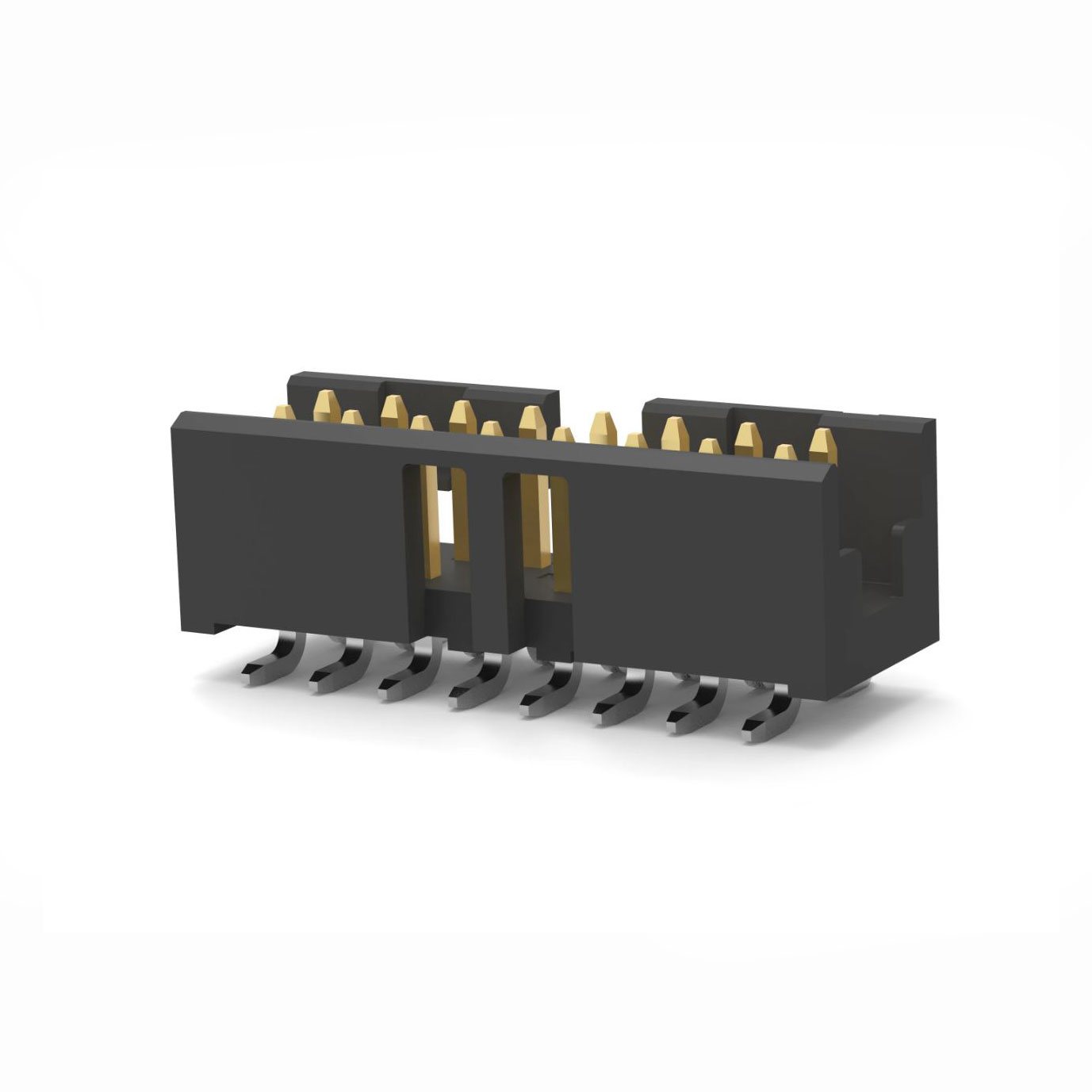

TE Connectivity Raychem Cable Protection 5-2823368-0	All	3.94 µin	0.1 µm	Header	157.5 Áin	4 Ám	4 mm	0.157 in	50	UL94 V-0	5.51 mm	0.217 in	Male Pin	Thermoplastic	Shrouded - 2 Wall	Tin	0.079 in	2 mm	2	Solder	125 VAC	2 A	Square	125 °C	-40 °C	Gold	Pick and Place	Black	Phosphor Bronze	Surface Mount	Detent Lock	0.079 in	2 mm
