BC4LH Series

Catalog

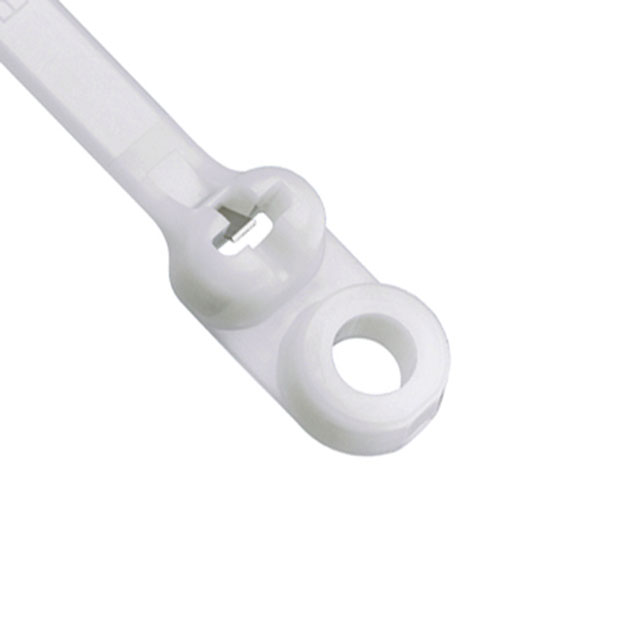

BARB TY* CLAMP TIE ROHS COMPLIANT: YES

Part	Tensile Strength	Tensile Strength	Shelf Life	Length - Actual [x]	Length - Actual	Features	Shelf Life Start	Material	Mounting Type	Width	Width [y]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Color	Length - Approximate
Panduit Corp BC4LH-S25-L0	120 lbs	54.43 kg	48 Months	1.292 ft	393.71 mm	Weather Resistant	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Mounting Hole Screw Mount	7 mm	0.275 in	4 in	101.6 mm	Locking Standard	Black	15.5 in
Panduit Corp BC4LH-S25-L	120 lbs	54.43 kg	48 Months	1.292 ft	393.71 mm		Date of Manufacture	Polyamide (PA66) Nylon 6/6	Mounting Hole Screw Mount	7 mm	0.275 in	4 in	101.6 mm	Locking Standard	Natural	15.5 in
Panduit Corp BC4LH-S25-TL0	120 lbs	54.43 kg	48 Months	1.292 ft	393.71 mm	Weather Resistant	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Mounting Hole Screw Mount	7 mm	0.275 in	4 in	101.6 mm	Locking Standard	Black	15.5 in
Panduit Corp BC4LH-S25-TL	120 lbs	54.43 kg	48 Months	1.292 ft	393.71 mm		Date of Manufacture	Polyamide (PA66) Nylon 6/6	Mounting Hole Screw Mount	7 mm	0.275 in	4 in	101.6 mm	Locking Standard	Natural	15.5 in
