2823406 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

30P,2MM,PL HDR,DRVT,2.8,SN,TB

Part	Fastening Type	Voltage Rating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Connector Type	Contact Finish - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Termination	Mounting Type	Style	Contact Shape	Number of Positions

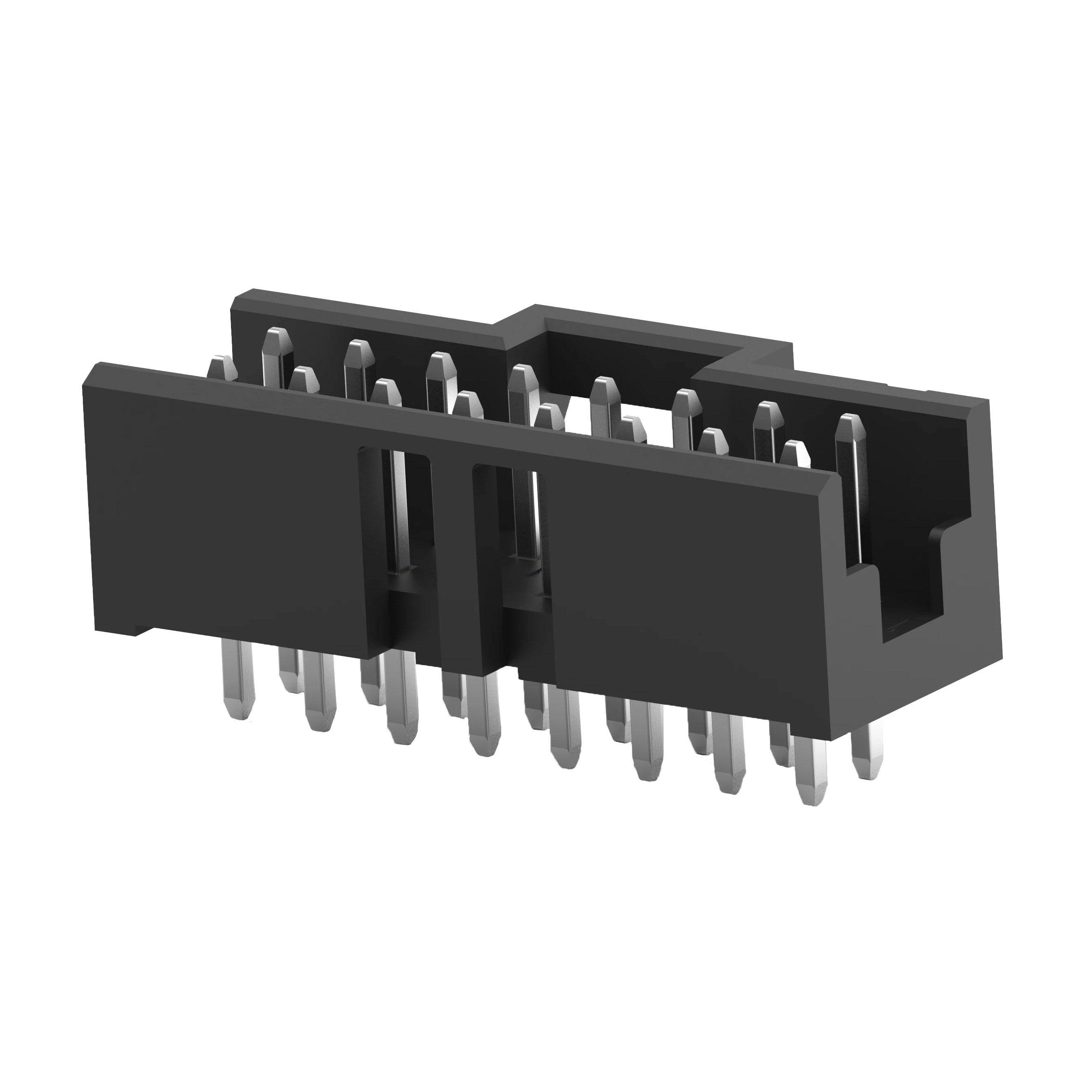

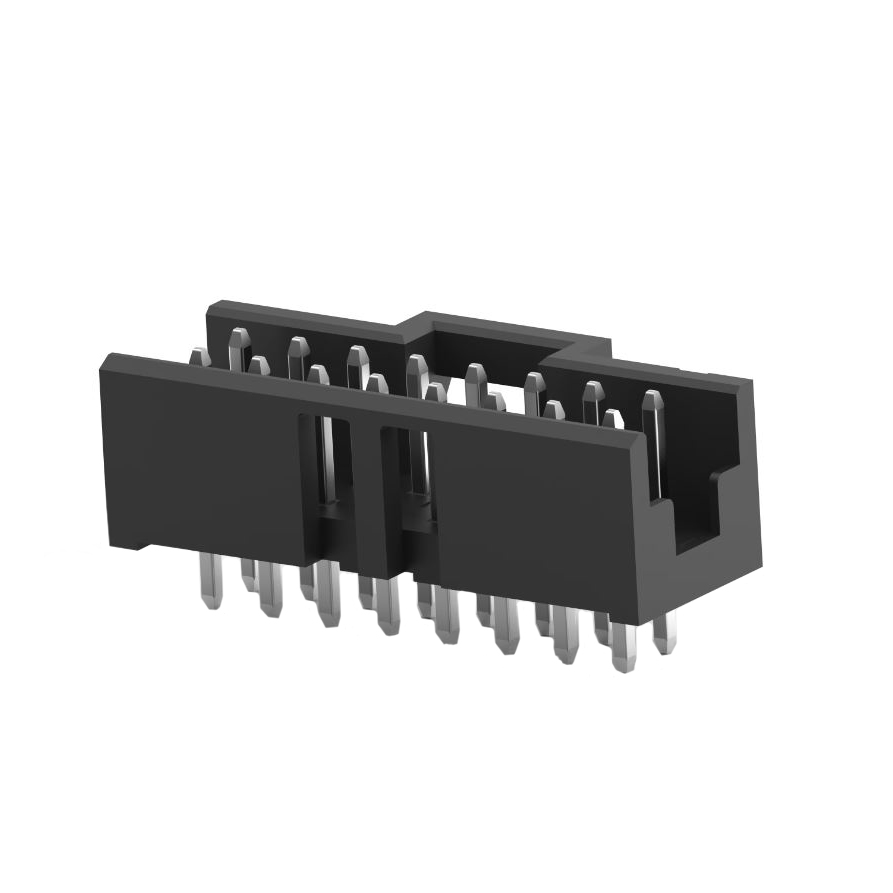

TE Connectivity Raychem Cable Protection 3-2823406-0	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	30	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square
TE Connectivity Raychem Cable Protection 3-2823406-2	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All		2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square

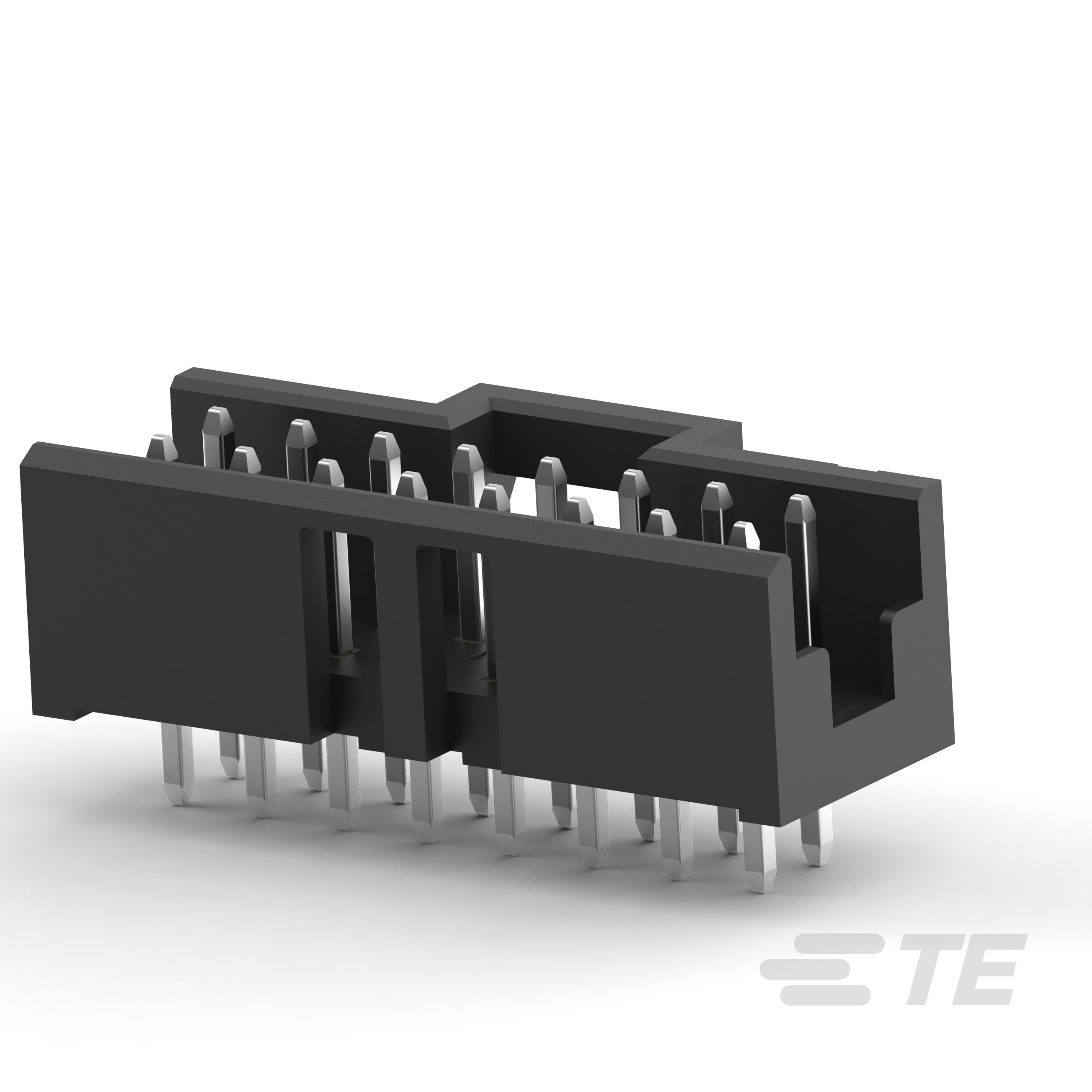

TE Connectivity Raychem Cable Protection 2-2823406-0	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	20	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square

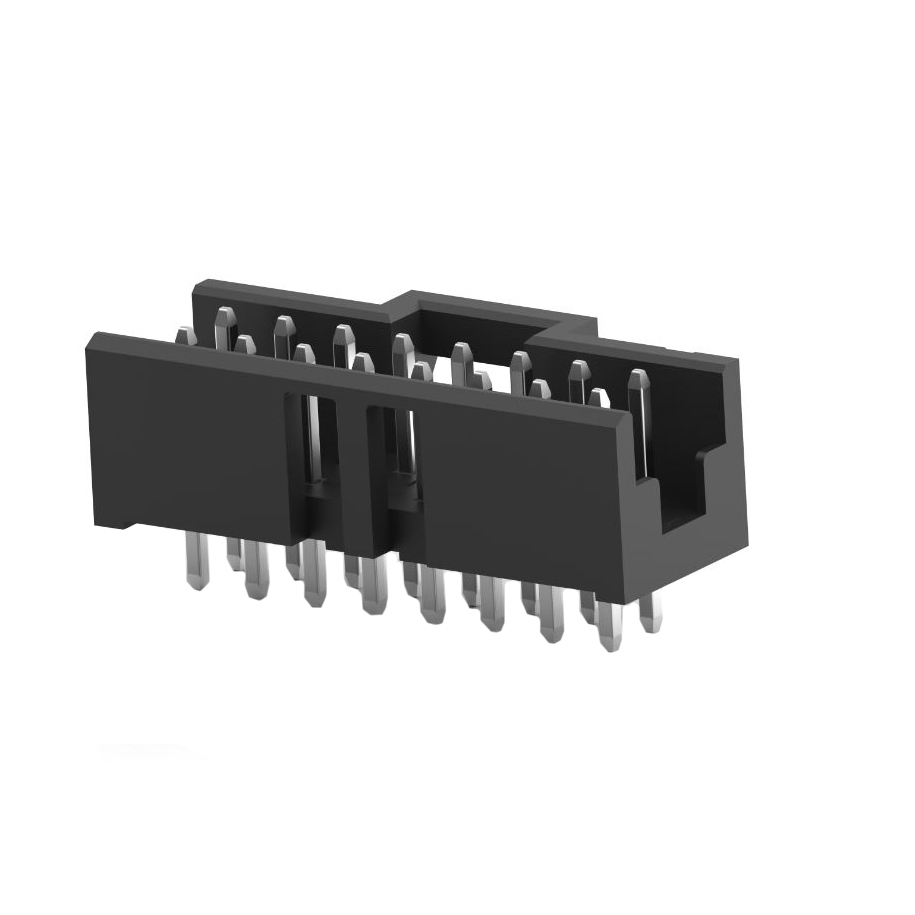

TE Connectivity Raychem Cable Protection 1-2823406-8	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	18	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square

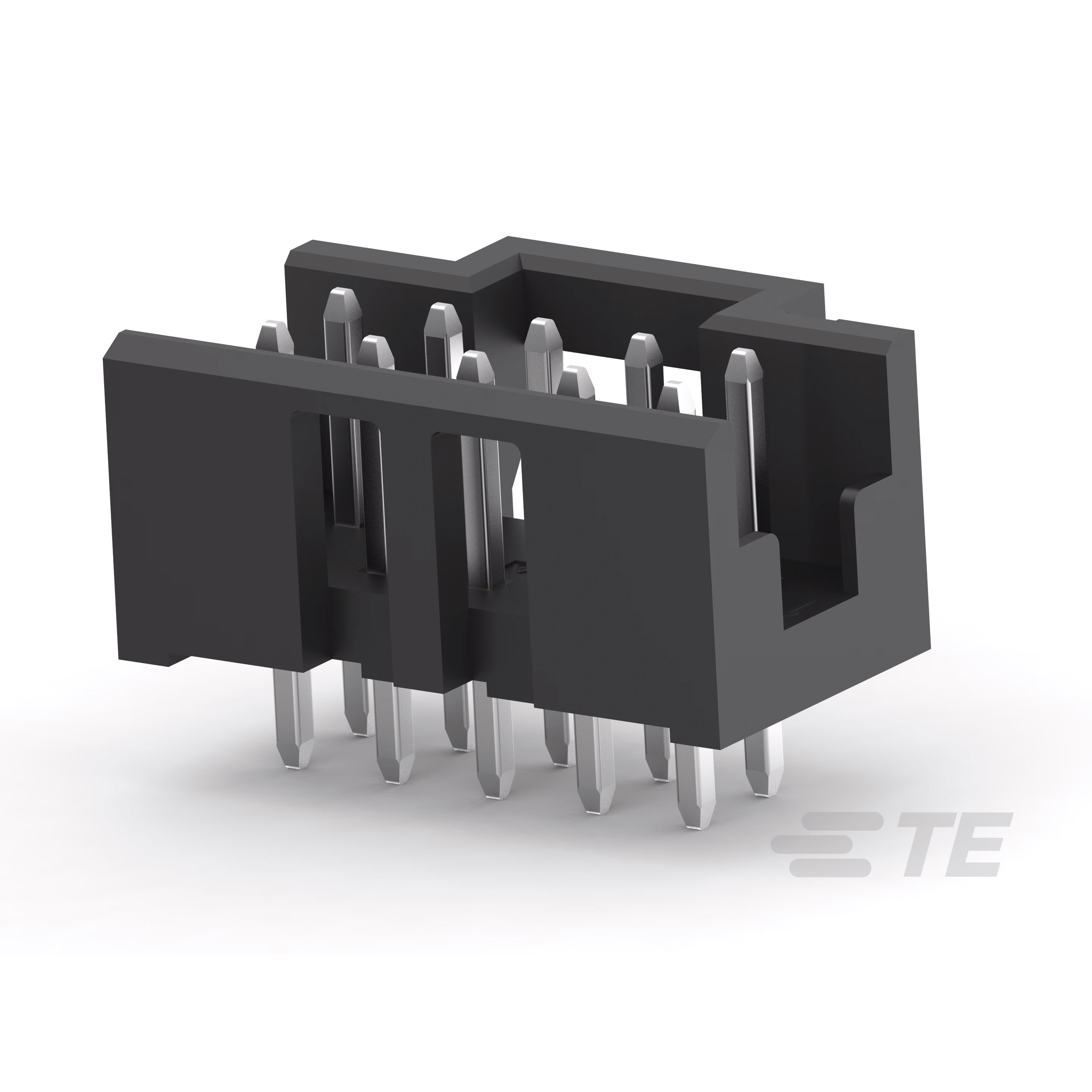

TE Connectivity Raychem Cable Protection 1-2823406-0	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	10	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square

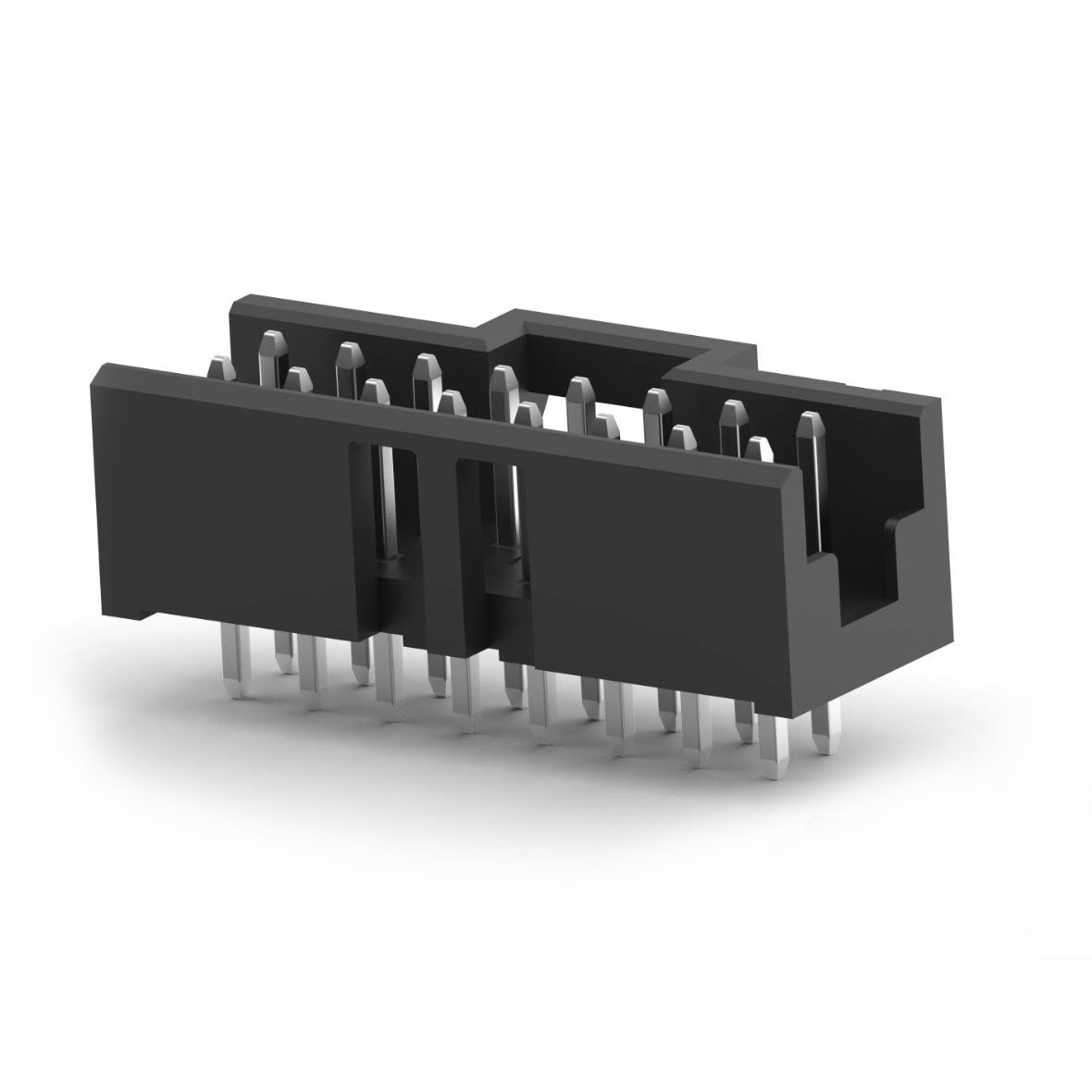

TE Connectivity Raychem Cable Protection 2-2823406-4	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	24	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square

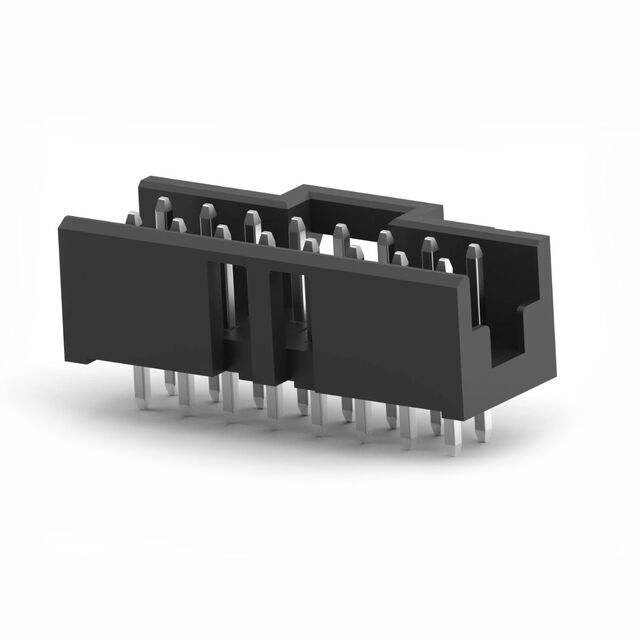

TE Connectivity Raychem Cable Protection 1-2823406-6	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All		2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square	16

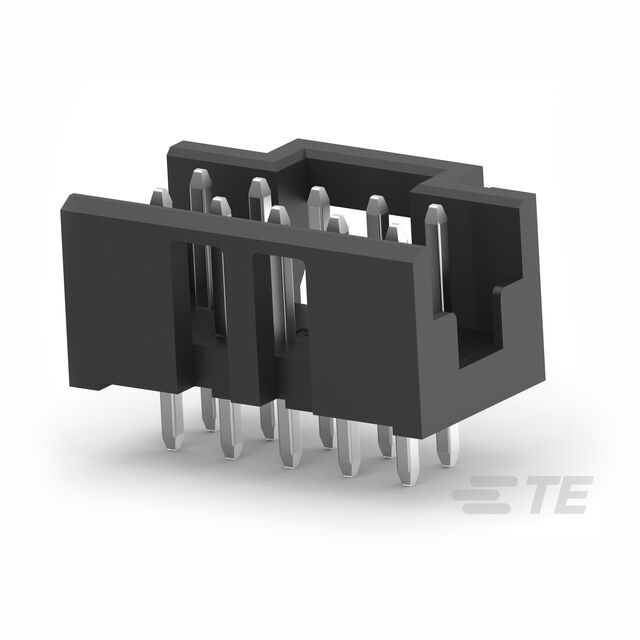

TE Connectivity Raychem Cable Protection 1-2823406-2	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	12	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square

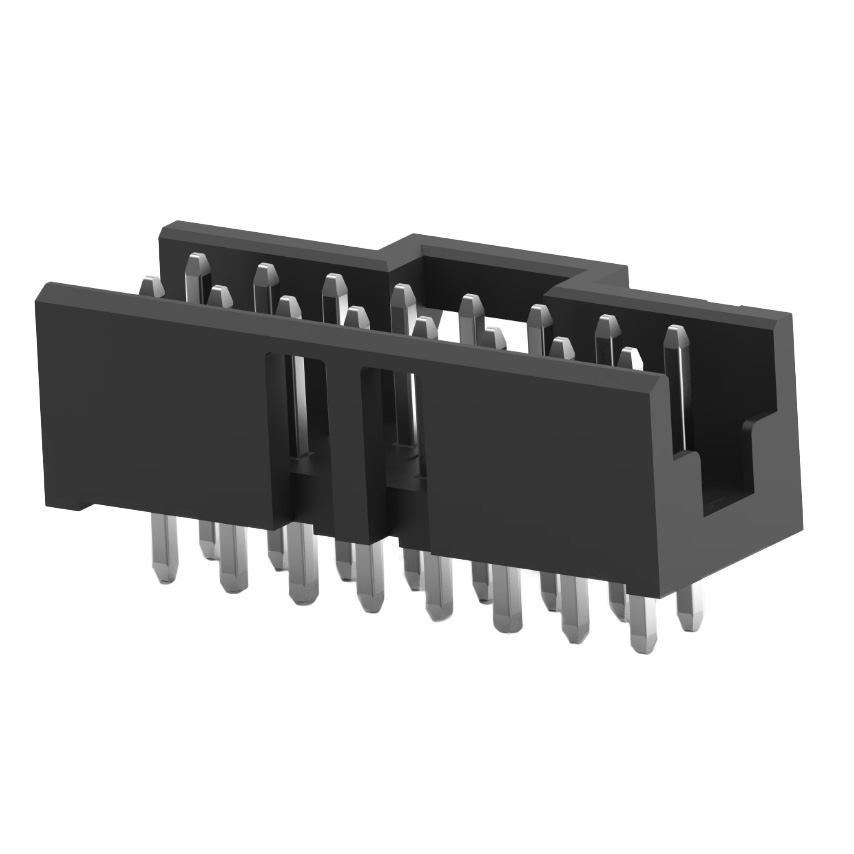

TE Connectivity Raychem Cable Protection 2-2823406-6	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	26	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square

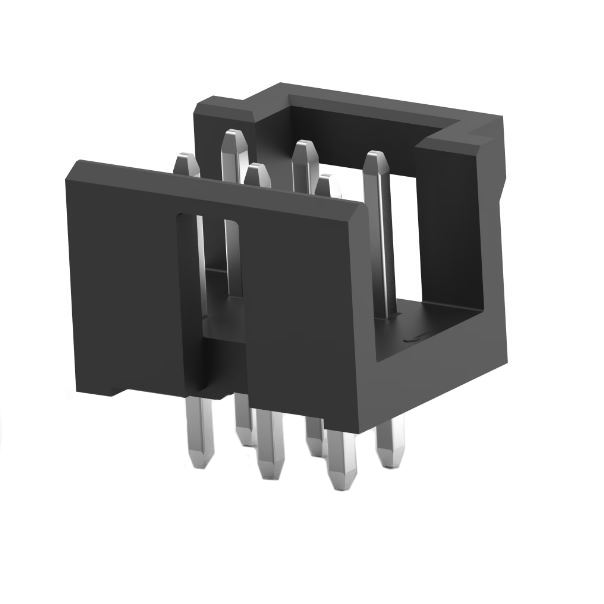

TE Connectivity Raychem Cable Protection 2823406-8	Latch Holder	125 VAC	Thermoplastic	118.1 µin	3 µm	0.11 in	2.8 mm	0.079 in	2 mm	Shrouded - 2 Wall	Header	Tin	5.51 mm	0.217 in	Male Pin	-40 °C	105 ░C	Black	Phosphor Bronze	0.079 in	2 mm	2	4 mm	0.157 in	0.3 µm	12 µin	All	8	2 A	UL94 V-0	Solder	Through Hole	Board to Board Cable	Square
