BAF1-2 Series

Catalog

SWITCH SNAP ACTION SPDT 20A 125V

Part	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Circuit	Release Force	Mounting Type	Operating Force	Features	Actuator Type	Current Rating (Amps)	Operating Position	Operating Position	Overtravel	Overtravel	Differential Travel	Differential Travel	Pretravel	Pretravel
Honeywell Sensing and Productivity Solutions BAF1-2RN4-RH	On-Mom	125 VDC	125 V	Screw Terminal	SPDT	227 gf	Chassis Mount	907 gf	Actuator Mounted Right Side	Manual Palm Button	20 A 500 mA

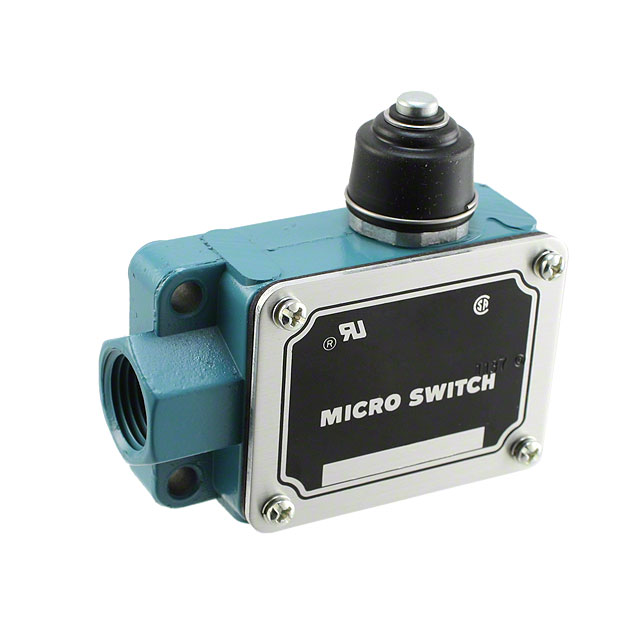

Honeywell Sensing and Productivity Solutions BAF1-2RN-RH	On-Mom	125 VDC	125 V	Screw Terminal	SPDT	227 gf	Chassis Mount	1134 gf	Actuator Mounted Right Side	Round (Pin Plunger)	20 A 500 mA	2.094 "	53.2 mm	5.6 mm	0.219 in	0.25 mm	0.01 in

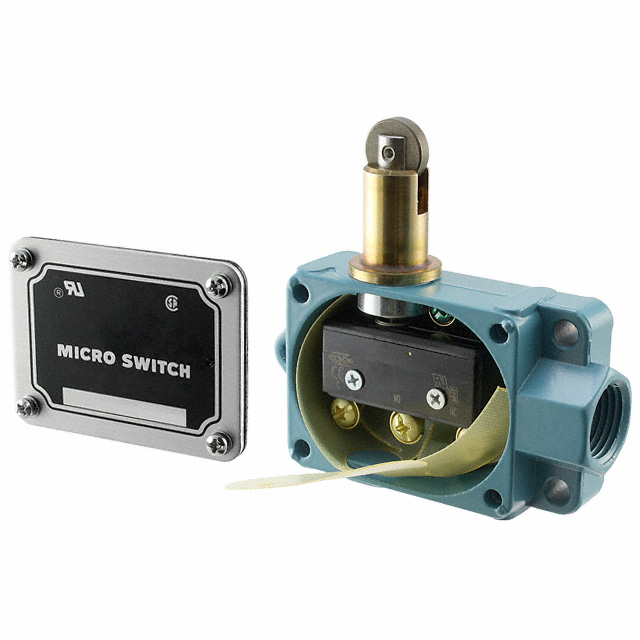

Honeywell Sensing and Productivity Solutions BAF1-2RQN8-LH	On-Mom	125 VDC	125 V	Screw Terminal	SPDT	907 gf	Chassis Mount	3629 gf	Actuator Mounted Left Side	Roller Plunger	20 A 500 mA	2.547 in	64.7 mm	4.75 mm	0.187 in	0.2 mm	0.008 in	3.2 mm	0.125 in
