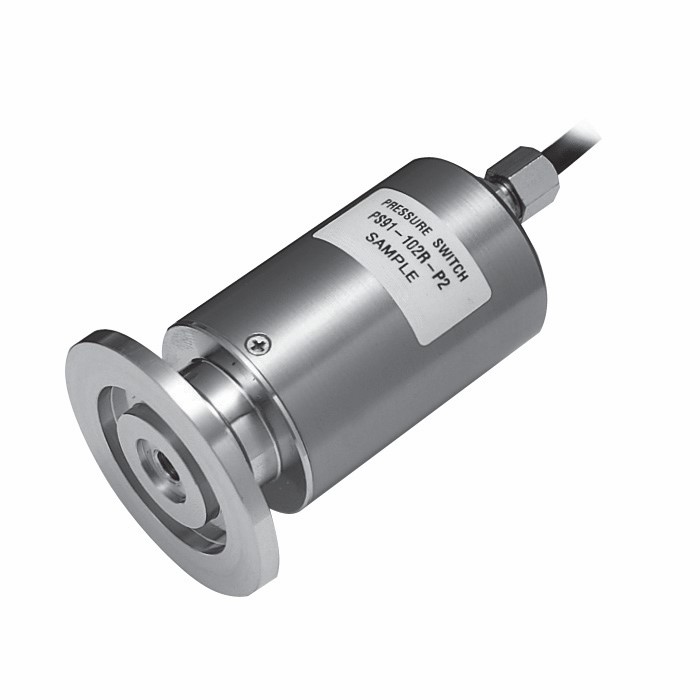

PS91-102 Series

Manufacturer: Nidec Components Corporation

Catalog

PRESSURE SWITCHES

Part	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Maximum Pressure	Maximum Pressure	Pressure Type	Package / Case	Port Size	Port Size	Port Size	Output Type	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Port Style	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]
Nidec Components Corporation PS91-102V-P2K2	3 %	80 °C	-20 ░C	Cable	29.01 PSI	200 kPa	Gauge	Cylinder	10 mm	Male Tube	0.39 in	PNP - Open Collector	Industrial Automation	12 VDC	24 V	Temperature Compensated	Threaded	14.5 PSI	100 kPa	-10 kPa	-1.45 PSI
Nidec Components Corporation PS91-102V-P2VC	3 %	80 °C	-20 ░C	Cable	29.01 PSI	200 kPa	Gauge	Cylinder				PNP - Open Collector	Industrial Automation	12 VDC	24 V	Temperature Compensated	Threaded	14.5 PSI	100 kPa	-10 kPa	-1.45 PSI
Nidec Components Corporation PS91-102V-P1VC	3 %	80 °C	-20 ░C	Cable	29.01 PSI	200 kPa	Gauge	Cylinder				PNP - Open Collector	Industrial Automation	12 VDC	24 V	Temperature Compensated	Threaded	14.5 PSI	100 kPa	-10 kPa	-1.45 PSI
Nidec Components Corporation PS91-102V-N2K2	3 %	80 °C	-20 ░C	Cable	29.01 PSI	200 kPa	Gauge	Cylinder	10 mm	Male Tube	0.39 in	NPN - Open Collector	Industrial Automation	12 VDC	24 V	Temperature Compensated	Threaded	14.5 PSI	100 kPa	-10 kPa	-1.45 PSI
Nidec Components Corporation PS91-102V-N2VC	3 %	80 °C	-20 ░C	Cable	29.01 PSI	200 kPa	Gauge	Cylinder				NPN - Open Collector	Industrial Automation	12 VDC	24 V	Temperature Compensated	Threaded	14.5 PSI	100 kPa	-10 kPa	-1.45 PSI
Nidec Components Corporation PS91-102V-N1VC	3 %	80 °C	-20 ░C	Cable	29.01 PSI	200 kPa	Gauge	Cylinder				NPN - Open Collector	Industrial Automation	12 VDC	24 V	Temperature Compensated	Threaded	14.5 PSI	100 kPa	-10 kPa	-1.45 PSI
