US1G Series

Catalog

SMA/1A/400V/ULTRAFAST REC. RECT./SMD/GP

Part	Capacitance @ Vr, F	Speed	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Supplier Device Package	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]
Panjit International Inc. US1G_R1_00001	17 pF	200 mA 500 ns	1 µA	Standard	Surface Mount	DO-214AC (SMA)	1 A	-55 °C	150 °C	50 ns	DO-214AC SMA	400 V	1.3 V

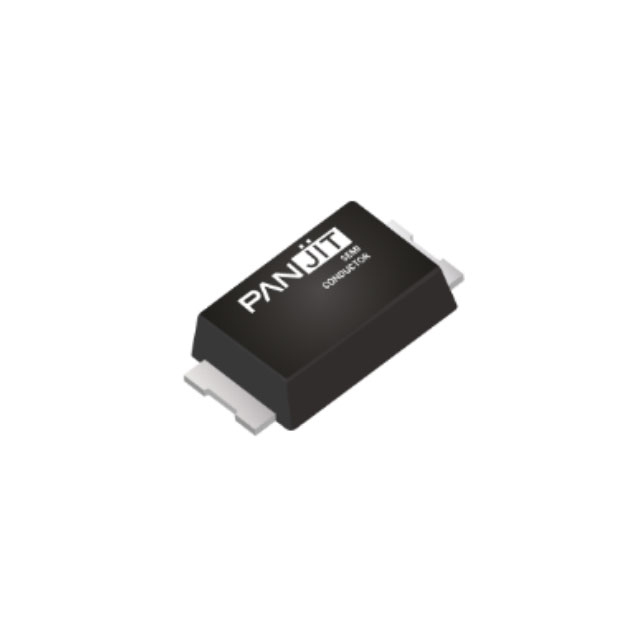

Panjit International Inc. US1GAFC_R1_00001	15 pF	200 mA 500 ns	1 µA	Standard	Surface Mount		1 A	-55 °C	150 °C	50 ns	DO-221AC SMA Flat Leads	400 V	1.4 V
