ACC30 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

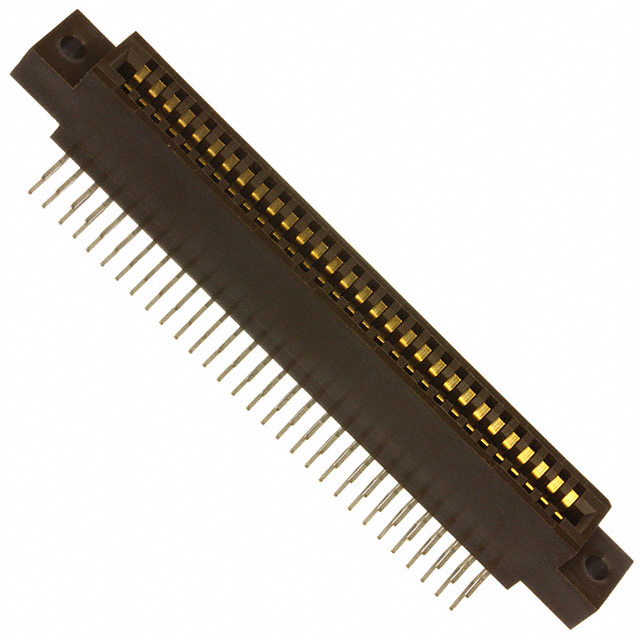

CONN EDGE DUAL FMALE 60POS 0.100
| Part | Material - Insulation | Pitch | Pitch | Termination | Card Type | Gender | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions/Bay/Row | Color | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Flange Feature | Card Thickness | Card Thickness | Contact Finish | Number of Positions | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Solder | Non Specified - Dual Edge | Female | Full Bellows | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Green | Dual | 150 °C | -65 ░C | Through Hole | 4-40 Threaded Insert Top Mount Opening | 2.36 mm | 0.093 " | Gold | 60 | 2 | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Wire Wrap | Non Specified - Dual Edge | Female | Cantilever | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Dual | 150 °C | -65 ░C | Through Hole | Side Mount Opening Unthreaded | 2.36 mm | 0.093 " | Gold | 60 | 2 | 0.125 " | 3.18 mm | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Solder | Non Specified - Dual Edge | Female | Loop Bellows | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Dual | 150 °C | -65 ░C | Right Angle Through Hole | Side Mount Opening Unthreaded | 1.57 mm | 0.062 in | Gold | 60 | 2 | 0.125 " | 3.18 mm | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Solder | Non Specified - Dual Edge | Female | Loop Bellows | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Brown | Dual | 150 °C | -65 ░C | Through Hole | Flush Mount Top Opening Unthreaded | 1.57 mm | 0.062 in | Gold | 60 | 2 | 0.125 " | 3.18 mm | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Solder | Non Specified - Dual Edge | Female | Full Bellows | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Green | Dual | 150 °C | -65 ░C | Board Edge Straddle Mount | 4-40 Threaded Insert Top Mount Opening | 1.57 mm | 0.062 in | Gold | 60 | 2 | Card Extender | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Solder | Non Specified - Dual Edge | Female | Cantilever | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Dual | 150 °C | -65 ░C | Board Edge Straddle Mount | 2.36 mm | 0.093 " | Gold | 60 | 2 | 0.125 " | 3.18 mm | Card Extender | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Wire Wrap | Non Specified - Dual Edge | Female | Loop Bellows | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Brown | Dual | 150 °C | -65 ░C | Through Hole | Flush Mount Top Opening Unthreaded | 1.57 mm | 0.062 in | Gold | 60 | 2 | 0.125 " | 3.18 mm | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Solder | Non Specified - Dual Edge | Female | Cantilever | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Dual | 150 °C | -65 ░C | Through Hole | 2.36 mm | 0.093 " | Gold | 60 | 2 | |||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Wire Wrap | Non Specified - Dual Edge | Female | Cantilever | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Dual | 150 °C | -65 ░C | Through Hole | 4-40 Threaded Insert Top Mount Opening | 1.57 mm | 0.062 in | Gold | 60 | 2 | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.1 " | 2.54 mm | Solder | Non Specified - Dual Edge | Female | Cantilever | 30 Áin | 0.76 Ám | Beryllium Copper | 30 | Dual | 150 °C | -65 ░C | Right Angle Through Hole | Side Mount Opening Unthreaded | 2.36 mm | 0.093 " | Gold | 60 | 2 | 0.125 " | 3.18 mm |
