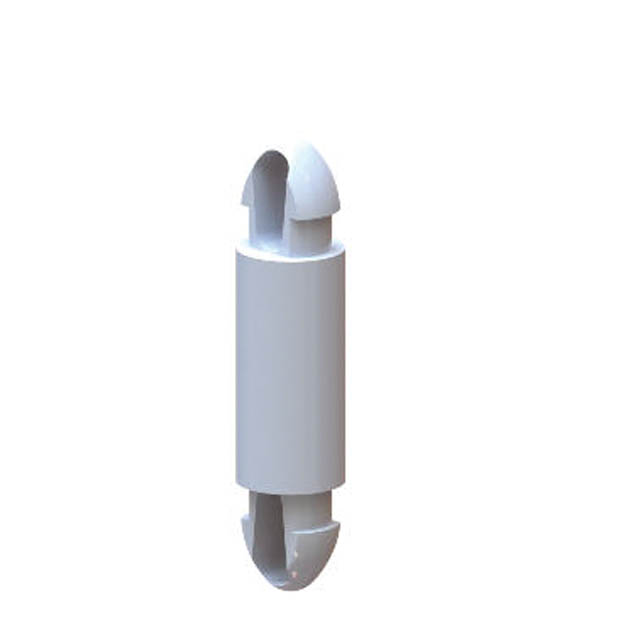

MDLSP2 Series

Catalog

BRD SPT SNAP LOCK NYLON 22MM

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Mounting Type	Between Board Height	Between Board Height	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall [x]	Length - Overall [x]	Material	Holding Type	Between Board Height	Length - Overall [custom]	Length - Overall [custom]	Between Board Height [z]	Between Board Height [z]	Between Board Height [custom]	Between Board Height [custom]	Length - Overall	Length - Overall

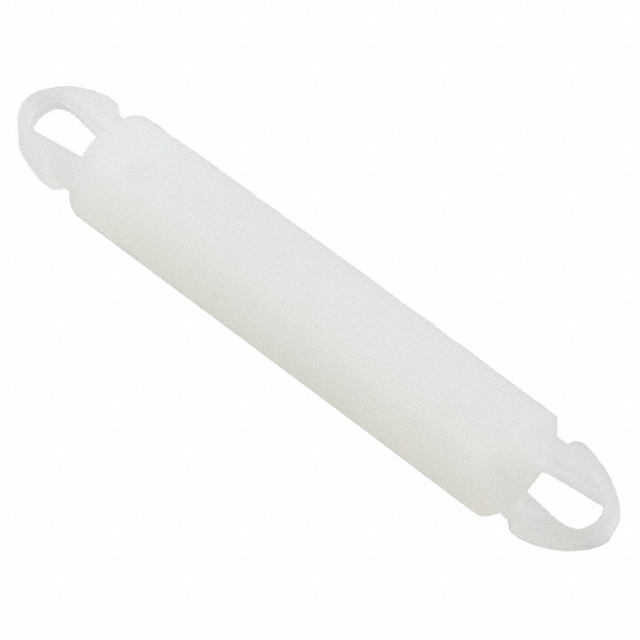

Essentra Components MDLSP2-22M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock	0.866 in	22 mm	3.5 mm	0.138 in	1.65 mm	0.065 in	1.232 in	31.3 mm	Nylon	Snap Lock
Essentra Components MDLSP2-04M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock	0.157 in	4 mm	3.5 mm	0.138 in	1.65 mm	0.065 in	0.524 in	13.3 mm	Nylon	Snap Lock

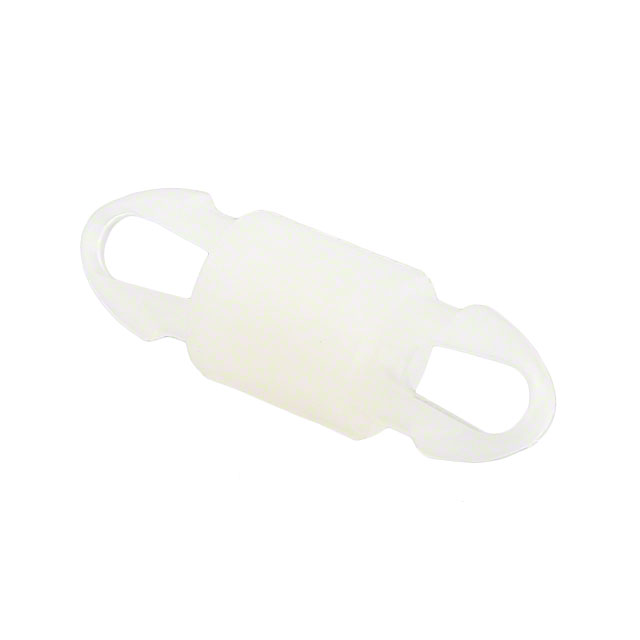

Essentra Components MDLSP2-05M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock		0.197 in	3.5 mm	0.138 in	1.65 mm	0.065 in	0.563 in	14.3 mm	Nylon	Snap Lock	5 mm
Essentra Components MDLSP2-03M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock			3.5 mm	0.138 in	1.65 mm	0.065 in			Nylon	Snap Lock		0.484 in	12.3 mm	0.118 in	3 mm
Essentra Components MDLSP2-20M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock	0.787 "	20 mm	3.5 mm	0.138 in	1.65 mm	0.065 in	1.154 in	29.3 mm	Nylon	Snap Lock
Essentra Components MDLSP2-02M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock			3.5 mm	0.138 in	1.65 mm	0.065 in	0.445 in	11.3 mm	Nylon	Snap Lock						2 mm	0.079 in
Essentra Components MDLSP2-16M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock			3.5 mm	0.138 in	1.65 mm	0.065 in	0.996 in	25.3 mm	Nylon	Snap Lock				0.63 in	16 mm
Essentra Components MDLSP2-18M-01	3.5 mm	0.138 "	1.65 mm	0.065 in	Snap Lock			3.5 mm	0.138 in	1.65 mm	0.065 in			Nylon	Snap Lock				0.709 in	18 mm			1.075 in	27.3 mm
