RR9LZ3000 Series

Catalog

AC/DC DSKTP/WALL ADPT 5V-20V 60W

Part	Form	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Cord Length	Cord Length	Efficiency	Approval Agency	Voltage - Output	Output Connector	Current - Output (Max)	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Applications	Region Utilized	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output (Max) [Max]

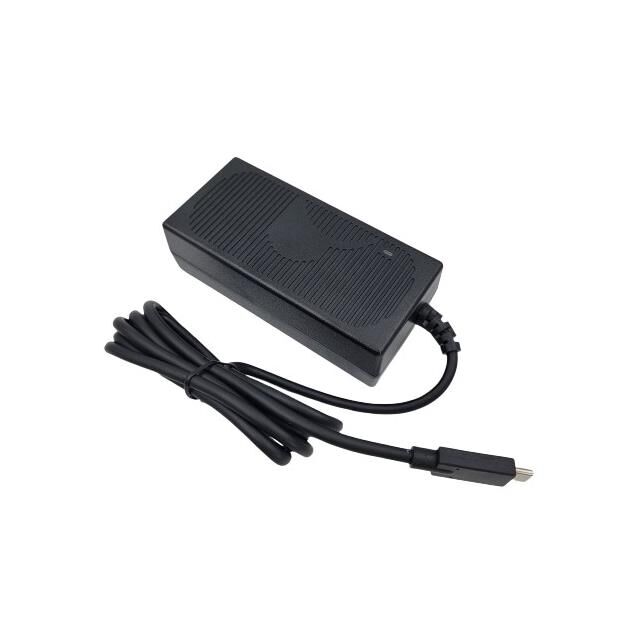

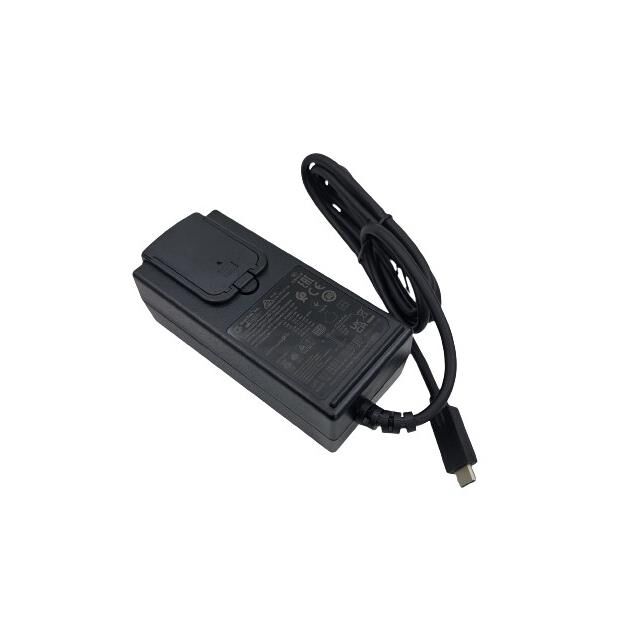

GlobTek, Inc. RR9LZ3000USBCG2(R6B)	Desktop Wall Mount	Cord Multi-Blade (Sold Separately)	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	60 W	1.5 m	59 in	CoC Tier 2 Level VI	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	5 V 5.8 V 9 V 12 V 15 V 20 V	USB C Power Delivery (PD)	3 A 3.6 A 4 A 4.4 A 4.6 A	75 mW	50 °C	-10 °C	264 VAC	90 VAC	1310 60601-1-11 60601-1-2 60950-1 62368-1	ITE (Commercial) Medical	International

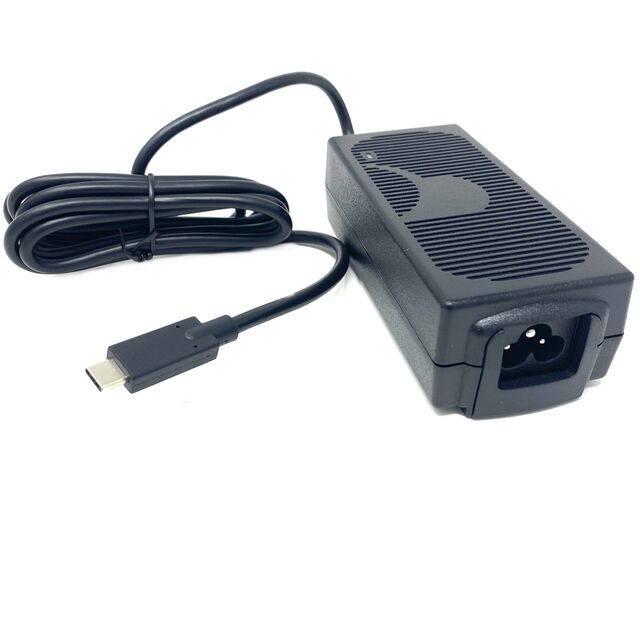

GlobTek, Inc. RR9LZ3000USBCPPS(R6B)	Desktop Wall Mount	Cord Multi-Blade (Sold Separately)	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	60 W	1.5 m	59 in	CoC Tier 1 Level VI	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	5 V 5.8 V 9 V 12 V 15 V 20 V	USB C USB C Power Delivery (PD)	3 A 3.6 A 4 A 4.4 A 4.6 A	75 mW	40 °C	-10 °C	264 VAC	90 VAC	60601-1 60950-1 62368-1	ITE (Commercial) Medical	International	3.6 V	11 V

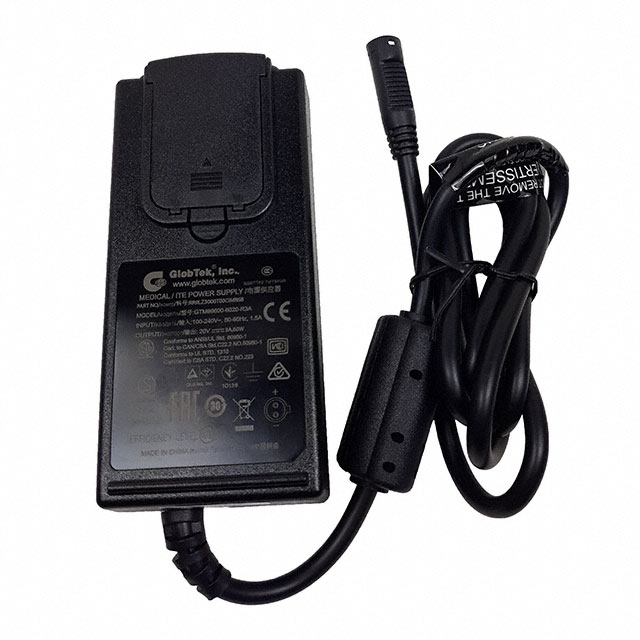

GlobTek, Inc. RR9LZ3000T00CIMR6B	Desktop Wall Mount	Cord Multi-Blade (Sold Separately)	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	60 W	1.2 m	47.2 in	Level VI	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	20 V	Barrel Plug Kit (1.3mm x 3.5mm		150 mW	40 °C	-20 ░C	264 VAC	90 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Household Appliances ITE (Commercial) Medical	International			3 A
